JBI Alpha-Doc Mk4 - Air Blower Unit Adjustment

Section 6 Page
6. Options
ALPHAM4/V1 SEPT 2011
3
6.3 Air Blower Unit
This system makes the separation of sheets easier. You must connect it onto
the black PVC tube, located inside the base on the left (operator side) of the
machine.
6.3.1 Adjusting of the blower level :
 Open the door of the confetti tray
 Turn the regulator (clockwise) to increase the pressure (from 0 to 1 bar)
NOTICE
The filter located under the manometer must always be clean and
free from water and oil. Check the filter before using and clean it
if necessary.

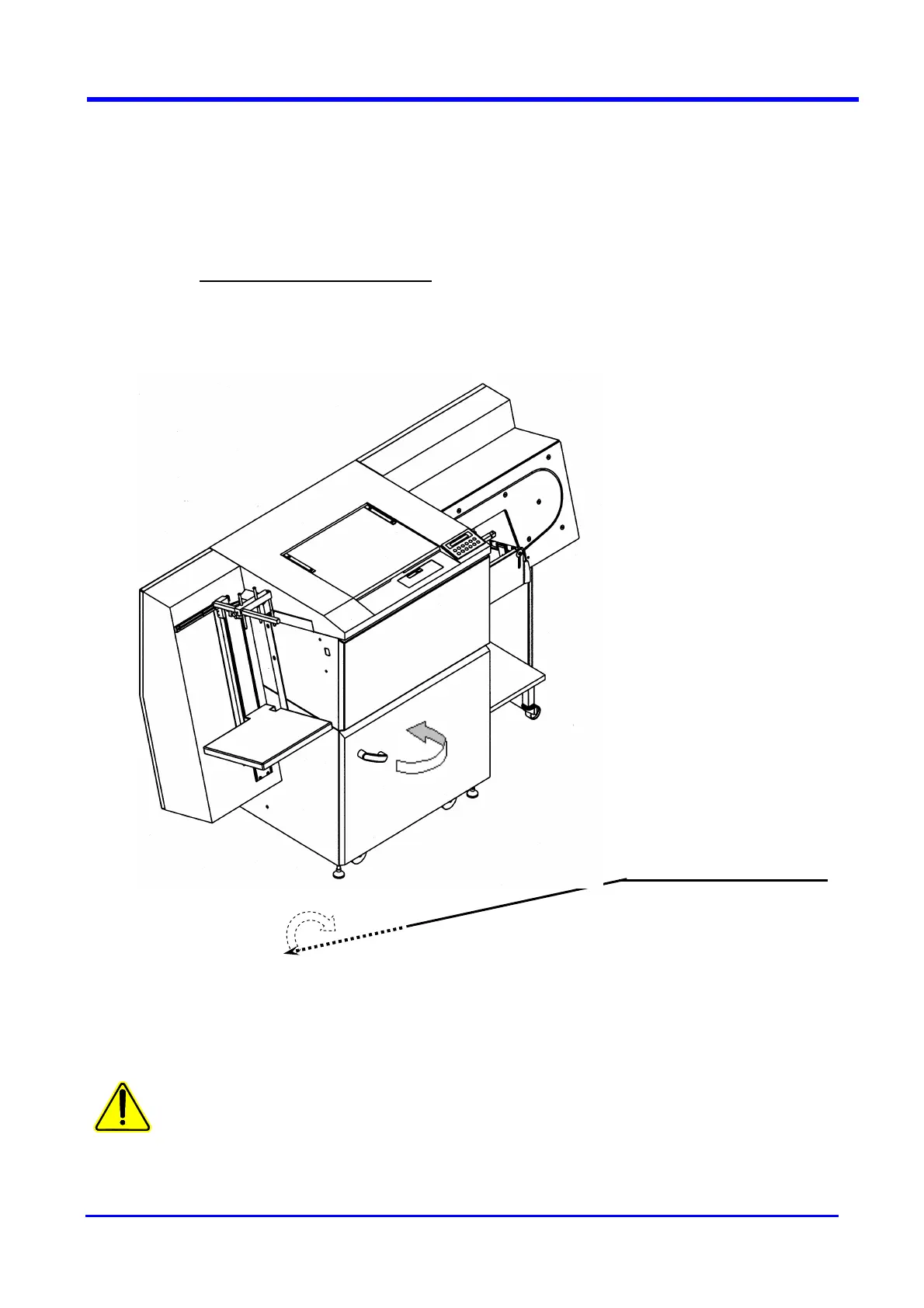

Turn
clockwise = +
Pressure regulator
(inside on the left)
