JBI Alpha-Doc Mk4 - Tool Changing Procedure

Section 5 Page
5. Operation
ALPHAM4/V1 SEPT 2011
4

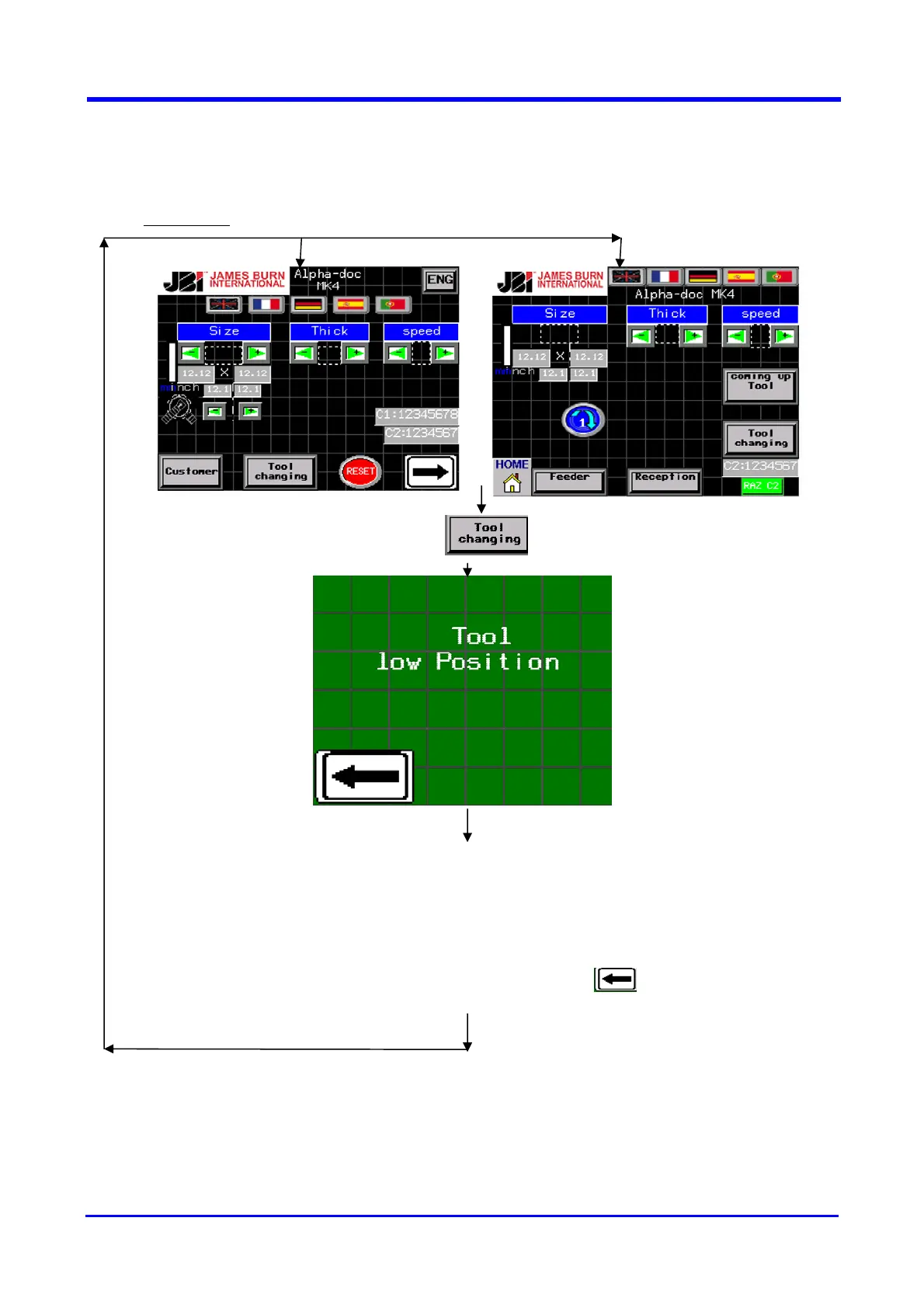

5.4 Tool Changing
5.4.1 Procedure
Press
Nearly whole the tool is lowering, you can change the tool :
- open the tool door
- remove the 3 screws on the tool base
- change the tool
- tighten the 3 screws by using a flat key
- close the tool door
When the tool changing is completed press
NOTE : The tool must be removed ONLY when it is in the lowered position.
