Section 6 Page
6. Options
ALPHAM4/V1 SEPT 2011
4

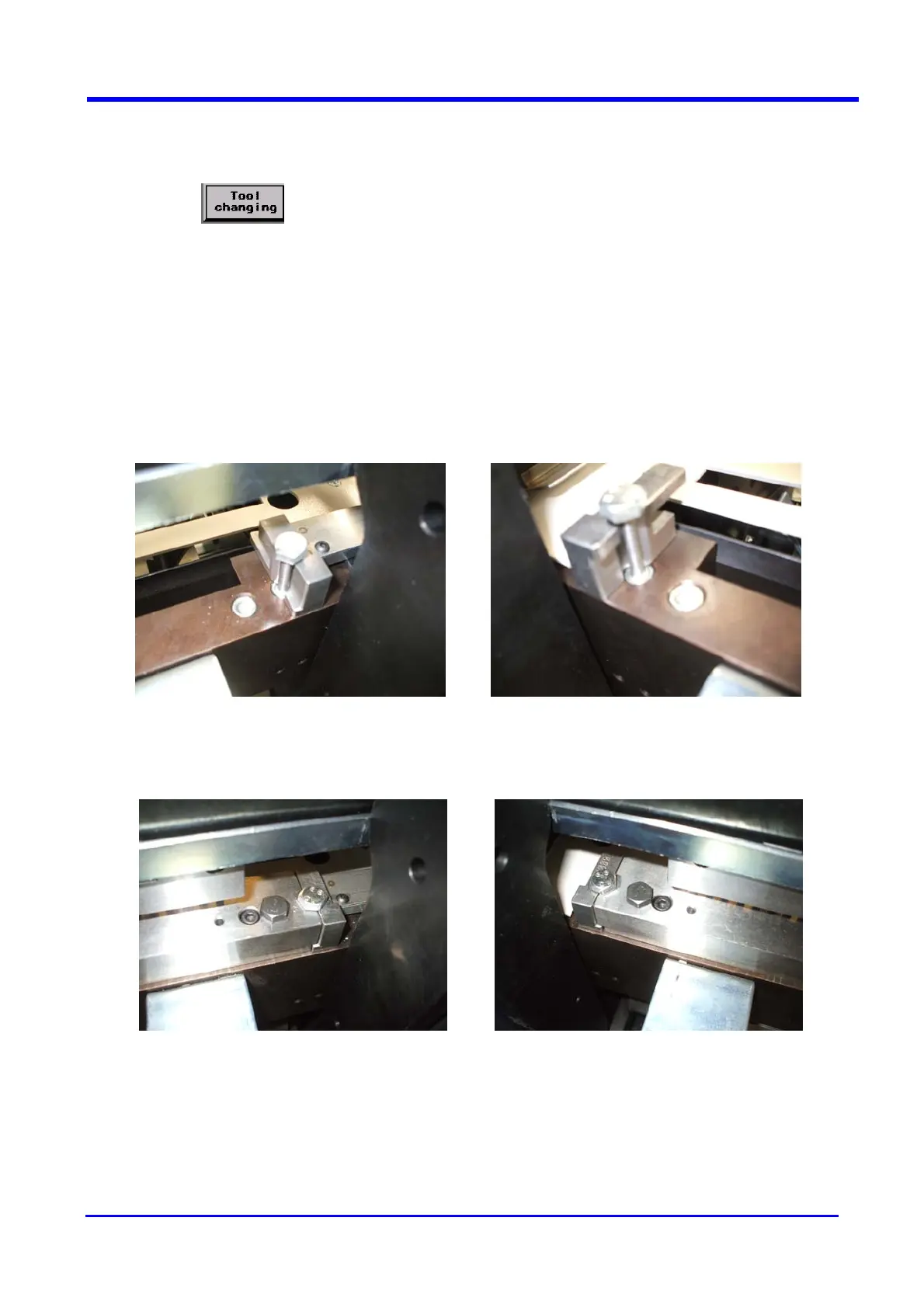

6.4 How to fit a Mk3 tool onto a Mk4 Alpha-Doc
1. Press on the control display to bring the tool beam in low position.
2. Open the rear tool panel.
3. Unlock the Mk4 tool by untighting the 3 screws holding the Mk4 tool in place and
remove it.
4. Position the two lateral blocks as shown on pict (1) & (2) and keep them in place
with the 2 holding bolts fitted into the tool table up to the threaded head. Do not
tighten those bolts yet. Make sure they are in their correct position, i.e. the block
marked D on the right side.
pict 1 pict 2
5. Introduce and clamp the Mk3 tool into the tool table between the two lateral blocks
as shown on pict (3) & (4).
pict 3 pict 4
6. Lock the Mk3 tool in place by tightening the 3 screws taken from the Mk4 tool.
7. Tighten the two holding bolts of the lateral blocks.
NOTA : When you place the tool, take care to push it against the 2 reference pins
(each side)
