6 - 3
Removal (continued)

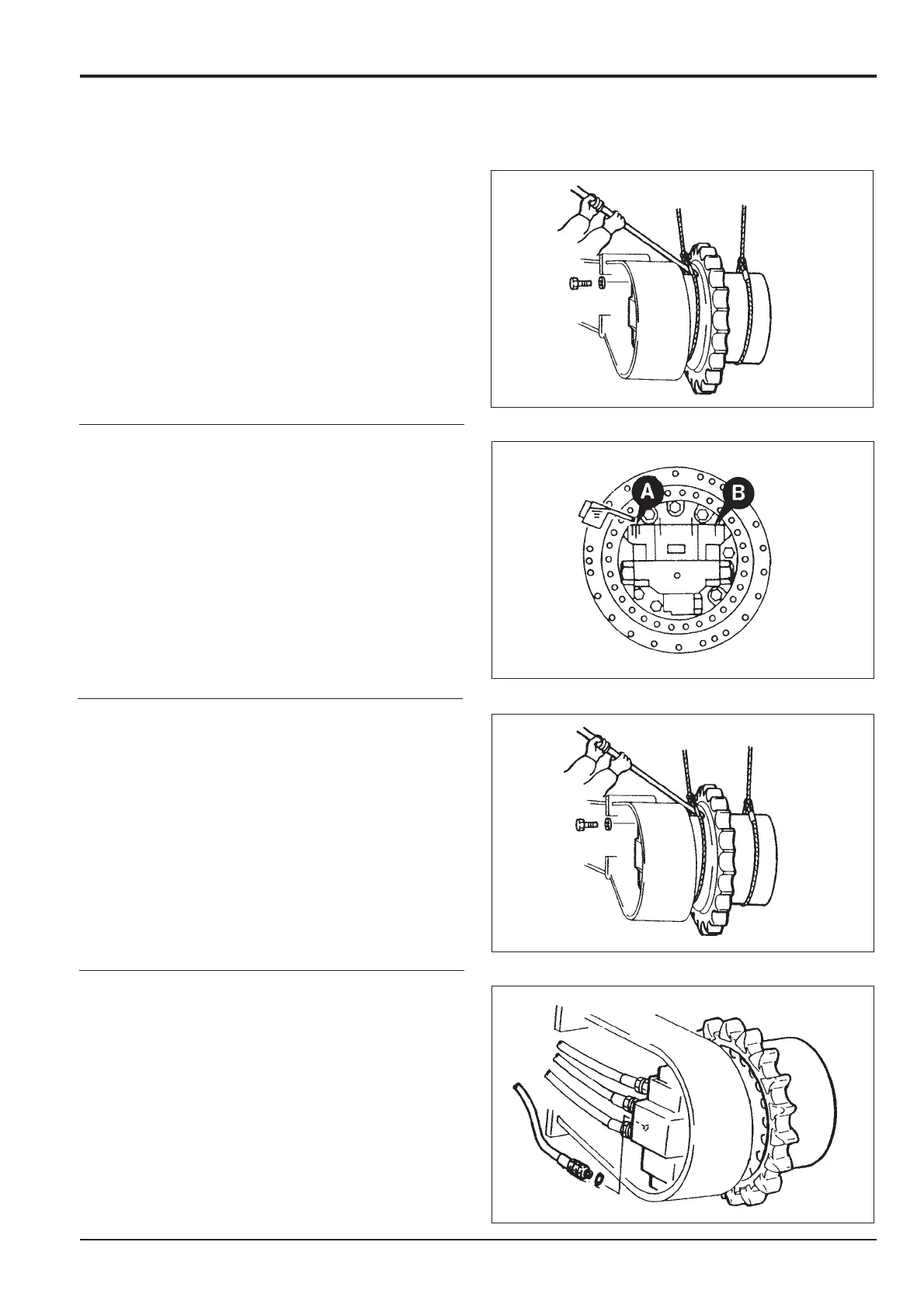

8. Support the motor so that the cables are in tension,
then remove the motor installation bolts.
Replacement
1. Before fitting, clean the gearbox and bleed air out as
follows:
Turn the gearbox so that the hydraulic oil ports are
facing upwards.
Remove plugs from ports A and B. Fill the motor
through port A with the specified hydraulic oil. Fit
plugs to ports A and B.
2. Lift the gearbox and position it on the undercarriage.
Install the bolts and washers, using Loctite 262 on
the bolt threads. Tighten the bolts in a diagonal
sequence.
Torque Settings
267-312 Nm (196-229 lbf ft)
3. Remove plugs and install the hoses to the motor.
Section F
Transmission
9803/6400
Section F
6 - 3
Issue 1
Motor/Gearbox
To Next Page
