GEN5™ Printer JCM® Training Overview September, 2017
4. Rotate the Print Head Release Lever (Figure 5 a) leftward, then gently press down
on the Lever to lower the Print Head.
5. Wipe the Print Head surface clean using a new cleaning swab (refer to Figure 6 a on
page 7).
a
c
b
d
e

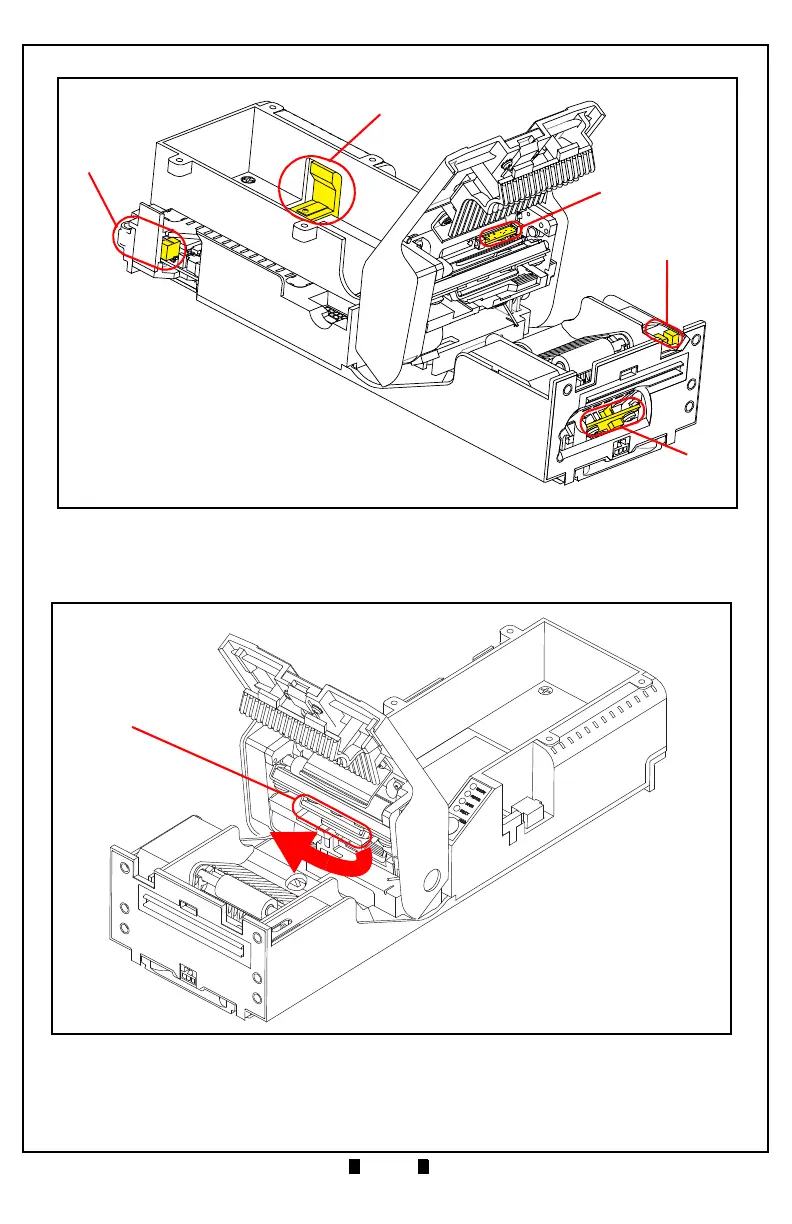

Figure 4 GEN5 Printer Sensor Locations
a
Figure 5 GEN5 Print Head Release Lever
