(4) Using Holder 6958 to hold yoke, remove the
pinion nut and washer.
(5) Using Remover C-452 and Holder C-3281,
remove the pinion yoke from pinion shaft (Fig. 38).
(6) Remove the pinion gear and preload shims
from housing (Fig. 39). Catch the pinion with your
hand to prevent it from falling and being damaged.
(7) Remove the front pinion bearing cup, bearing,
oil slinger, if equipped, and pinion seal with Remover
D-147 and Handle C–4171 (Fig. 40).

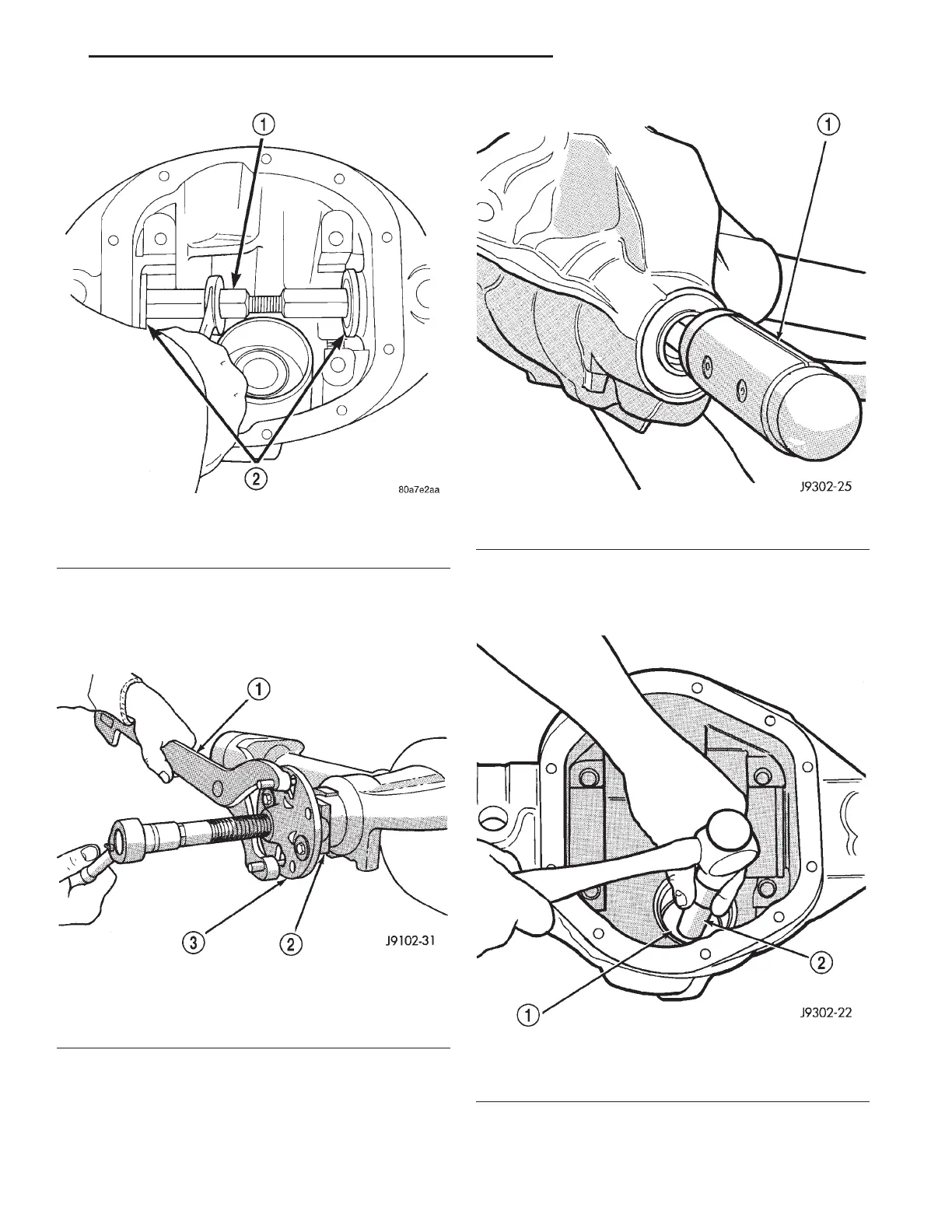

Fig. 37 Axle Seal Installation
1 – TURNBUCKLE 6797
2 – DISCS 8110
Fig. 38 Pinion Yoke Removal
1 – SPECIAL TOOL C-3281
2 – YOKE
3 – SPECIAL TOOL C-452
Fig. 39 Remove Pinion Gear
1 – RAWHIDE HAMMER
Fig. 40 Front Bearing Cup Removal
1 – REMOVER
2 – HANDLE
XJ TUBE, 181, AND 186 FBI AXLE 3 - 37
REMOVAL AND INSTALLATION (Continued)
