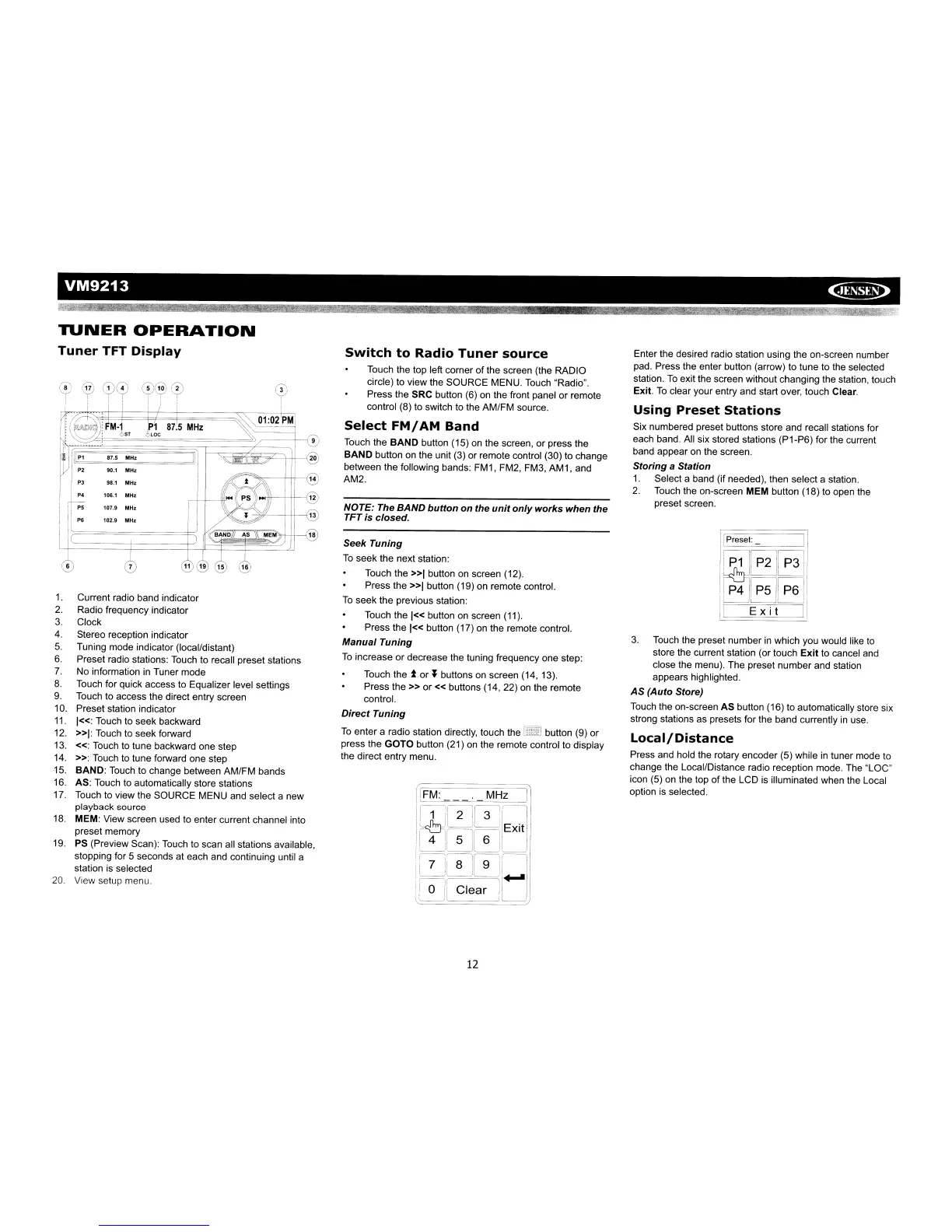

VM9213
~
nJNER
OPERATION
Tuner
TFT
Display
r;-;.r.::-.
(;\
\V,~'0
I . I
01:02
PM
87.5
MHz
1.
Current radio band indicator
2.
Radio frequency indicator
3.
Clock
4.
Stereo reception indicator
5.
Tuning mode indicator (local/distant)
6.
Preset radio stations: Touch
to
recall preset stations
7.
No information
in
Tuner mode
8.
Touch for quick access to Equalizer level settings
9.
Touch to access the direct entry screen
10. Preset station indicator
11.
1«: Touch to seek backward
12.
»1: Touch to seek forward
13.
«:
Touch
to
tune backward one step
14.
»:
Touch to tune forward one step
15.
BAND: Touch
to
change between AM/FM bands
16.
AS: Touch
to
automatically store stations
17. Touch to view the SOURCE MENU and select a new
playback source
18. MEM: View screen used to enter current channel into
preset memory
19.
PS
(Preview Scan): Touch
to
scan all stations available,
stopping for 5 seconds at each and continuing until a
station is selected
20. View setup menu.
Switch
to
Radio
Tuner
source
Touch the top left corner
of
the screen (the RADIO
circle) to view the SOURCE MENU. Touch "Radio".
Press the
SRC button (6) on the front panel or remote
control (8) to switch
to
the AM/FM source.
Select
FM/
AM
Band
Touch the
BAND
button (15)
on
the screen, or press the
BAND button
on
the unit (3) or remote control (30) to change
between the following bands: FM1, FM2, FM3, AM1, and
AM2.
NOTE: The
BAND
button
on
the
unit
only
works
when
the
TFT
is
closed.
Seek
Tuning
To
seek the next station:
Touch the
»1 button
on
screen (12).
Press the
»1 button (19) on remote control.
To
seek the previous station:
Touch the
button on screen
(11).
Press the
button (17) on the remote control.
Manual
Tuning
To
increase or decrease the tuning frequency one step:
Touch the
t
or;
buttons
on
screen (14, 13).
Press the
»or
« buttons (14, 22)
on
the remote
control.
Direct
Tuning
To
enter a radio station directly, touch the :=g' button (9) or
press the GOTO button (21)
on
the remote control to display
the direct entry menu.
12
Enter the desired radio station using the on-screen number
pad. Press the enter button (arrow) to tune to the selected
station.
To
exit the screen without changing the station, touch
Exit.
To
clear your entry and start over, touch Clear.
Using
Preset
Stations
Six numbered preset buttons store and recall stations for
each band. All six stored stations (P1-P6) for the current
band appear on the screen.
Storing
a Station
1.
Select a band (if needed), then select a station.
2.
Touch the on-screen MEM button (18) to open the
preset screen.
!IPreset: _ I
P1
§]§JI
P4
§JEJI
II
Ex
i t
II
3.
Touch the preset number
in
which you would like
to
store the current station (or touch
Exit
to cancel and
close the menu). The preset number and station
appears highlighted.
AS
(Auto
Store)
Touch the on-screen AS button (16) to automatically store six
strong stations as presets for the band currently
in
use.
Local/Distance
Press and hold the rotary encoder (5) while
in
tuner mode to
change the Local/Distance radio reception mode. The "LOC"
icon (5) on the top
of
the LCD
is
illuminated when the Local
option
is
selected.
