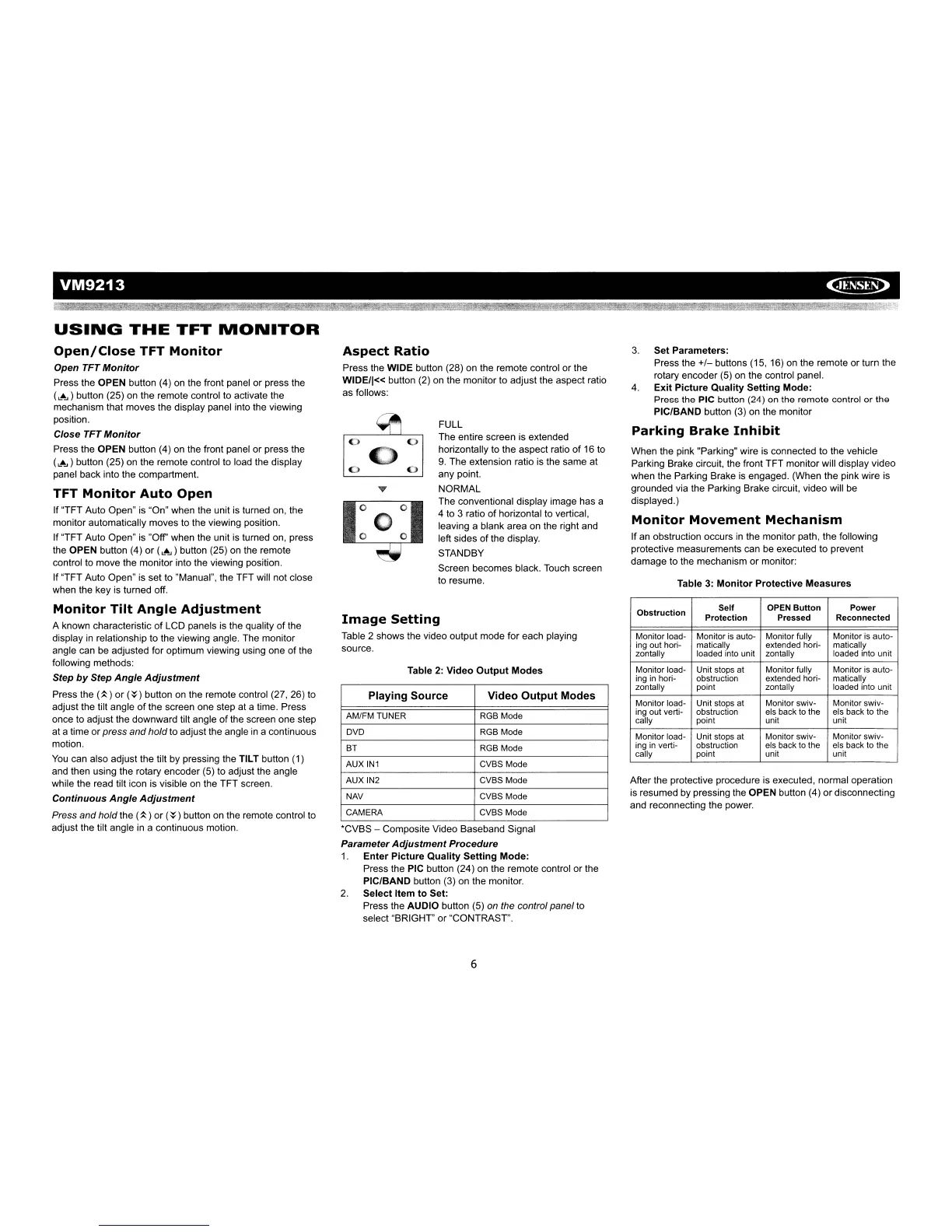

VM9213
~
Table 2:
Video
Output
Modes
Setting
Table 2 shows the video output mode for each playing
source.
Aspect
Ratio
Press the WIDE button (28) on the remote control or the
WIDE/I«
button (2) on the monitor to adjust the aspect ratio
as follows:
3.
Set
Parameters:
Press the
+1- buttons (15, 16) on the remote or turn the
rotary encoder (5) on the control panel.
4.
Exit
Quality
Setting
Mode:
Press the PIC button (24) on the remote control or the
PICIBAND button (3) on the monitor
Parking
Brake
Inhibit
Table 3:
Monitor
Protective
Measures
When the pink "Parking" wire
is
connected to the vehicle
Parking Brake circuit, the front TFT monitor will display video
when the Parking Brake is engaged. (When the pink wire is
grounded via the Parking Brake circuit, video will be
displayed.)
Monitor
Movement
Mechanism
If an obstruction occurs
in
the monitor path, the following
protective measurements can be executed to prevent
damage to the mechanism or monitor:
Obstruction
Self
OPEN
Button
Power
Protection Pressed Reconnected
Monitor load- Monitor
is
auto- Monitor
fUlly
Monitor is auto-
ing out hori- matically extended hori- matically
zontally loaded into unit zontally loaded into unit
Monitor load- Unit stops at Monitor
fUlly
Monitor is auto-
ing
in
hori- obstruction
extended hori-
matically
zontally point zontally
loaded into unit
Monitor load- Unit stops at
Monitor swiv- Monitor swiv-
ing out verti-
obstruction els back to the els back
to
the
cally
point unit unit
Monitor load- Unit stops at
Monitor swiv- Monitor swiv-
ing
in
verti- obstruction els back to the els back to the
cally point unit unit
After the protective procedure is executed, normal operation
is resumed by pressing the OPEN button (4) or disconnecting
and reconnecting the power.
FULL
The entire screen is extended
horizontally to the aspect ratio of 16 to
9.
The extension ratio is the same at
any point.
NORMAL
The conventional display image has a
4
to
3 ratio
of
horizontal to vertical,
leaving a blank area on the right and
left sides of the display.
STANDBY
Screen becomes black. Touch screen
to
resume.
~
o
o
o 0
Playing Source Video
Output
Modes
AM/FM TUNER RGB Mode
DVD RGB Mode
BT RGB Mode
AUXIN1
CVBS Mode
AUXIN2
CVBS Mode
NAV CVBS Mode
CAMERA CVBS Mode
*CVBS - Composite Video Baseband Signal
Parameter
Adjustment
Procedure
1.
Enter
Quality
Setting
Mode:
Press the PIC button (24) on the remote control or the
PICIBAND button (3) on the monitor.
2.
Select Item
to
Set:
Press the AUDIO button (5)
on the control panel to
select "BRIGHT" or "CONTRAST".
USING
THE
TFT
MONITOR
Open/Close
TFT
Monitor
Open TFT
Monitor
Press the OPEN button (4)
on
the front panel or press the
k~
)button (25) on the remote control to activate the
mechanism that moves the display panel into the viewing
position.
Close TFT
Monitor
Press the OPEN button (4) on the front panel or press the
(.A.) button (25) on the remote control to load the display
panel back into the compartment.
TFT
Monitor
Auto
Open
If "TFT Auto Open" is "On" when the unit
is
turned on, the
monitor automatically moves to the viewing position.
If "TFT Auto Open"
is
"Off" when the unit
is
turned on, press
the OPEN button (4) or
(L~)
button (25) on the remote
control to move the monitor into the viewing position.
If "TFT Auto Open" is set to "Manual", the TFT will not close
when the key is turned off.
Monitor
Tilt
Angle
Adjustment
A known characteristic
of
LCD panels
is
the quality
of
the
display
in
relationship to the viewing angle. The monitor
angle can
be
adjusted for optimum viewing using one of the
following methods:
Step
by
Step
Angle
Adjustment
Press the
(~)
or
(~)
button on the remote control (27, 26) to
adjust the tilt angle
of
the screen one step at a time. Press
once
to
adjust the downward tilt angle of the screen one step
at a time or
press and hold to adjust the angle
in
a continuous
motion.
You
can also adjust the tilt by pressing the TILT button (1)
and then using the rotary encoder (5) to adjust the angle
while the read tilt icon is visible
on
the TFT screen.
Continuous
Angle
Adjustment
Press and hold the
(~
) or
(~)
button on the remote control to
adjust the tilt angle
in
a continuous motion.
6
