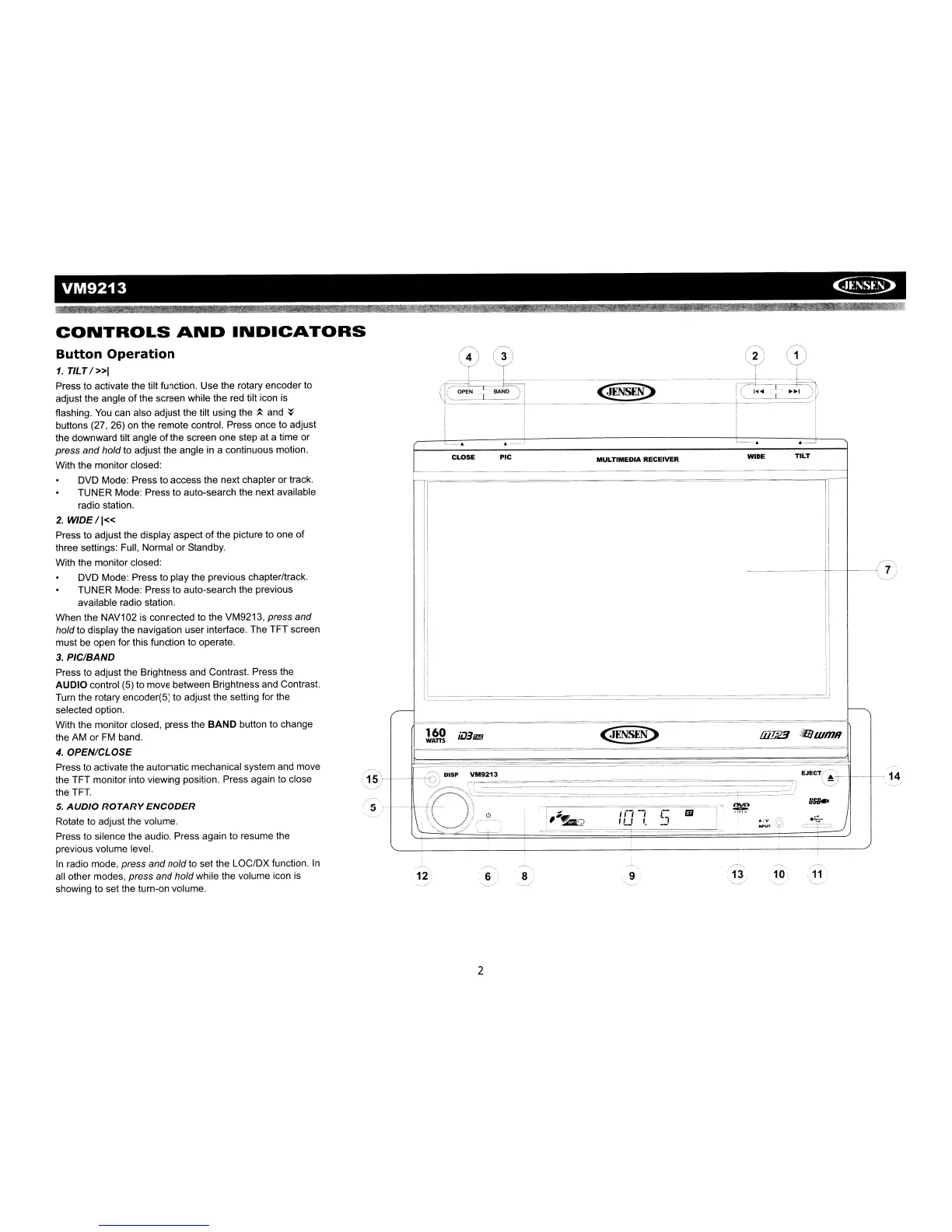

CONTROLS
AND
INDICATORS
Button
Operation
1.
TILT
/»1
Press to activate the tilt function. Use the rotary encoder
to
adjust the angle
of
the screen while the red tilt icon is
flashing.
You
can also adjust the tilt using the
~
and
~
buttons (27, 26) on the remote control. Press once to adjust
the downward tilt angle
of
the screen one step at a time or
press
and
hold to adjust the angle in a continuous motion.
With the monitor closed:
OVO
Mode: Press to access the next chapter or track.
TUNER Mode: Press to auto-search the next available
radio
station_
2.
WIDE/I«
Press to adjust the display aspect
of
the picture to one
of
three settings: Full, Normal or Standby.
With the monitor closed:
OVO
Mode: Press to play the previous chapter/track.
TUNER Mode: Press
to
auto-search the previous
available radio station.
When the NAV102 is connected to the VM9213, press and
hold
to
display the navigation user interface. The TFT screen
must
be
open for this function
to
operate.
3.
PIC/BAND
Press
to
adjust the Brightness and Contrast. Press the
AUDIO control (5) to move between Brightness and Contrast.
Turn the rotary encoder(5) to adjust the setting for the
selected option.
With the monitor closed, press the
BAND
button
to
change
the AM or
FM
band.
4.
OPEN/CLOSE
Press to activate the automatic mechanical system and move
the TFT monitor into viewing position. Press again
to
close
the
TFT.
5.
AUDIO
ROTARY
ENCODER
Rotate to adjust the volume.
Press to silence the audio. Press again to resume the
previous volume level.
In
radio mode, press and hold to set the LOC/OX function.
In
all other modes, press
and
hold while the volume icon
is
showing to set the turn-on volume.
