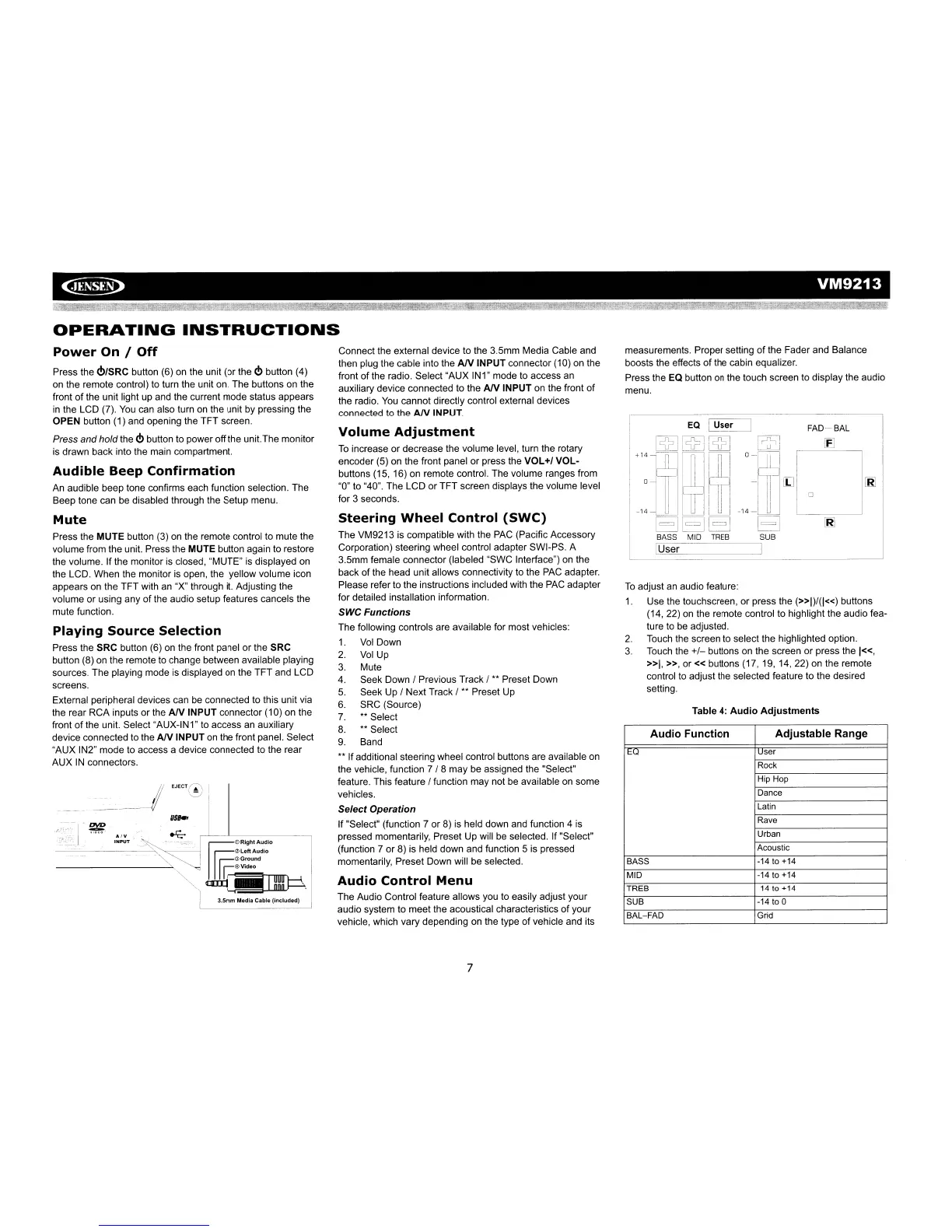

VM9213
OPERATING
INSTRUCTIONS
Power
On /
Off
Press the
<!>/SRC
button (6)
on
the unit (or the
<!>
button (4)
on
the remote control) to turn the unit on. The buttons on the
front of the unit light up and the current mode status appears
in the LCD (7).
You
can also turn
on
the unit by pressing the
OPEN button (1) and opening the TFT screen.
Press
and
hold
the
<!>
button to power off the unit.The monitor
is
drawn back into the main compartment.
Audible
Beep
Confirmation
An
audible beep tone confirms each function selection. The
Beep tone can be disabled through the Setup menu.
Mute
Press the MUTE button (3)
on
the remote control to mute the
volume from the unit. Press the MUTE button again to restore
the volume. If the monitor is closed, "MUTE"
is
displayed
on
the LCD. When the monitor
is
open, the yellow volume icon
appears
on
the TFT with
an
"X" through
it.
Adjusting the
volume or using any of the audio setup features cancels the
mute function.
Playing
Source
Selection
Press the SRC button (6)
on
the front panel or the SRC
button (8)
on
the remote to change between available playing
sources. The playing mode is displayed on the TFT and LCD
screens.
External peripheral devices can be connected to this unit via
the rear RCA inputs or the
AN
INPUT connector (10) on the
front of the unit. Select "AUX-IN1"
to
access
an
auxiliary
device connected to the
AN
INPUT
on
the front panel. Select
"AUX IN2" mode to access a device connected to the rear
AUX
IN
connectors.
--'
EJECT0
I L
- -- I
----
--
.
'::';:[
~
AIV
:;_L
"~
'-~
I
~:::~h:~~:O
l
~a>GrOUnd
.~~.
~
3.5mm Media Cable (included)
Connect the external device to the 3.5mm Media Cable and
then plug the cable into the
AN
INPUT connector (10) on the
front
of
the radio. Select "AUX IN1" mode to access an
auxiliary device connected to the
AN
INPUT on the front of
the radio.
You
cannot directly control external devices
connected to the
AN
INPUT.
Volume
Adjustment
To
increase or decrease the volume level, turn the rotary
encoder (5) on the front panel
or
press the VOL+I VOL-
buttons (15, 16) on remote control. The volume ranges from
"0"
to
"40". The LCD or TFT screen displays the volume level
for 3 seconds.
Steering
Wheel
Control
(SWC)
The VM9213
is
compatible with the
PAC
(Pacific Accessory
Corporation) steering wheel control adapter SWI-PS. A
3.5mm female connector (labeled "SWC Interface")
on
the
back of the head unit allows connectivity to the
PAC
adapter.
Please refer to the instructions included with the
PAC
adapter
for detailed installation information.
SWC
Functions
The following controls are available for most vehicles:
1.
Vol
Down
2.
Vol
Up
3.
Mute
4.
Seek Down / Previous Track / ** Preset Down
5.
Seek Up / Next Track / ** Preset Up
6.
SRC (Source)
7.
** Select
8.
** Select
9.
Band
** If additional steering wheel control buttons are available
on
the vehicle, function 7 / 8 may be assigned the "Select"
feature. This feature / function may not be available
on
some
vehicles.
Select
Operation
If
"Select" (function 7
or
8)
is
held down and function 4
is
pressed momentarily, Preset Up will be selected. If "Select"
(function 7
or
8)
is
held down and function 5
is
pressed
momentarily, Preset Down will be selected.
Audio
Control
Menu
The Audio Control feature allows you to easily adjust your
audio system to meet the acoustical characteristics of your
vehicle, which vary depending on the type of vehicle and its
7
measurements. Proper setting
of
the Fader and Balance
boosts the effects of the cabin equalizer.
Press the
EQ
button
on
the touch screen to display the audio
menu.
I EQ IUser I
FAD-
BAL
I."
l'i?II<F!
lei?1
,J~>I,
""
,
I
J~I
~
1~111
-~IJI
I~
I
Jill
f[J
DILHJ
~I
I
EJEJE]
EJ
~
[ BASS
M~D
TREB
SUB I
roser=
I
~
To
adjust
an
audio feature:
1.
Use the touchscreen, or press the
(»1)/(1«)
buttons
(14,22)
on
the remote control to highlight the audio fea-
ture to be adjusted.
2.
Touch the screen to select the highlighted option.
3.
Touch the
+/-
buttons on the screen or press the
1«,
»1.
»,
or«
buttons
(17,19,
14,22)
on
the remote
control
to
adjust the selected feature to the desired
setting.
Table 4:
Audio
Adjustments
Audio
Function
Adjustable
Range
I
toW
,
user
Rock
Hip Hop
Dance
Latin
Rave
Urban
Acoustic
BASS -14 to +14
MID -14 to +14
TREB -14 to +14
SUB
-14to
0
BAL-FAD
Grid
