JessEm Mite-R-Excel II User Manual

After making any adjustments to the Mite-R-Excel II™, ensure the fence is clear of the
table saw blade and the clamping handle is tight before making any cuts.
Using the Mite-R-Excel II ™
50
51
5
51
5
50
47

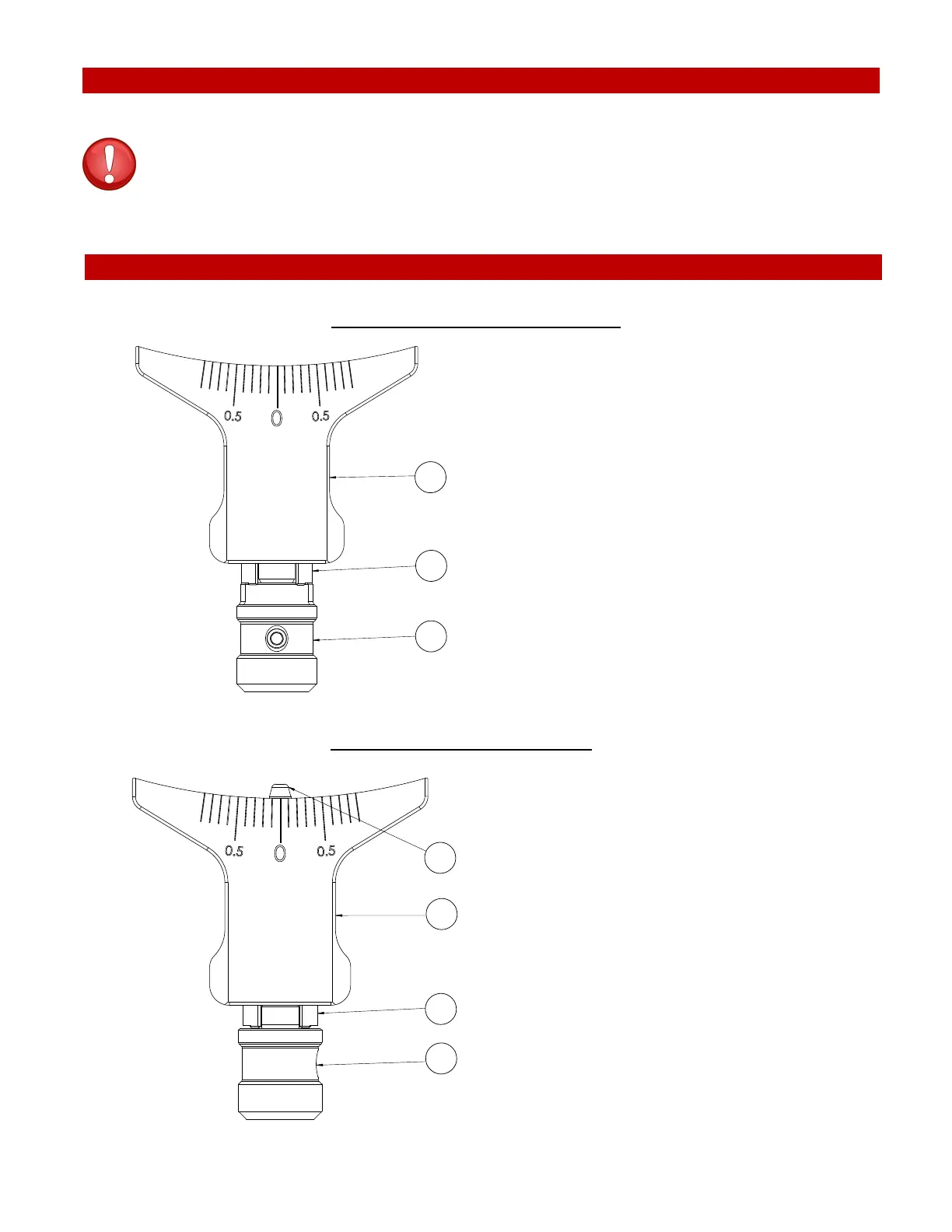

DISENGAGED INDEXING PIN KNOB
Disengaged indexing pin knob. (Pulled out and
turned). Use in this position for adjusting
increments and all non predetermined detent
positions on the gauge.
ENGAGED INDEXING PIN KNOB
Use in this position when using predetermined
detents of 0°, 15°, 22.5°, 30° and 45°
Engaging and Disengaging the Indexing Pin Knob
Figure 16
Figure 17
14
