In this example the .7 mark on the lower Vernier
Scale will line
up with the “42” on the upper scale.
Tighten the Handle (Part #10) and now the gauge
is set to 35.7° degrees. Remember to keep the
Indexing Pin Knob in the disengaged position.

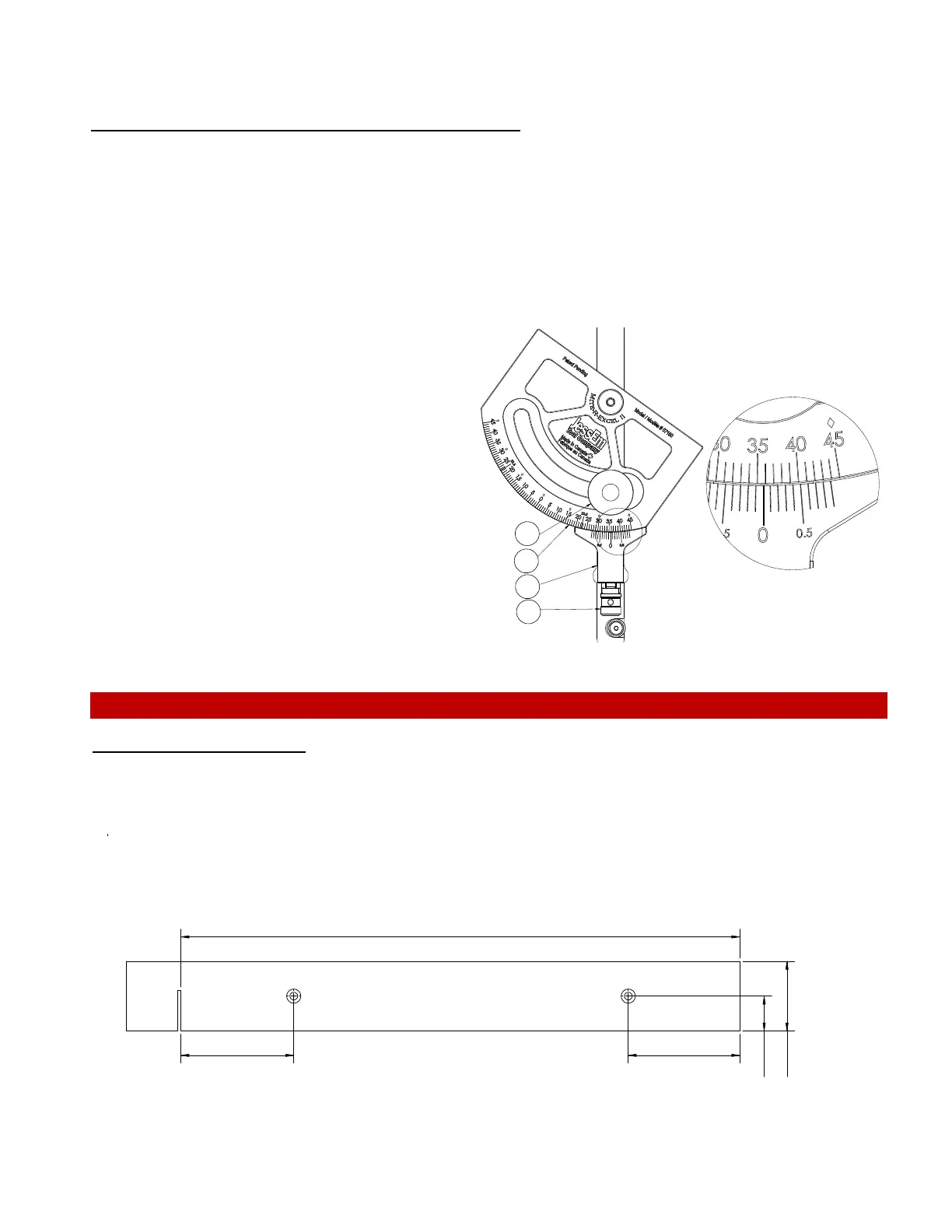

Example 2:
Setting your gauge to 35.7° degrees (Vernier Scale 2)
10
50
5
Loosen the Handle (Part #10)
Pull out and lock the Indexing Pin Knob (Part #5). See Figure 16 and 17 for
locked and
unlocked position of the Indexing Pin Knob.
Rotate the gauge to 35° degrees
Using the lower Vernier Scale on the
Indexing Block (Part #50),
rotate the
gauge counter clockwise until the desired
1/10th degree aligns with the nearest
whole degree.
a
.
b.
c.
d
.
Example #2
INDEXING PIN KNOB
DISENGAGED
18
6
You will need a ¾" thick piece of stock, cut down to 2-1/2" high and anywhere from 22 - 25"
wide. (See Figure 21)
Mounting A Sacrificial Fence
a.
Measure and mark the first hole 4” from the right side of the board and 1-1/4" from the bottom as
shown in Figure 21.
b.
4"
20"
2-1/2"
4"
1-1/4"
JessEm provides the hardware to mount a sacrificial fence.
Making a Sacrificial Fence
Figure 21
To Next Page
