22

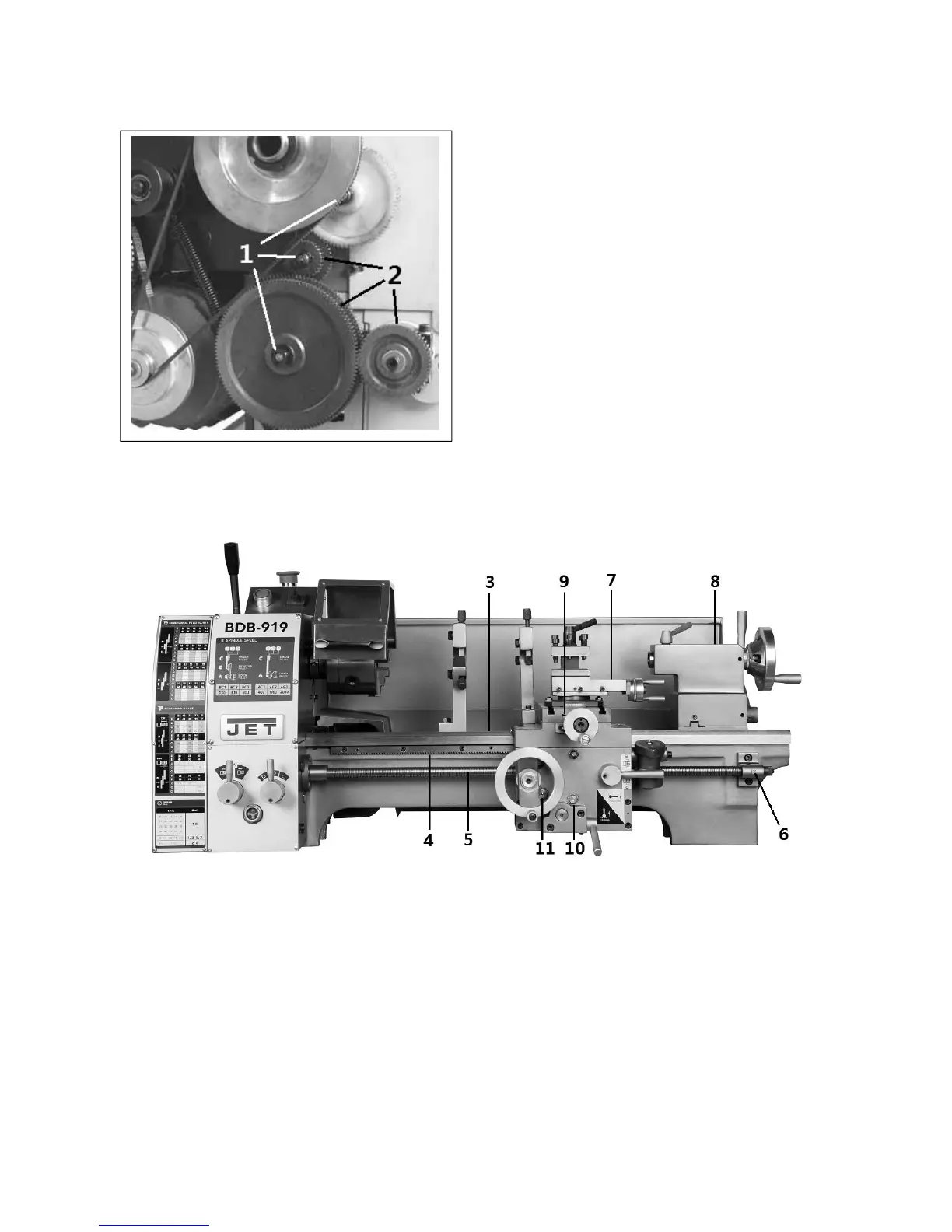

12.0 Lubrication Schedule
(Figures 39 and 40)
Figure 39
Note: Lubricate all locations daily.
Grease refers to #2 tube grease.
Oil refers to 20W machine oil.
1 – 1 to 2 squirts of oil into oil ball on gear hub.
2 – Grease teeth of feed and change gears.
3 – Wipe bedways clean and coat lightly with oil.
4 – Grease rack over complete length.
5 – Clean and oil leadscrew over complete length.
6 – 1 to 2 squirts of oil into oil ball on leadscrew
bracket.
7 – Lightly coat screw and guides of top slide with
oil.
8 – 1 to 2 squirts of oil into oil ball on top of tailstock
body.
9 –Lightly coat guides of carriage with oil.
10 – 1 to 2 squirts of oil into hub for feed lever.
11 – 1 to 2 squirts of oil into two oil balls on top of
apron and front of it.
Figure 40
