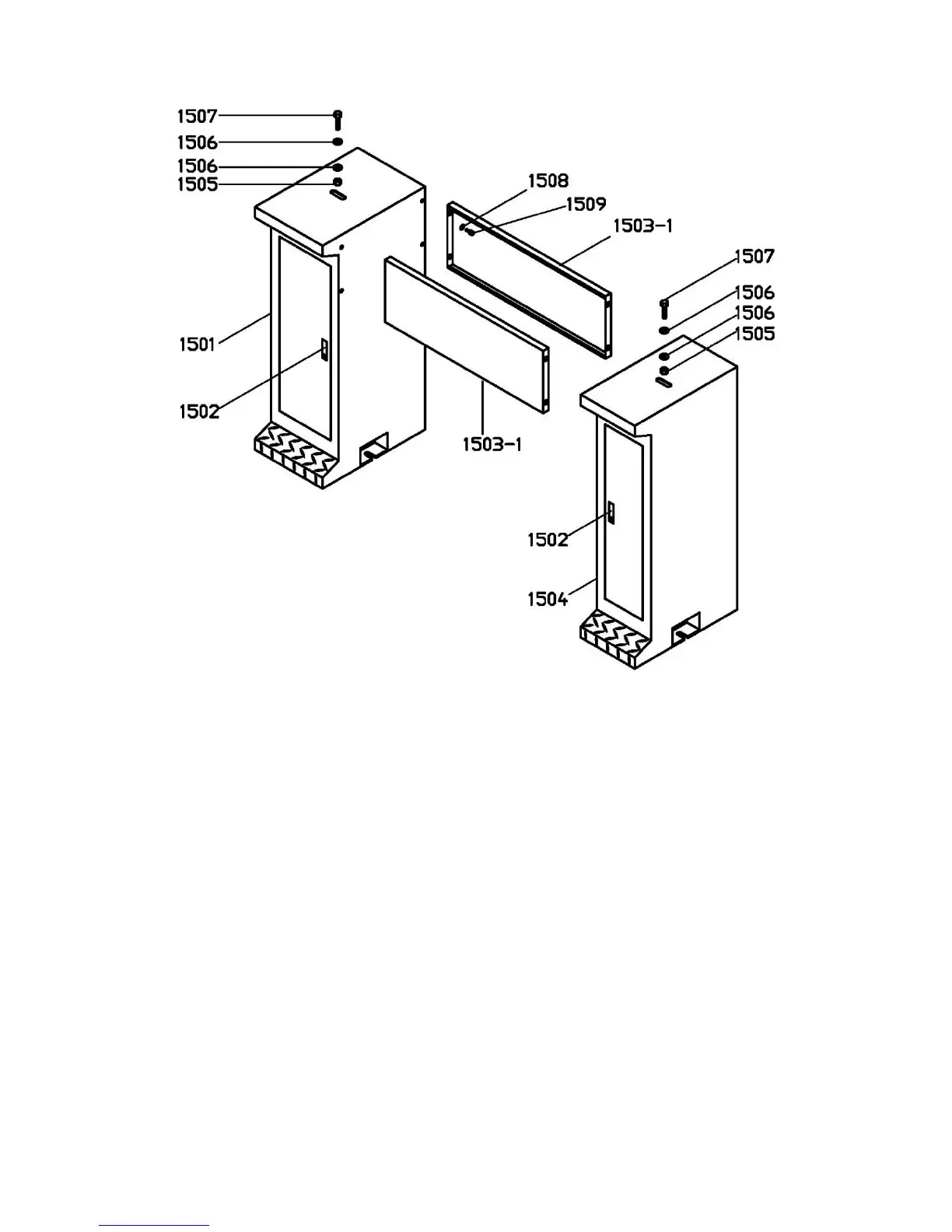

13.19.2 BDB-929 Stand #321377 (Optional Accessory) – Exploded View

13.19.2 BDB-929 Stand #321377 (Optional Accessory) – Parts List

Index No. Part No. Description Size Qty

.................. 321377 ...................... BDB-929 Stand (#1501 thru 1510) .......................... ...................................... 1

1501 .......... BDB919-1501 ............ Left Stand ................................................................ H:760mm ...................... 1

1502 .......... BDB919-1502 ............ Door Latch Assembly............................................... ...................................... 2

1503-1 ....... BDB929-1503-1 ........ Stand Plate .............................................................. L:645mm ....................... 2

1504 .......... BDB919-1504 ............ Right Stand .............................................................. H:760mm ...................... 1

1505 .......... TS-1540071 .............. Hex Nut .................................................................... M10 ............................... 4

1506 .......... TS-1550071 .............. Flat Washer ............................................................ 10mm ............................ 4

1507 .......... TS-149105 ................ Hex Cap Screw ........................................................ M10x35 ......................... 2

1508 .......... TS-1550041 .............. Flat Washer ............................................................. 6mm .............................. 8

1509 .......... TS-1503021 .............. Hex Socket Hd Cap Screw ...................................... M6X10 .......................... 8

1510 .......... JET-92 ....................... JET Logo (not shown) ............................................. 92x38mm ...................... 1
