Jet BDB-919 - Apron II - Exploded View

37

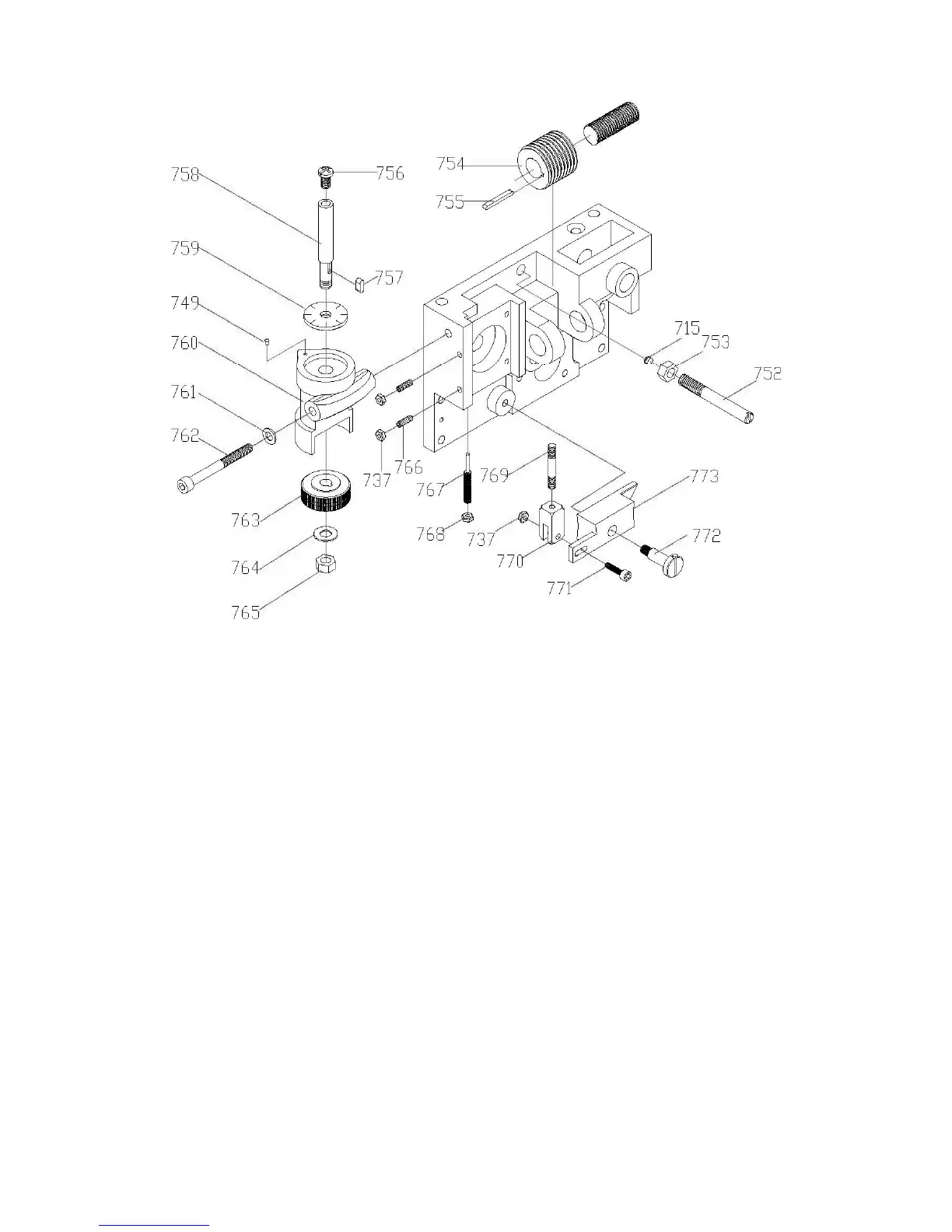

13.9.1 Apron II – Exploded View
13.9.2 Apron II – Parts List
Index No. Part No. Description Size Qty
752 ............ BDB919-752 .............. Screw ....................................................................... ...................................... 1
753 ............ TS-1540061 .............. Hex Nut .................................................................... M8X1 ............................ 1
754 ............ BDB919-754 .............. Worm ....................................................................... ...................................... 1
755 ............ KF2R3325 ................. Key, Double Rd Hd .................................................. A3X3X25 ....................... 1
756 ............ TS-1534032 .............. Phillips Pan Hd Mach Screw.................................... M6X10 .......................... 1
757 ............ KEY3310 ................... Key, Double Rd Hd .................................................. A3X3X10 ....................... 1
758 ............ BDB919-758 .............. Shaft ........................................................................ ...................................... 1
759 ............ BDB919-759 .............. Thread Dial .............................................................. ...................................... 1
760 ............ BDB919-760 .............. Thread Dial Body ..................................................... ...................................... 1
761 ............ TS-1550041 .............. Flat Washer ............................................................. 6mm .............................. 1
762 ............ TS-1503131 .............. Hex Socket Hd Cap Screw ...................................... M6-1.0X60 .................... 1
763 ............ BDB919-763 .............. Worm Gear .............................................................. 64T-0.5Mn .................... 1
764 ............ TS-2361081 .............. Lock Washer ............................................................ 8mm .............................. 1
765 ............ TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 1
766 ............ TS-1521051 .............. Socket Set Screw .................................................... M4-0.7X12 .................... 2
767 ............ BDB919-767 .............. Set Screw, Spcl ...................................................... M5-0.8X25 .................... 1
768 ............ TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 1
769 ............ BDB919-769 .............. Double End Stud ..................................................... ...................................... 1
770 ............ BDB919-770 .............. Control Block ........................................................... ...................................... 1
771 ............ TS-1501061 .............. Hex Socket Hd Cap Screw ...................................... M4-0.7X20 .................... 1
772 ............ BDB919-772 .............. Screw ....................................................................... ...................................... 1
773 ............ BDB919-773 .............. Joint Plate ................................................................ ...................................... 1
