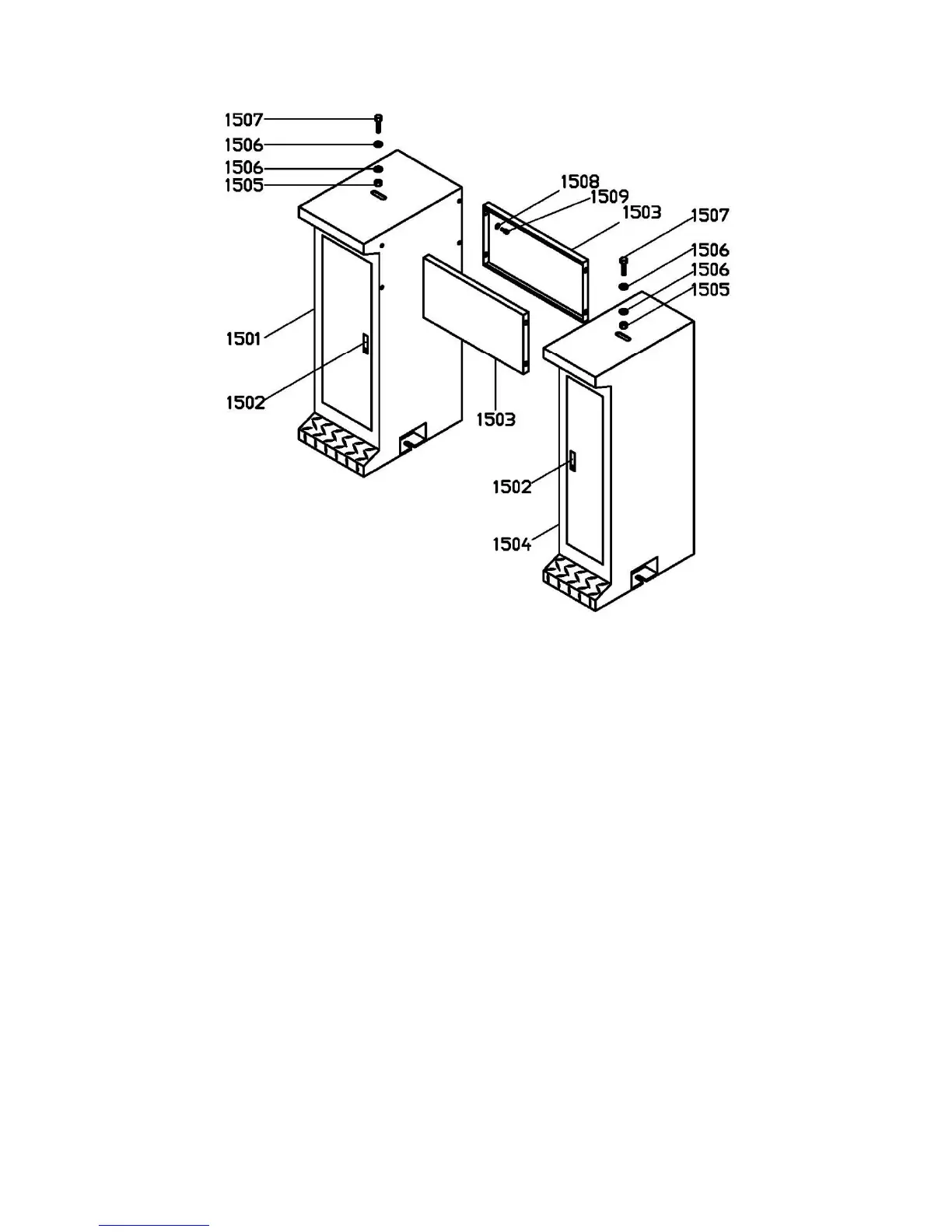

13.18.1 BDB-919 Stand #321375 (Optional Accessory) – Exploded View
13.18.2 BDB-919 Stand #321375 (Optional Accessory) – Parts List
Index No. Part No. Description Size Qty
.................. 321375 ...................... BDB-919 Stand (#1501 thru 1510) .......................... ...................................... 1
1501 .......... BDB919-1501 ............ Left Stand ................................................................ H:760mm ...................... 1
1502 .......... BDB919-1502 ............ Door Latch Assembly............................................... ...................................... 2
1503 .......... BDB919-1503 ............ Stand Plate .............................................................. L:385mm ....................... 2
1504 .......... BDB919-1504 ............ Right Stand .............................................................. H:760mm ...................... 1
1505 .......... TS-1540071 .............. Hex Nut .................................................................... M10 ............................... 4
1506 .......... TS-1550071 .............. Flat Washer ............................................................ 10mm ............................ 4
1507 .......... TS-149105 ................ Hex Cap Screw ........................................................ M10x35 ......................... 2
1508 .......... TS-1550041 .............. Flat Washer ............................................................. 6mm .............................. 8
1509 .......... TS-1503021 .............. Hex Socket Hd Cap Screw ...................................... M6X10 .......................... 8
1510 .......... JET-92 ....................... JET Logo (not shown) ............................................. 92x38mm ...................... 1
