44

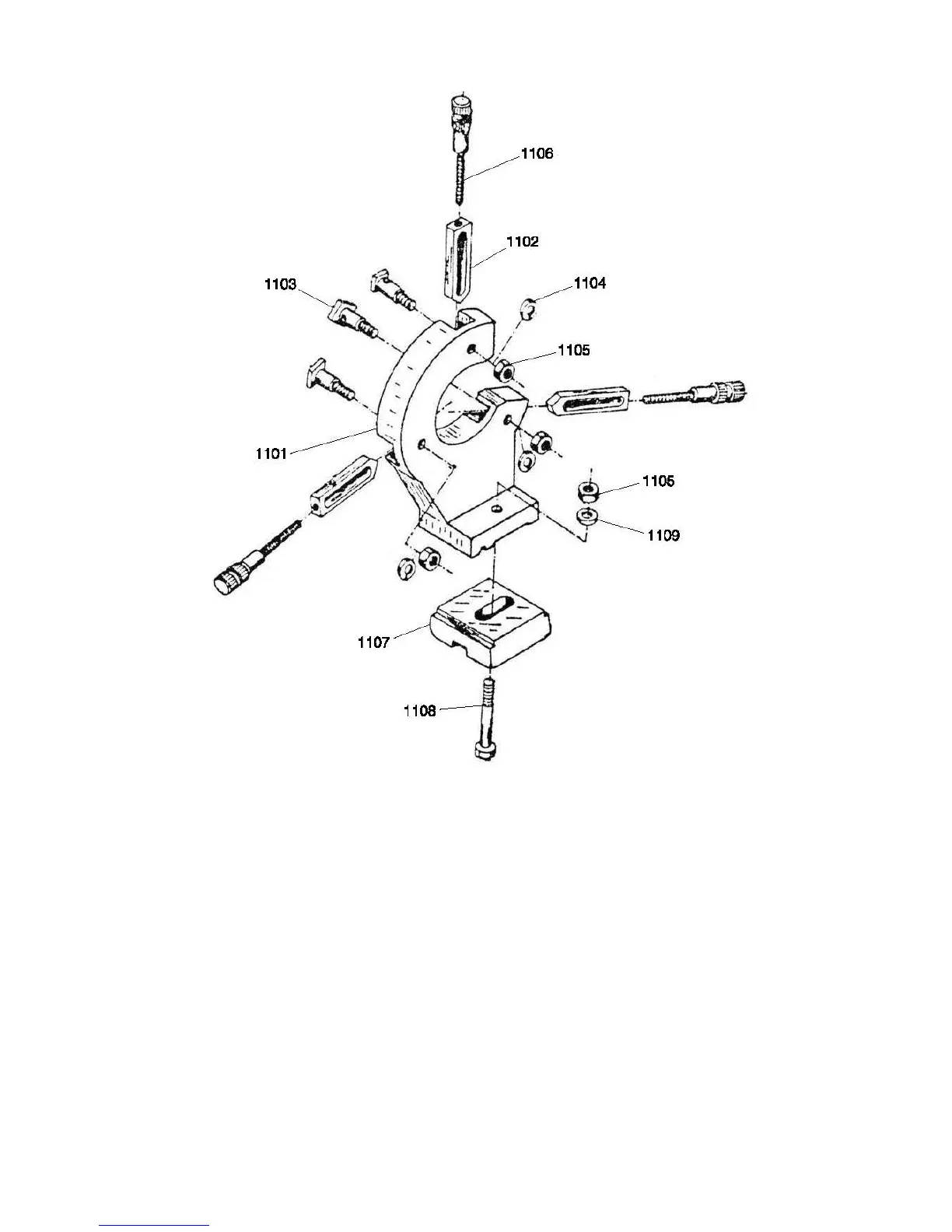

13.13.1 Steady Rest – Exploded View
13.13.2 Steady Rest – Parts List
Index No. Part No. Description Size Qty
1101 .......... BDB919-1101 ............ Rest Casting ............................................................ ...................................... 1
1102 .......... BDB919-1102 ............ Jaw .......................................................................... ...................................... 3
1103 .......... BDB919-1103 ............ Screw ....................................................................... ...................................... 3
1104 .......... TS-2361081 .............. Lock Washer ............................................................ 8mm .............................. 3
1105 .......... TS-1541031 .............. Hex Nut .................................................................... M8 ................................. 4
1106 .......... BDB919-1106 ............ Adjusting Screw ....................................................... ...................................... 3
1107 .......... BDB919-1107 ............ Clamping Plate ........................................................ ...................................... 1
1108 .......... TS-1490091 .............. Hex Cap Bolt............................................................ M8X50 .......................... 1
1109 .......... TS-2361081 .............. Lock Washer ............................................................ 8mm .............................. 1
To Next Page
