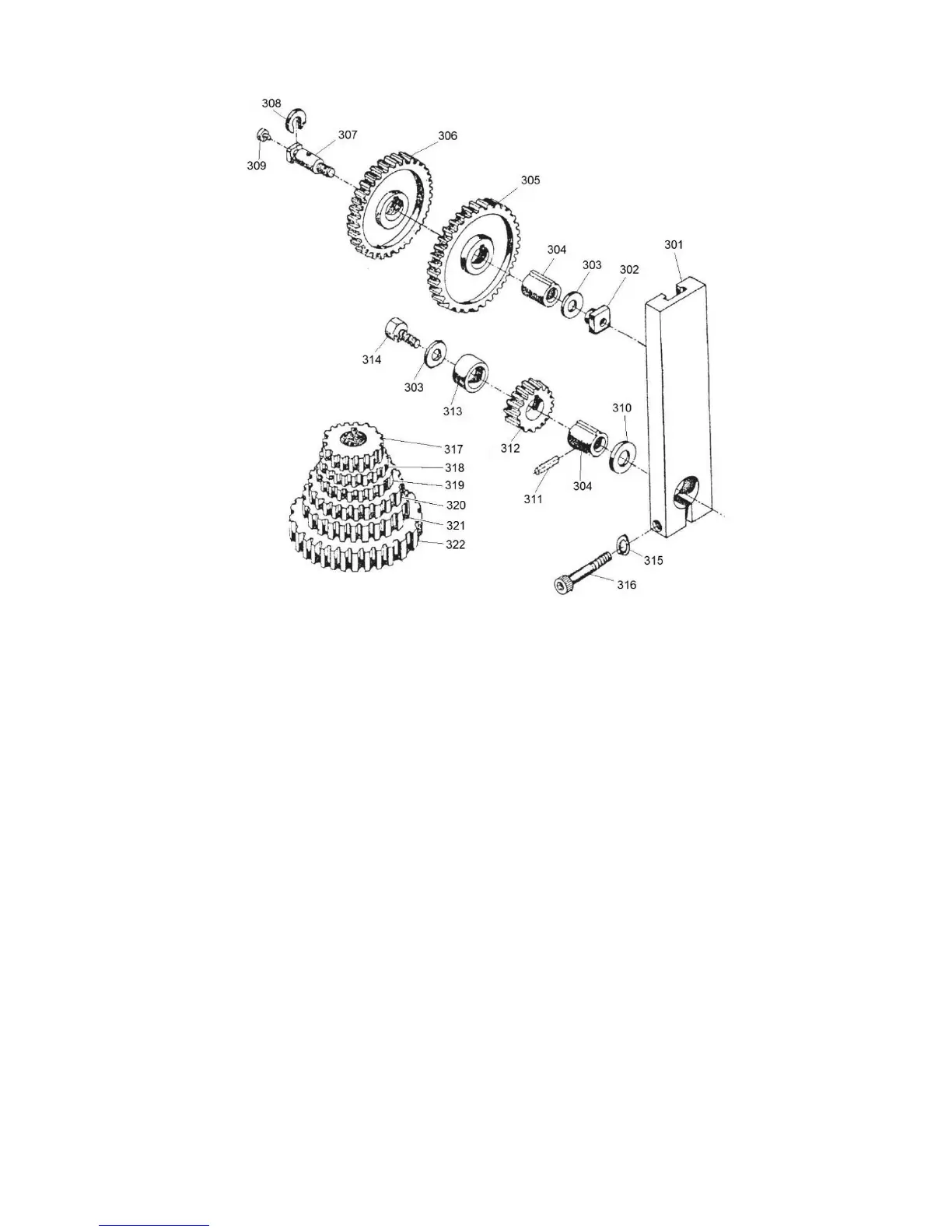

13.4.1 Change Gears – Exploded View
13.4.2 Change Gears – Parts List
Index No. Part No. Description Size Qty
301 ............ BDB919-301 .............. Bracket..................................................................... ...................................... 1
302 ............ BDB919-302 .............. T-Nut ........................................................................ ...................................... 1
303 ............ BDB919-303 .............. Flat Washer, spcl ..................................................... ...................................... 2
304 ............ BDB919-304 .............. Keyed Bushing ........................................................ ...................................... 2
305 ............ BDB919-305 .............. Gear ......................................................................... 127T .............................. 1
306 ............ BDB919-306 .............. Gear ......................................................................... 120T .............................. 1
307 ............ BDB919-307 .............. Shaft ........................................................................ ...................................... 1
308 ............ BDB919-025 .............. C-Washer................................................................. 20mm ............................ 1
309 ............ BDB919-021 .............. Ball Oiler .................................................................. 6mm .............................. 1
310 ............ BDB919-310 .............. Washer .................................................................... ...................................... 1
311 ............ F012070 .................... Roll Pin .................................................................... 4x12mm ........................ 1
312 ............ BDB919-312 .............. Gear ......................................................................... 56T ................................ 1
313 ............ BDB919-313 .............. Spacing Ring ........................................................... ...................................... 1
314 ............ TS-1503011 .............. Hex Socket Hd Cap Screw ...................................... M6-1.0X8 ...................... 1
315 ............ TS-2361061 .............. Lock Washer ............................................................ 6mm .............................. 1
316 ............ TS-1503081 .............. Hex Socket Hd Cap Screw ...................................... M6-1.0X35 .................... 1
317 ............ BDB919-317 .............. Gear ......................................................................... 30T ................................ 1
318 ............ BDB919-318 .............. Gear ......................................................................... 32T ................................ 2
319 ............ BDB919-319 .............. Gear ......................................................................... 38T ................................ 1
320 ............ BDB919-320 .............. Gear ......................................................................... 40T ................................ 1
321 ............ BDB919-321 .............. Gear ......................................................................... 44T ................................ 1
322 ............ BDB919-322 .............. Gear ......................................................................... 45T ................................ 1
323 ............ BDB919-323 .............. Gear ......................................................................... 46T ................................ 1
324 ............ BDB919-324 .............. Gear ......................................................................... 48T ................................ 1
325 ............ BDB919-325 .............. Gear ......................................................................... 52T ................................ 1
