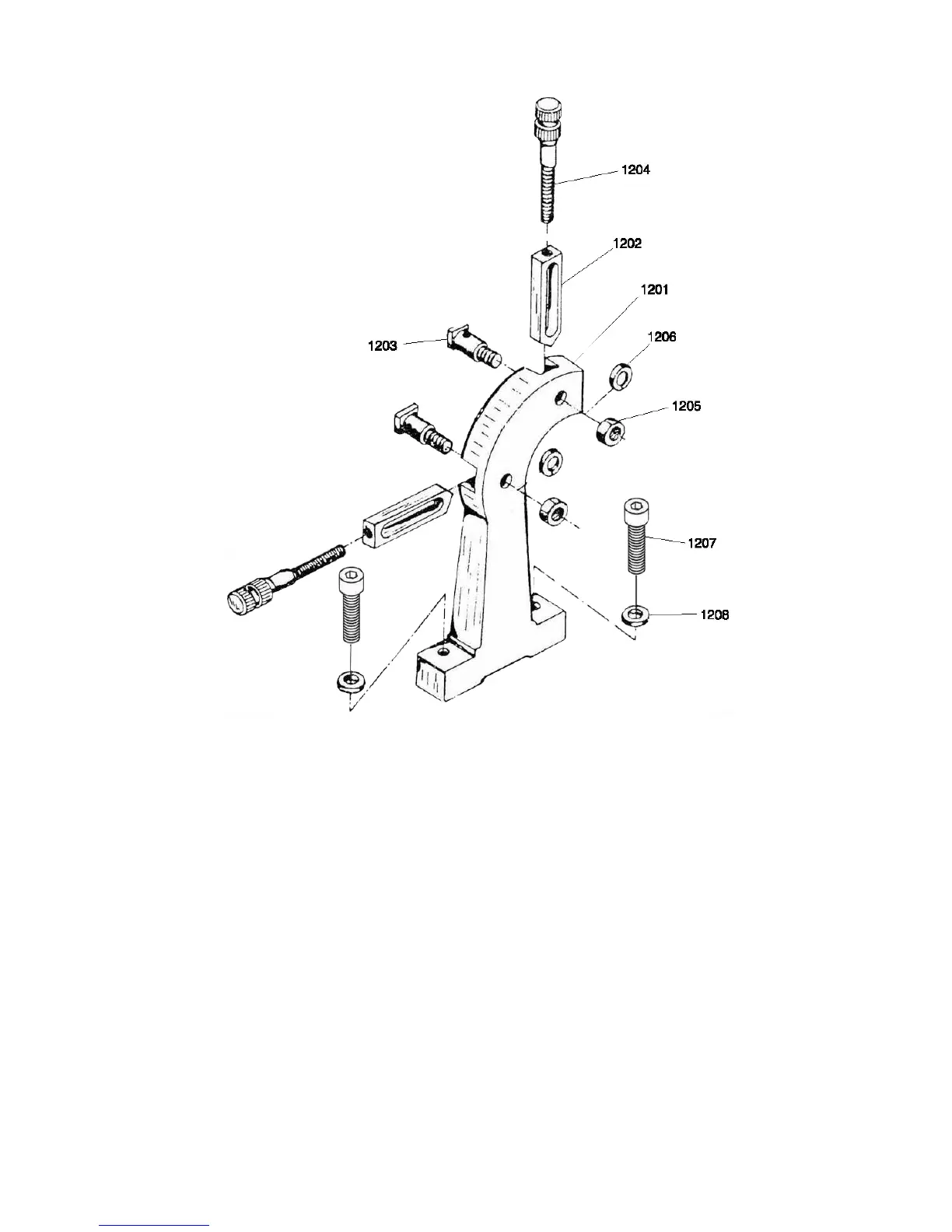

13.14.1 Follow Rest – Exploded View
13.14.2 Follow Rest – Parts List
Index No. Part No. Description Size Qty
1201 .......... BDB919-1201 ............ Follow Rest Casting ................................................. ...................................... 1
1202 .......... BDB919-1202 ............ Jaw .......................................................................... ...................................... 2
1203 .......... BDB919-1203 ............ Screw ....................................................................... ...................................... 2
1204 .......... BDB919-1204 ............ Adjusting Screw ....................................................... ...................................... 2
1205 .......... TS-1541031 .............. Hex Nut .................................................................... M8 ................................. 2
1206 .......... TS-2361081 .............. Lock Washer ............................................................ 8mm .............................. 2
1207 .......... TS-1503071 .............. Hex Socket Hd Cap Screw ...................................... M6X30 .......................... 2
1208 .......... TS-2361061 .............. Lock Washer ............................................................ 6mm .............................. 2
