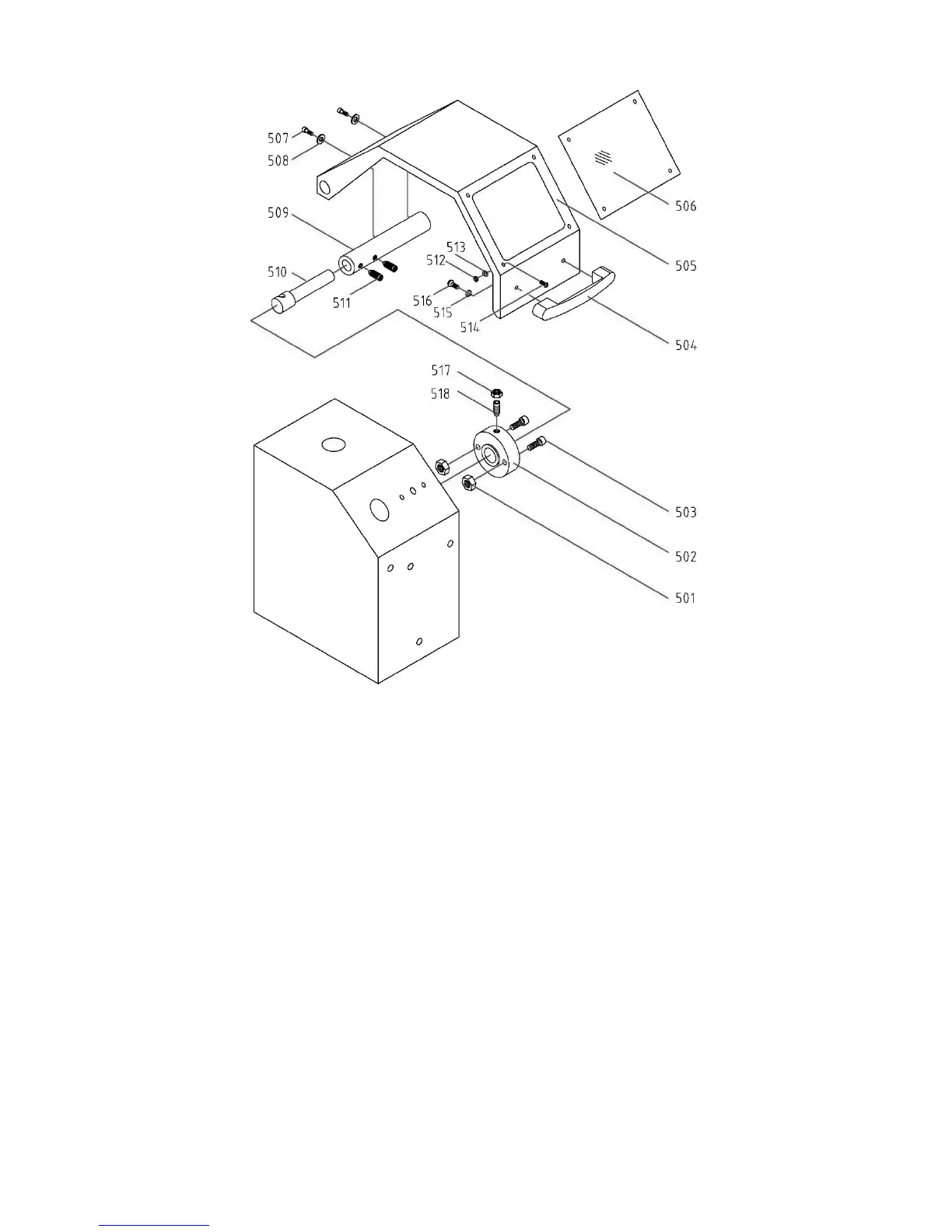

13.6.1 Chuck Guard – Exploded View

13.6.2 Chuck Guard – Parts List

Index No. Part No. Description Size Qty

501 ............ TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 2

502 ............ BDB919-502 .............. Bracket..................................................................... ...................................... 1

503 ............ TS-1502021 .............. Hex Socket Hd Cap Screw ...................................... M5-0.8x20 ..................... 2

504 ............ BDB919-504 .............. U-Handle.................................................................. ...................................... 1

505 ............ BDB919-505 .............. Chuck Cover ............................................................ ...................................... 1

506 ............ BDB919-506 .............. Acrylic Sheet ............................................................ ...................................... 1

507 ............ TS-1502021 .............. Hex Socket Hd Cap Screw ...................................... M5-0.8x10 ..................... 2

508 ............ TS-1550031 .............. Flat Washer ............................................................. 5mm .............................. 2

509 ............ BDB919-509 .............. Tube......................................................................... ...................................... 1

510 ............ BDB919-510 .............. Shaft ........................................................................ ...................................... 1

511 ............ TS-1522011 .............. Socket Set Screw .................................................... M5-0.8X6 ...................... 2

512 ............ TS-1540011 .............. Hex Nut .................................................................... M3 ................................. 4

513 ............ TS-1550011 .............. Flat Washer ............................................................. 3mm .............................. 4

514 ............ F009922 .................... Socket Hd Button Screw .......................................... M3-0.5X6 ...................... 4

515 ............ TS-1550021 .............. Flat Washer ............................................................. 4mm .............................. 2

516 ............ F009923 .................... Socket Hd Button Screw .......................................... M4-0.7X6 ...................... 2

517 ............ TS-1540041 .............. Hex Nut .................................................................... M6 ................................. 1

518 ............ TS-1523071 .............. Socket Set Screw .................................................... M6-1.0X25 .................... 1
