JetCat RX Series User Manual

PAGE 18 of 54

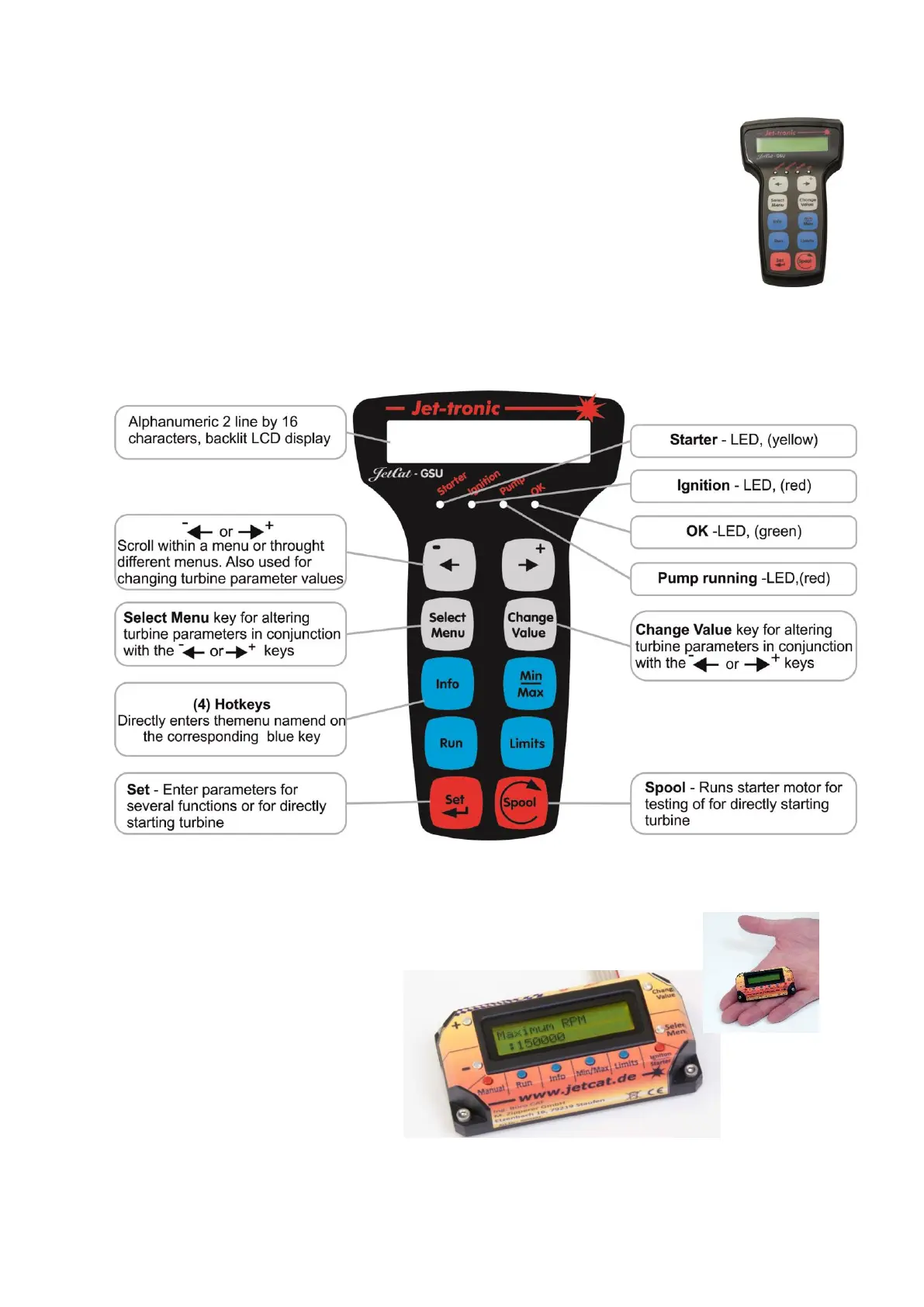

Ground Support Unit (GSU)
The GSU serves as a terminal for displaying and programming turbine parameters. It
may be connected or disconnected at any time. The real time nature of the ECU allows
the operator to adjust the turbine’s parameters, even when the turbine is running.
GSU Control Panel Descriptions
OPTIONAL: Mini GSU, Part# 61161-00
With all the functionality of the larger
version and, because of its small size
and weight, it can be mounted in the
model providing direct access to all
information and functions.

JetCat RX Series Specifications

General

Type	Turbine
Thrust	22 - 240 N
Thrust Range	22 - 240 N
Weight	0.5 - 3.5 kg
Diameter	80 - 150 mm
Fuel	Kerosene
Lubrication	5% Turbine Oil mixed with Fuel
Starter	Electric
