JetCat RX Series User Manual

PAGE 8 of 54
Quick Start section for RX turbines with V10 ECU
This section covers just the very basics to get your JetCat turbine up and running. However, it is not a
substitute for reading and understanding the manual in its entirety. There are many great features and
options not cover in this section that are fully explained later.
 Identify components
 Mounting turbine support equipment
 Mounting turbine and fitting to tail pipe
 Fuel and electrical connections
 Battery power
 GSU and I/O board
 ECU power, setting failsafe and learn R/C
 Preparing fuel and fuel system
 Starting and stopping the turbine
 Running states
 Troubleshooting

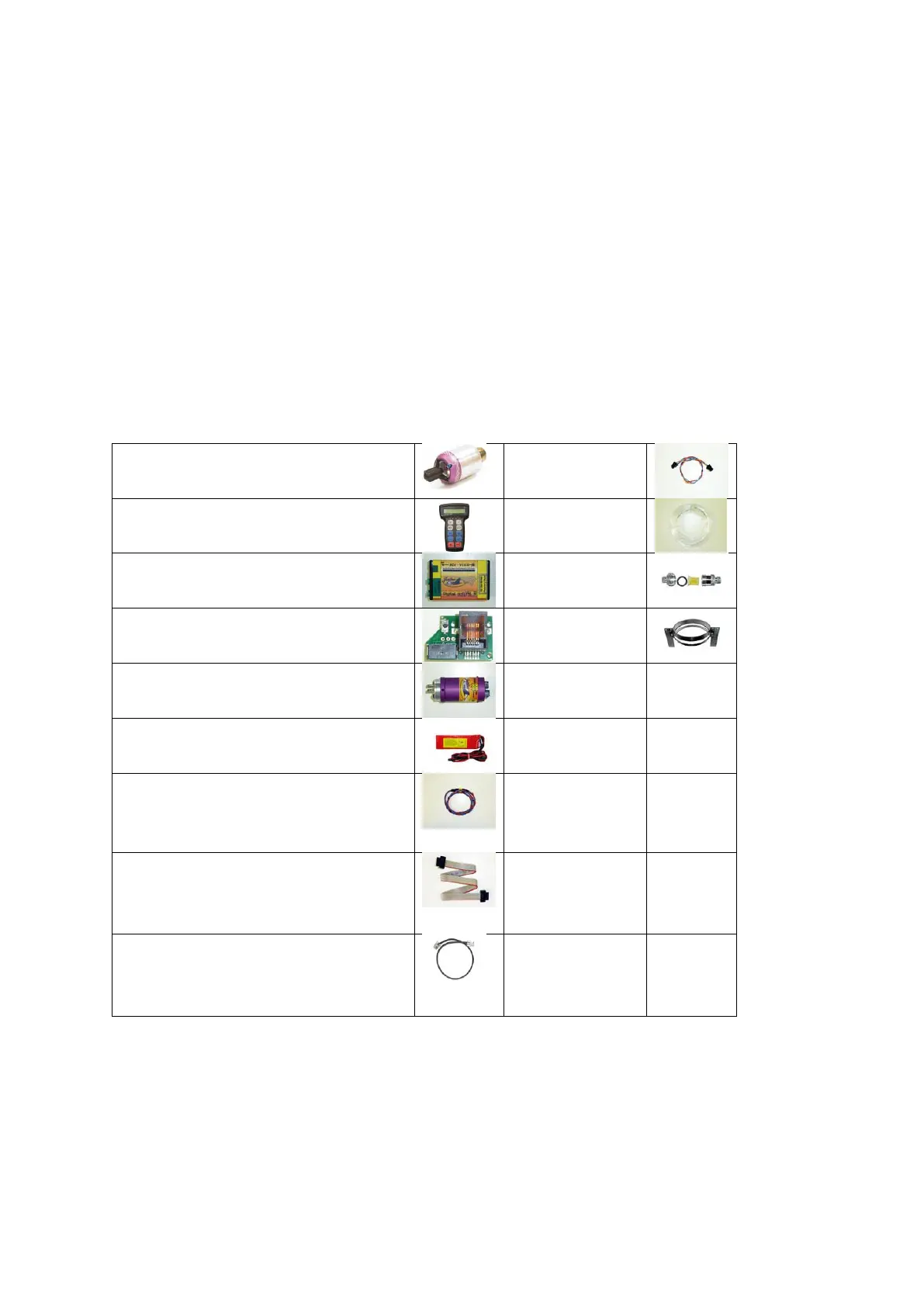

Identify components
1 – Turbine engine
1 – Pump Cable
(only RX)
1 – GSU, Ground Support Unit (Terminal)
1 – Fuel Line
1 – ECU, Electronic Control Unit
1 – Fuel Filter
(only RX)
1 – Mini I/O board
1 – Turbine Mount
1 – Pump (only RX)
1 – Battery Pack
1 – Turbine Power/Data Cable
1 – I/O Board Flat Cable
1 – GSU Data Cable

JetCat RX Series Specifications

General

Type	Turbine
Thrust	22 - 240 N
Thrust Range	22 - 240 N
Weight	0.5 - 3.5 kg
Diameter	80 - 150 mm
Fuel	Kerosene
Lubrication	5% Turbine Oil mixed with Fuel
Starter	Electric
