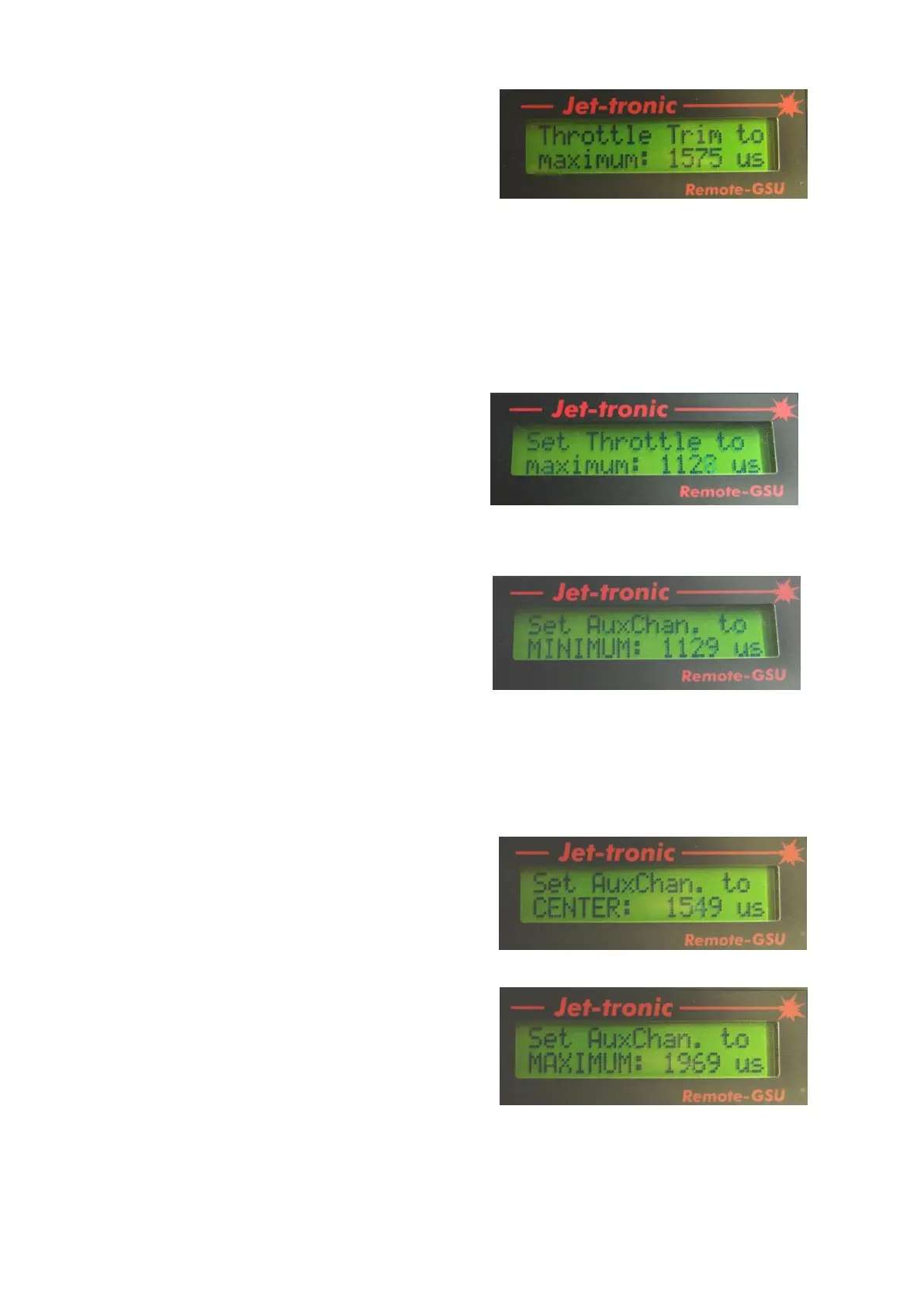

The GSU screen will display:
Throttle channel “Idle” position
5. Advance the throttle trim lever to maximum. Press Select Menu or the LED I/O board button switch
again to store the R/C system’s pulse width for the turbine idle position. The red Pump running
LED will turn off and the yellow Standby LED will illuminate.
The GSU screen will display:
Throttle channel “Full Power” position
6. Advance the throttle stick to maximum. Press Select Menu or the LED I/O board button switch
again to store the R/C system’s pulse width for the turbine full power position. The yellow Standby
LED will turn off. If your ECU is set up for single channel operation skip to instruction number 11.
The GSU screen will display:
AUX channel minimum “Off” position.
7. If the ECU is set for two channel operation, continue to program the auxiliary channel. The green
OK LED will illuminate again and initiates the learn mode for the three-position auxiliary channel.
8. Move the auxiliary channel to the minimum position for Off and press Select Menu or the LED I/O
board button switch again to store the R/C system’s pulse width for immediate shutdown of the
turbine. The green OK LED will turn off and the red Pump running LED will illuminate.
The GSU screen will display:
AUX channel center “Start/Standby” position
9. Set the auxiliary channel to the middle position
for Start/Standby and press Select Menu or the
LED I/O board button switch again to store the R/C system’s pulse width for the turbine to start and
run. The red Pump running LED will turn off and
the yellow Standby LED will illuminate.
The GSU screen will display:
AUX channel maximum “Auto-Off” position
10. Set the auxiliary channel to the maximum position for Auto-Off and press Select Menu or the LED
I/O board button switch again to store the R/C system’s pulse width for a normal auto shut-off of the
engine. The yellow Standby LED will turn off.
