TwinForce™ Series Waterblast Unit
10. Once all of the bolts are removed, lift the
manifold off the pump (Figure 63).
Note: The weight of the manifold is
approximately:
• 3000 Series: 90 lb. (41 kg)
• 3600/4200 Series: 165 lb. (75 kg)
11. Remove the water lubrication tting (Fig-
ure 64) from each stufng box.
12. Remove the two bolts that secure each
plunger coupling (Figure 65) to the plung-
ers and remove the three couplings.
Note: The coupling halves are matched
and must be kept together.
!!
CAUTION
Use two people to lift the manifold. The Manifold
is heavy and failure to use two people may cause
serious injury.

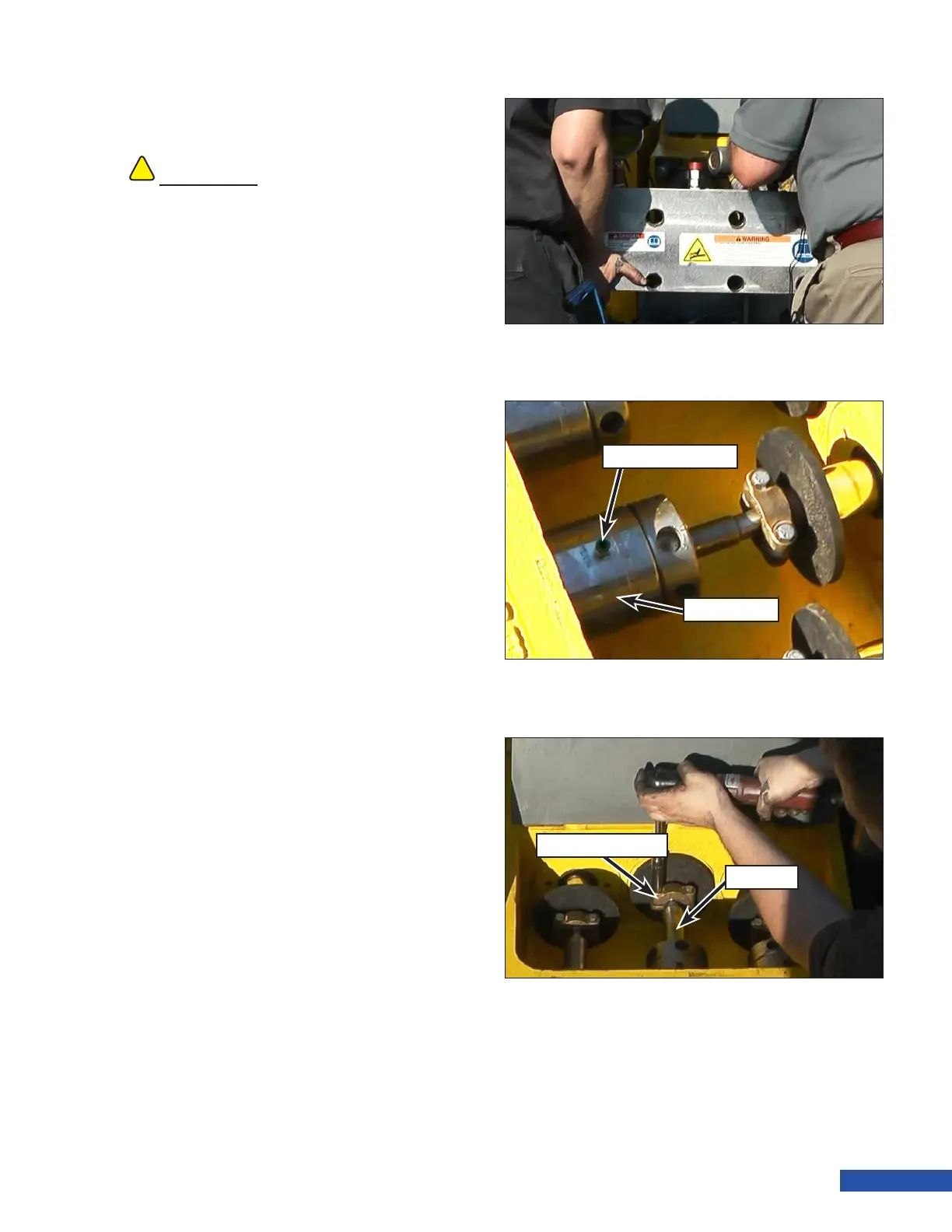

Figure 63: Manifold Removal.
Figure 64: Lubrication Fittings.
Lubrication Fitting
Stuffing Box
Figure 65: Plunger Coupling Removal.
Plunger
Plunger Coupling
