SECTION 3 - TROUBLESHOOTING
3-34 – JLG Lift – 3120240

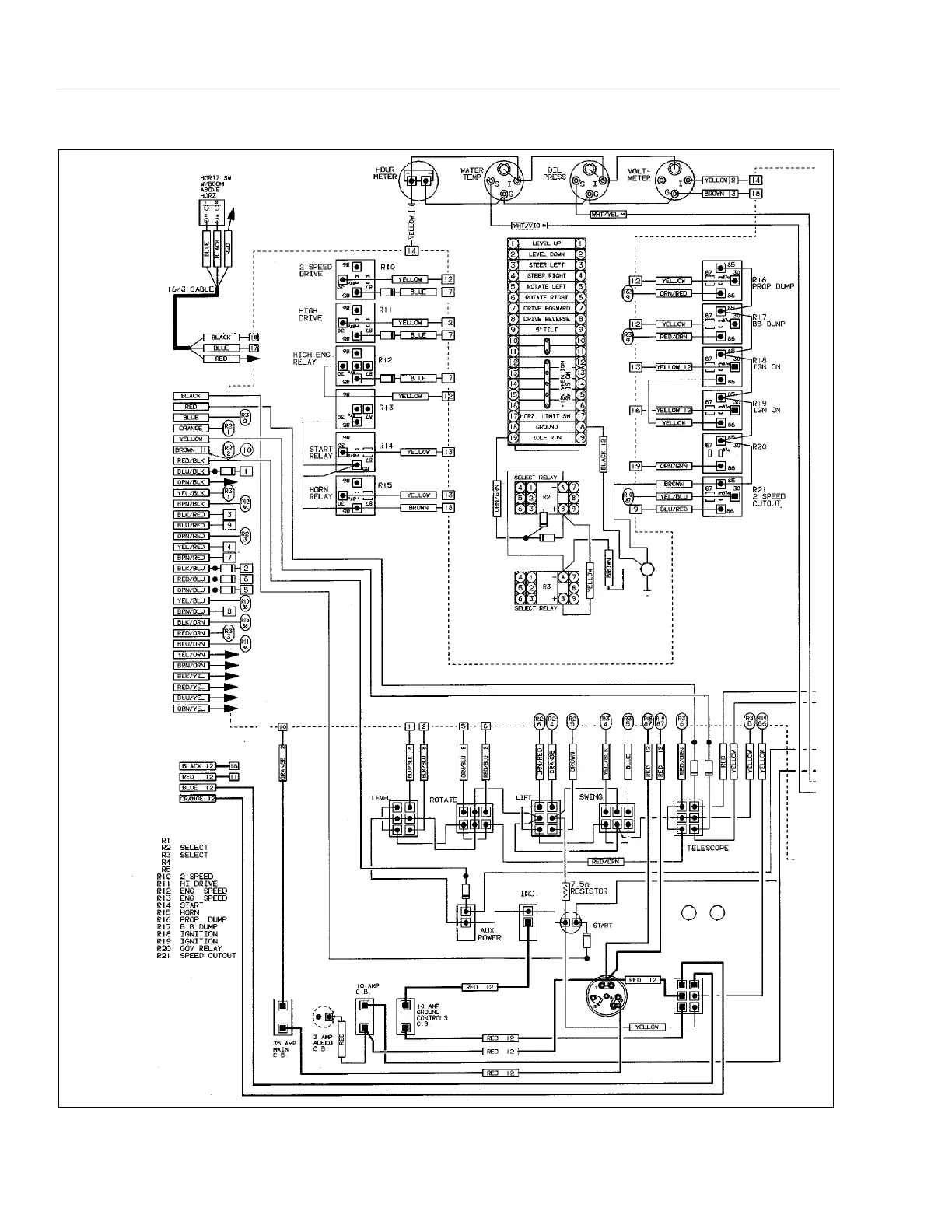

Figure 3-15. Wiring Diagram - Standard (Ford Lrg425 Dis Engine W/ Standard Controls) (Sheet 1 Of 2).
Updated 10/98
