SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-16 ā€“ JLG Lift ā€“ 3121325
Glow Plugs
Engine Solenoid Fuse
1. 30 amp Fuses
2. Timer Relay N6
3. Relay K3

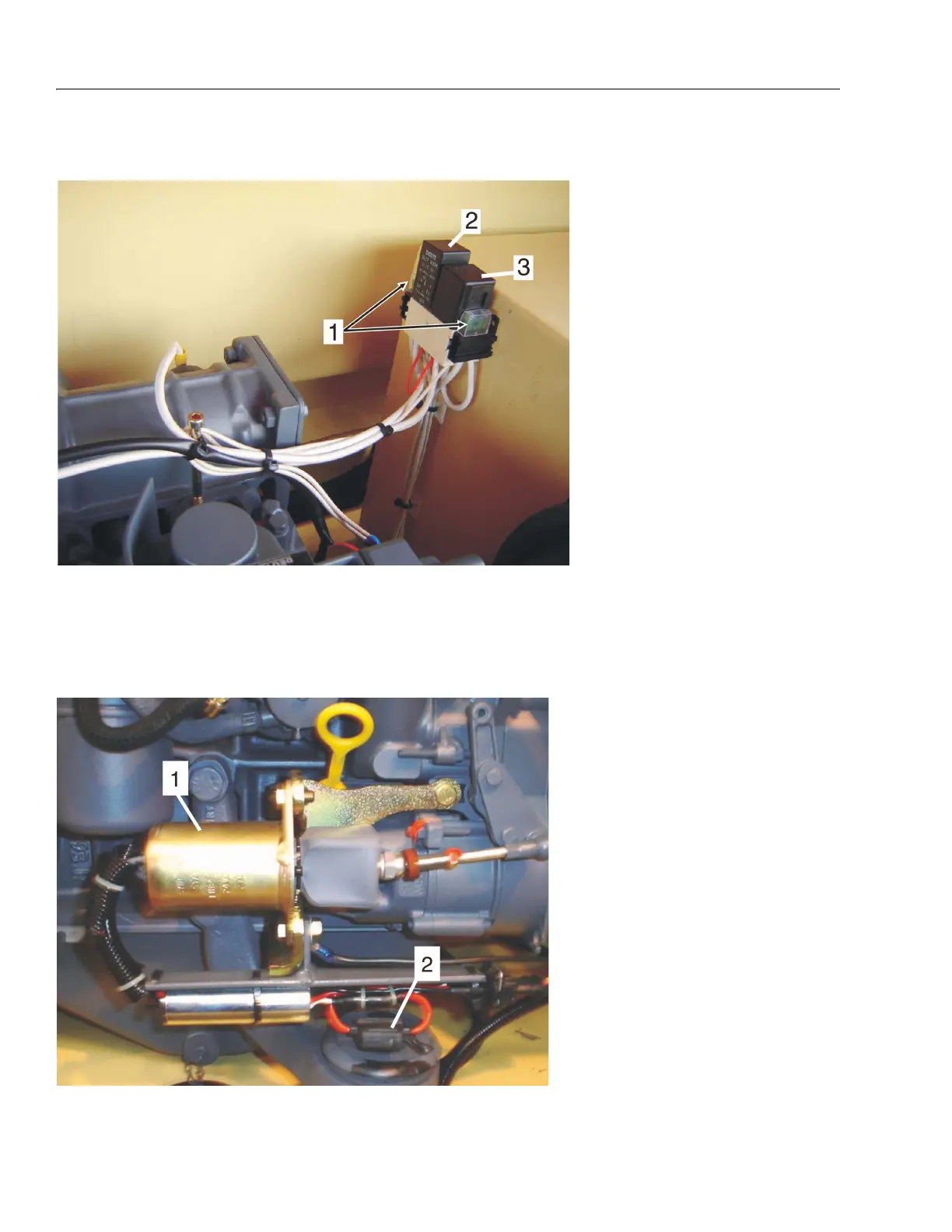

Figure 3-13. Glow Plugs
1. Solenoid
2. 30 amp Fuse
Figure 3-14. Engine Solenoid
