Scissor Arm Assembly Removal
EXTREME CAUTION MUST BE USED WHILE REMOVING ANY
LARGE COMPONENTS. THESE COMPONENTS ARE EXTREMELY
HEAVY AND CAN CAUSE SERIOUS INJURY OR DEATH IF NOT
REMOVED CAUTIOUSLY.
NOTE: It is recommended to remove the scissor arm
assembly as a whole unit.
1. Remove the platform from the scissor arm assembly
(refer to Figure 3-32., Platform Removal - 1 of 2
(Front of Platform) and Figure 3-33., Platform
Removal - 2 of 2 (Rear of Platform)).
2. Disconnect all hoses and wires connecting the scis-
sor assembly to the chassis and platform.

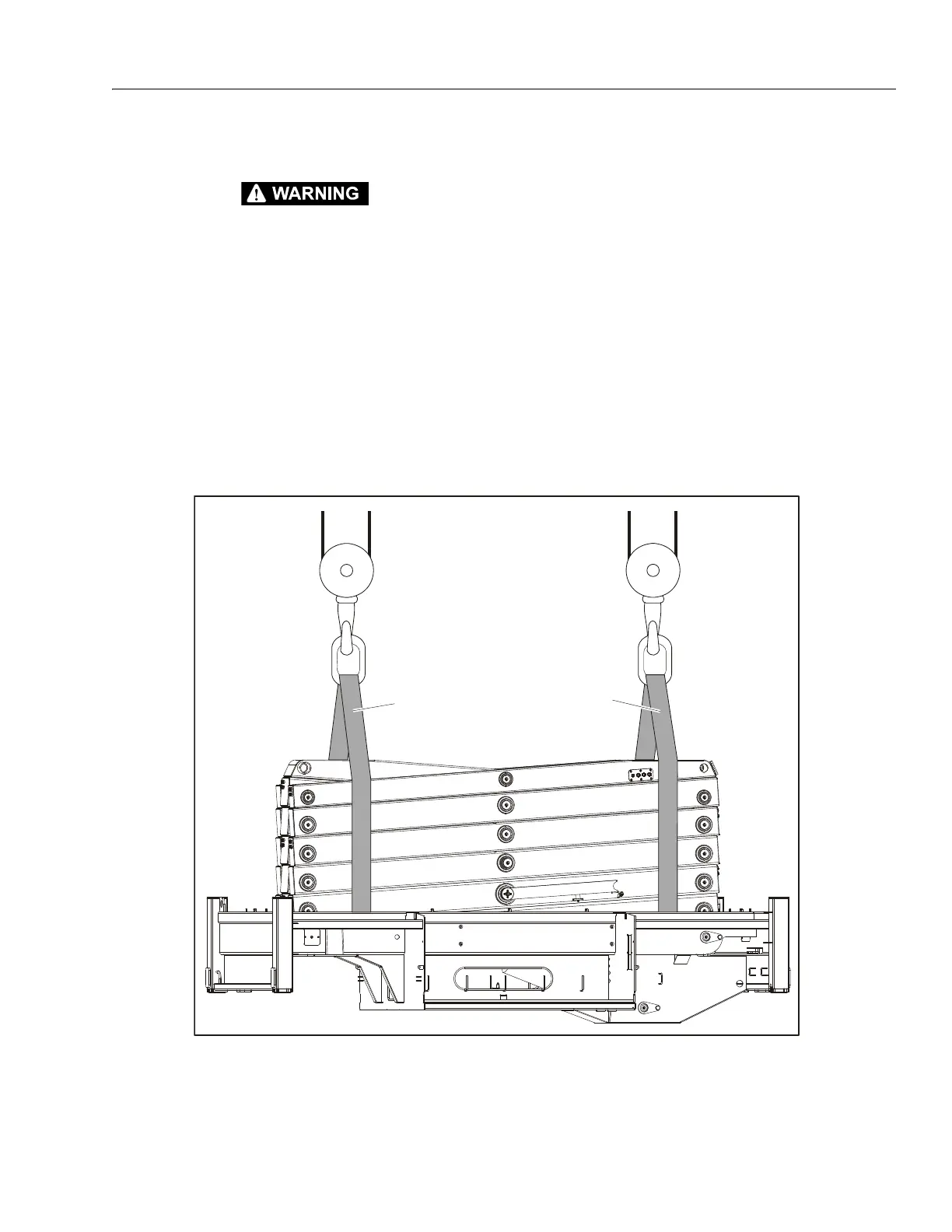

3. Secure scissor arm assembly with two lifting straps
attached to an overhead lifting device.
NOTE: Scissor arm assembly weighs approximately 15,653
lbs (7100 kg). Straps and lifting device must be
capable of lifting the scissor assembly.
