JLG 80SL - Lifting Cylinder Assembly

SECTION 4 - HYDRAULICS
3121325 – JLG Lift – 4-11
2
2
1
9
8
7
10
5
3
6
4
11
2
2
18
13
14
17
16
13
15
12
1. Piston Rod
2. Bushing
3. Piston
4. Piston Seal
5. O-Ring
6. Setscrew
7. Cylinder Head
8. Wiper
9. Rod Seal
10. O-Ring
11. Cylinder Barrel
12. Lift/Lower Valve
13. Solenoid Valve
14. Check Valve
15. Capscrew (M8 x 120mm)
16. Hydraulic Block
17. Pressure Sensor
18. O-Ring

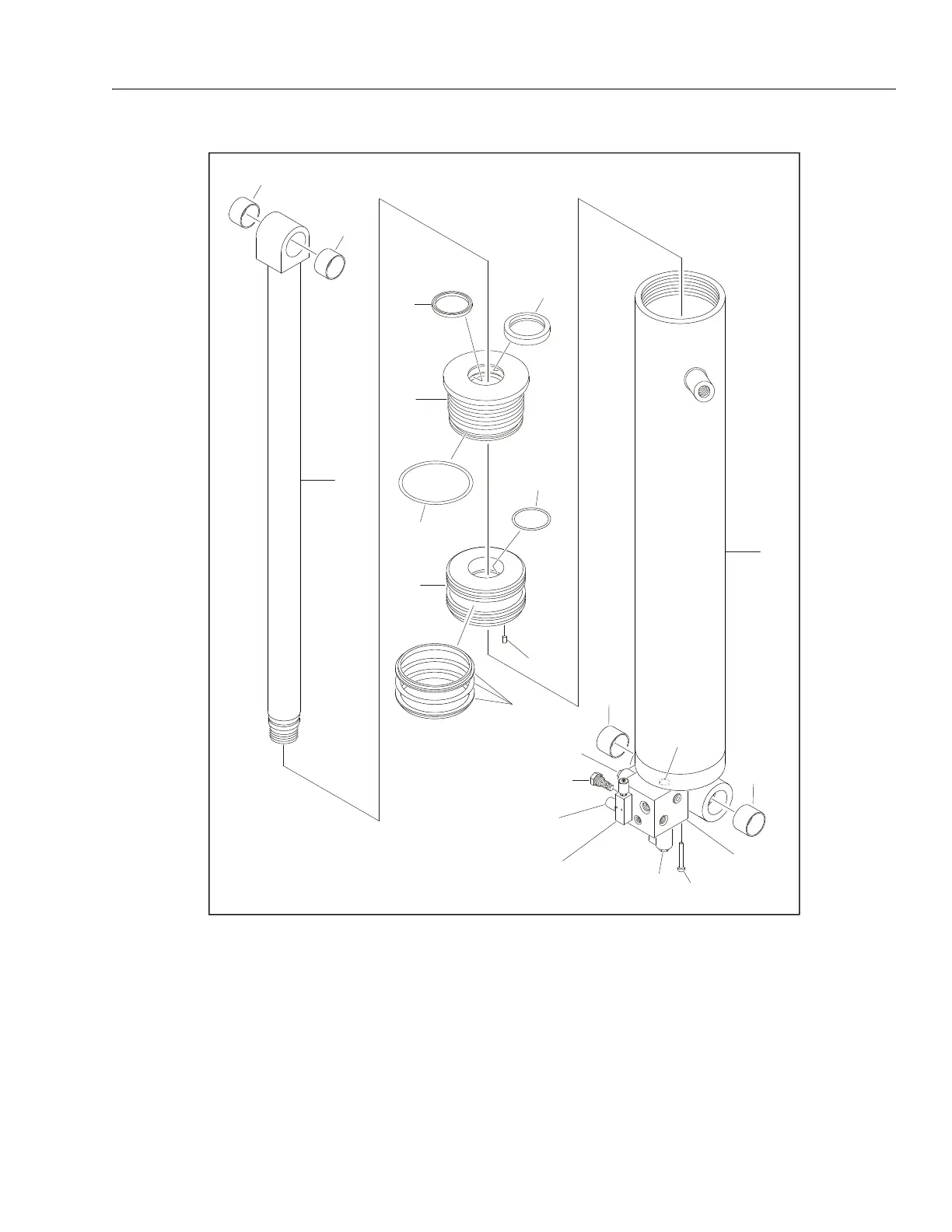

Figure 4-26. Lifting Cylinder Assembly
