SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-36 ā JLG Lift ā 3121325
3.12 LADDER INSTALLATION
Removal:
1. The ladder can easily be removed from the chassis
by removing the four Bolts (2), Spring Lockwashers
(3), and Flatwashers (4).
USE CAUTION WHEN REMOVING THE LADDER. THE LADDER
WEIGHS APPROXIMATELY 104 LBS (47.2 KG).
Installation:
1. Lift ladder so that the four mounting brackets align
with the bolt holes on the chassis.
2. Secure ladder to the chassis with the four Bolts (2),
Spring Lockwashers (3), and Flatwashers (4).
1. Ladder
2. Bolt, M10 x 25mm
3. Spring Lockwasher, M10
4. Flatwasher, M10 (if applicable)

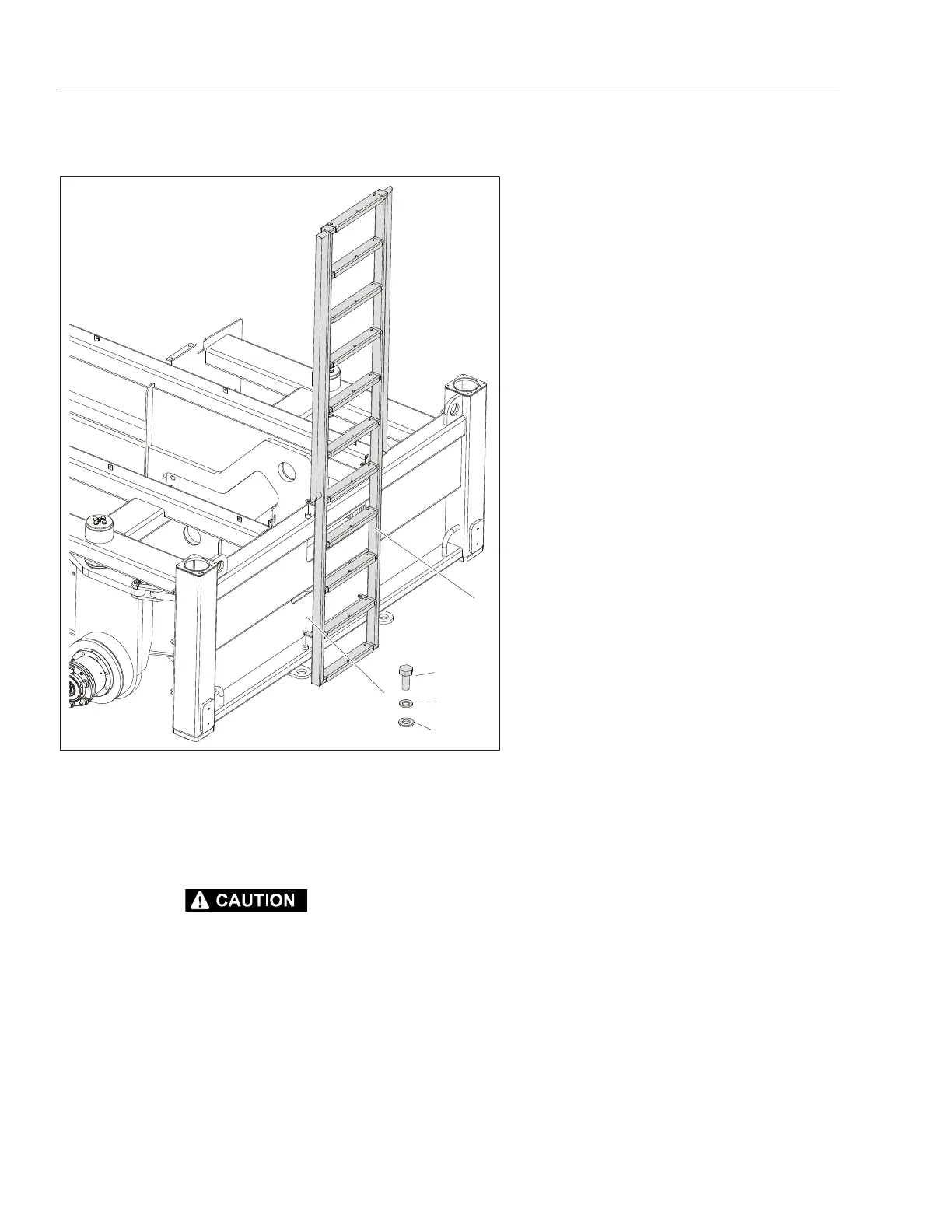

Figure 3-34. Ladder Installation
