SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-28 – JLG Lift – 3121325

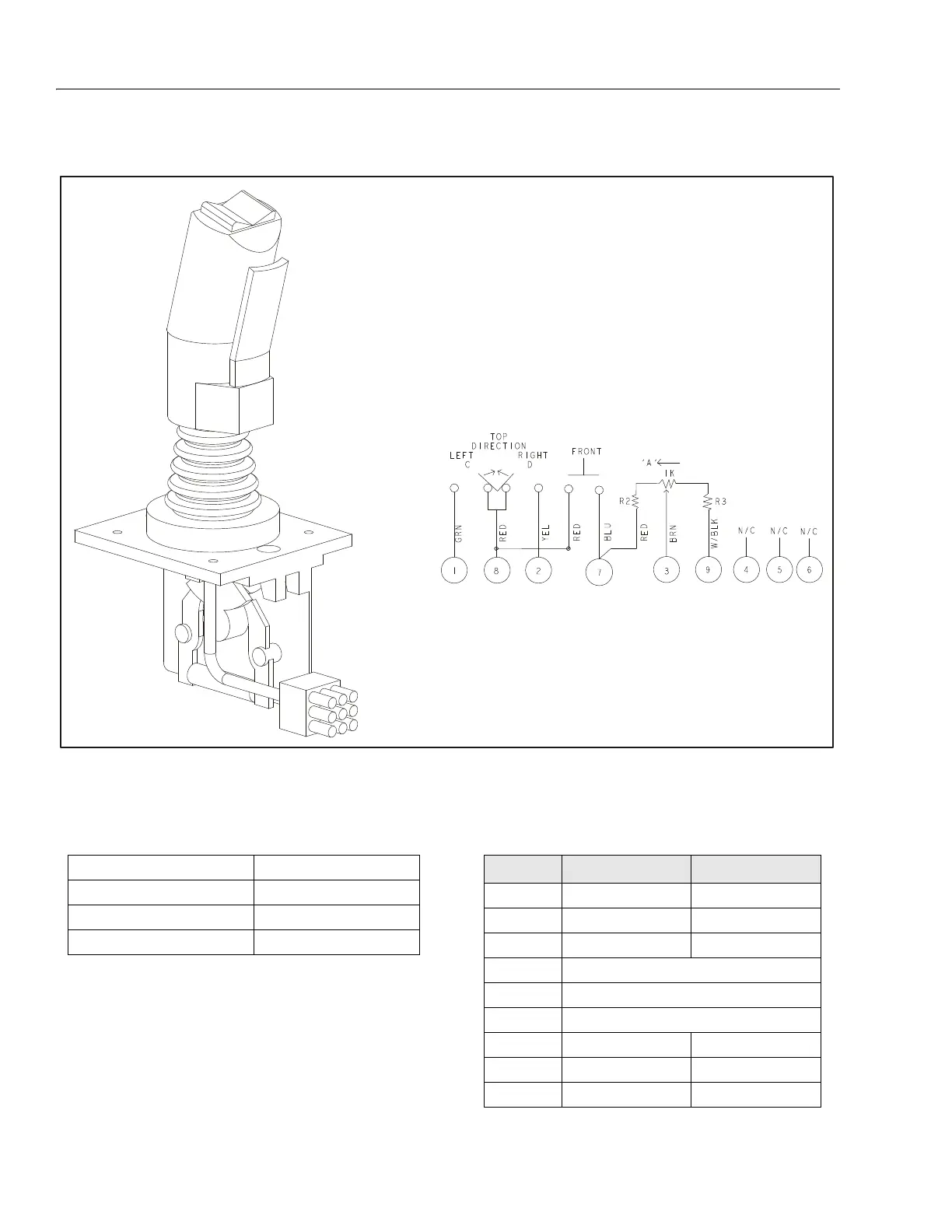

Joystick Controller
Table 3-6. Joystick Specifications
Input Voltage 24V (±0.05V)
Centered Output Voltage 12V (±0.25V)
Reverse Voltage 5.5 - 6.5V
Forward Voltage 17.5 - 18.5V
Table 3-7. Plug Loading Chart
Terminal Color Function
1 Green Steer Left
2 Yellow Steer Right
3Brown Pot Out
4N/C
5N/C
6N/C
7Blue 24V In
8 Red Enable / 24V Out
9White / Black Ground
