JLG 80SL - Platform Removal - 2 of 2 (Rear of Platform)

SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121325 – JLG Lift – 3-35
Platform Removal:
NOTE: Procedures apply to both left and right sides.
1. Support the platform along the sides with the fork-
truck forks or use suitable straps or chains at the
four corners of the platform.
2. Remove the fourteen Bolts (2) and Lockwashers (3)
attaching both Platform Retaining Brackets (1) to the
Platform.
3. Lift the platform from the armstack.
Installation:
1. The removal steps should be followed in reverse
order when installing the platform.
2, 3
2, 3
2, 3
2, 3
2, 3
2, 3
1
1. Platform Retaining Bracket
2. Bolt, M10 x 16mm
3. Lockwasher, M10

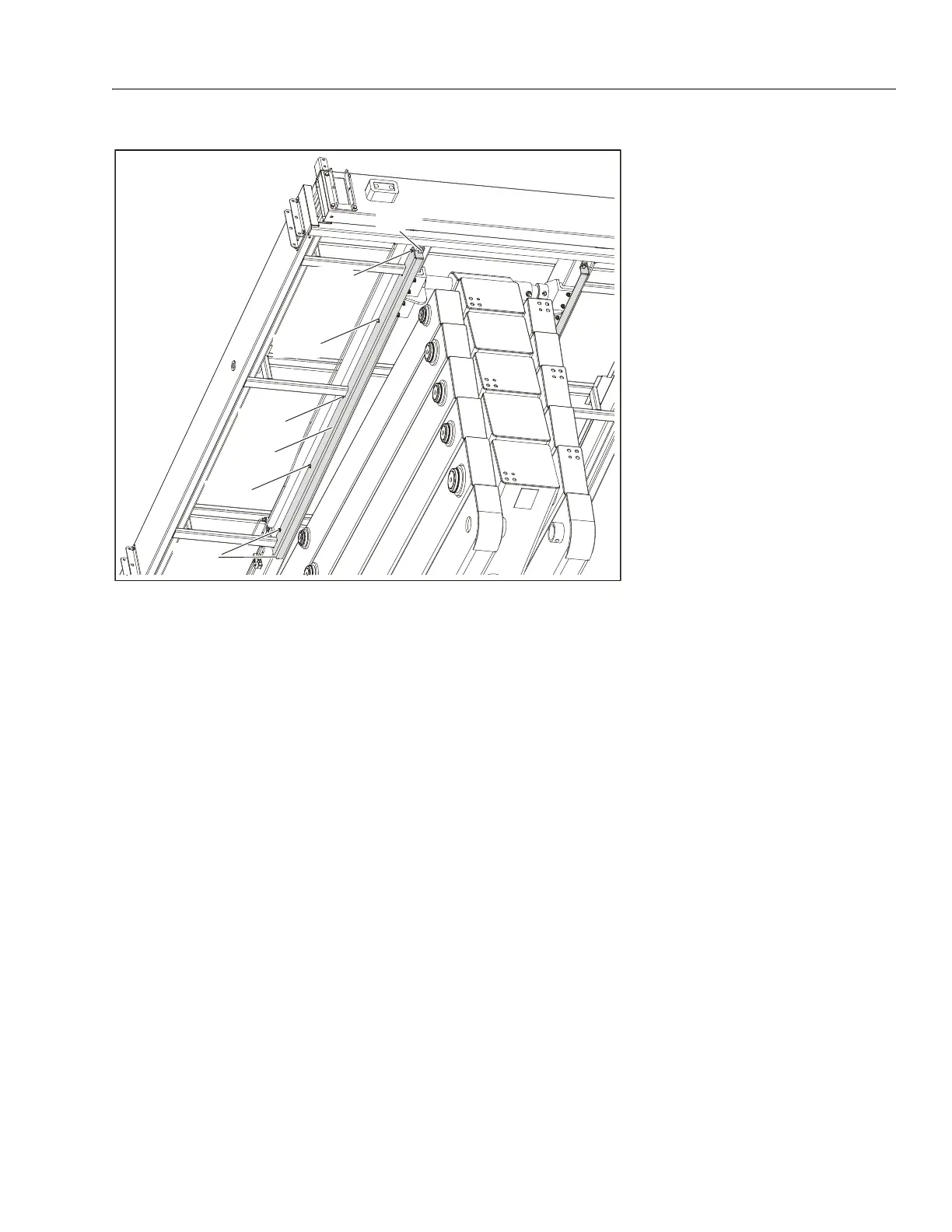

Figure 3-33. Platform Removal - 2 of 2 (Rear of Platform)
NOTE: Illustration shows scissor arm assembly connection point to
underside of platform at the rear of the platform.
