Main Platform End Rails
Removal:
1. If applicable, disconnect end rails (1,2,3) from side
rails. (see removal instructions for side rails on pre-
vious page).
2. Remove Cotter Pins (5) from Pins (6) on rail legs.
3. Fold rails down to the stowed position.
4. Remove Bolts (7), Flatwashers (8), Locknuts (10),
and Chain Assembly Mounting Plates (9).
5. Carefully remove the rail.
6. The Gate (3) can be detached from the right side
End Rail (1) by removing the screws on the two
Hinges (11).
Installation:
NOTE: Place the rail(s) on the platform in their stowed posi-
tion when installing.
1. Follow the removal instructions in reverse order.
2. Attach End Rails to Side Rails via the pins in Figure
3-28.
1
2
3
5
6
7
8
9
10
8
11
4
1. End Rail (right side)
2. End Rail (left side)
3. Gate
4. Platform
5. Cotter Pin
6. Pin
7. Bolt, M10 x 120mm
8. Flatwasher, M10
9. Chain Assembly Mounting Plate
10. Locknut, M10
11. Hinge

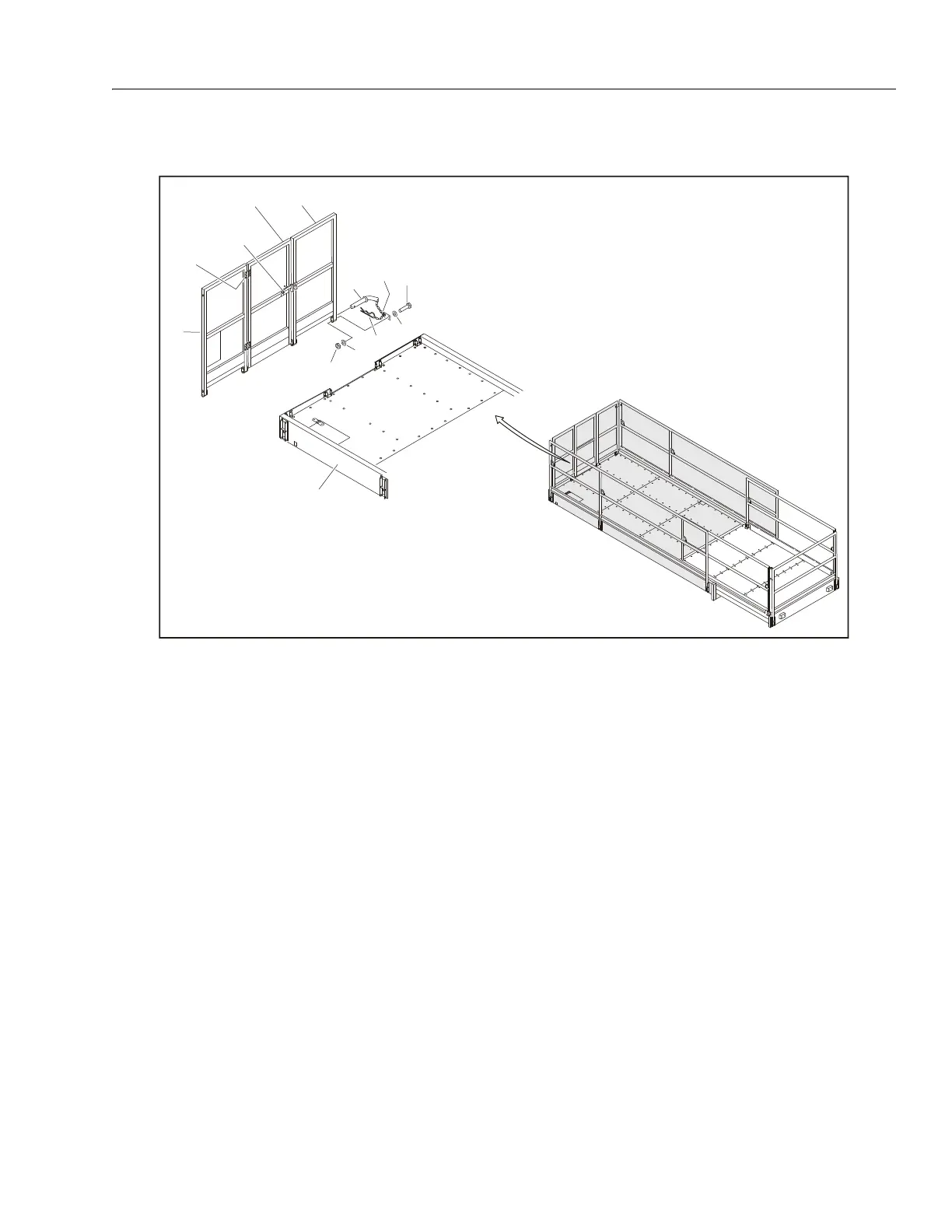

Figure 3-29. End Rail Removal
