SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121325 ā JLG Lift ā 3-27
3.11 PLATFORM
Platform Control Box
For access to the inside of the platform control box, follow
these steps:
1. Disconnect platform control box connector from the
machine.
2. Remove the six Screws (3) securing the Control Box
Lid (1) to the Control Box (2).
3. Carefully lift the lid from the box.
4. At this point, wires, plugs, and other parts may be
disconnected for repair/replacement.
NOTE: When assembling the platform control box, be care-
ful not to pinch wires when replacing the lid back
onto the box.

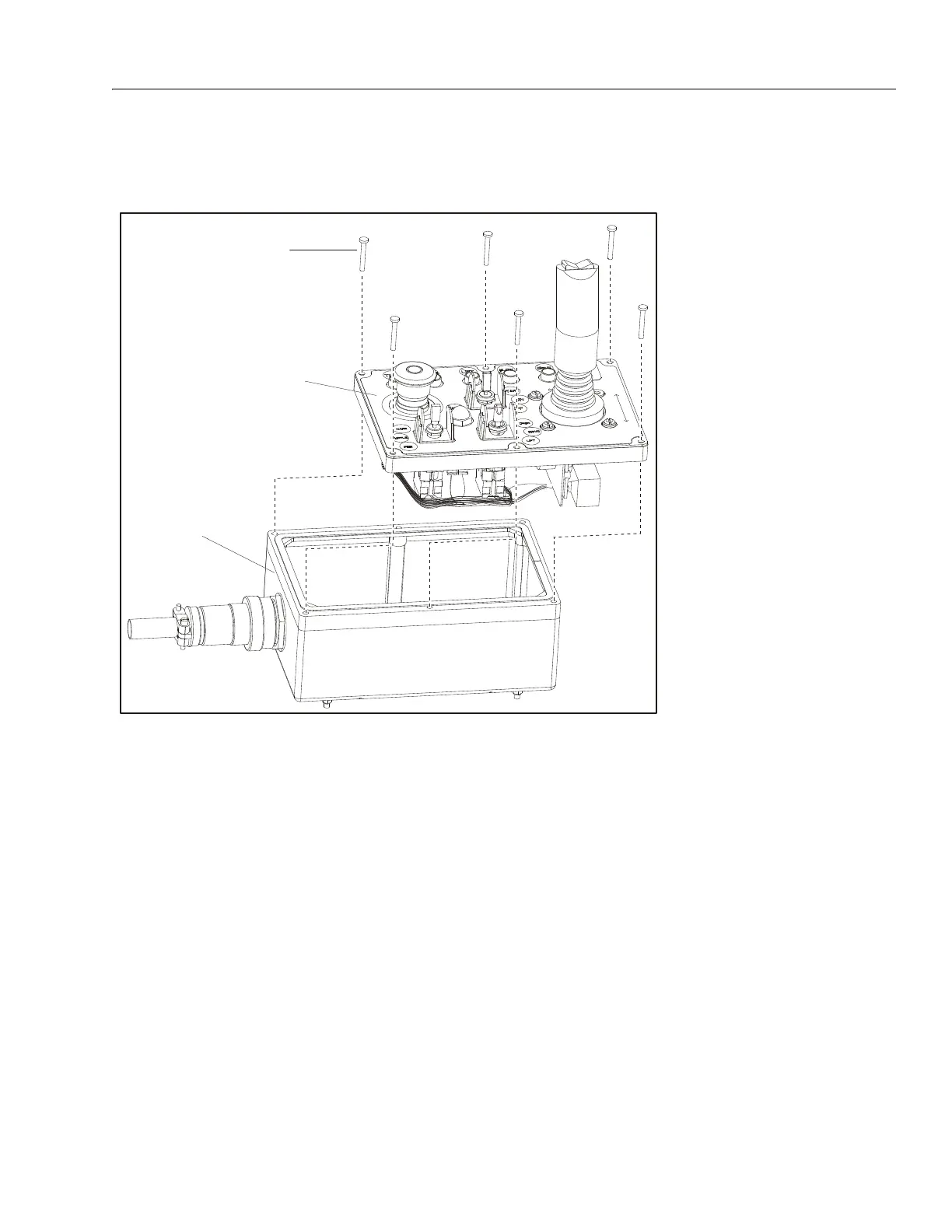

1. Control Box Lid
2. Control Box
3. Screw, M4 x 30
Figure 3-25. Platform Control Box
