PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 13

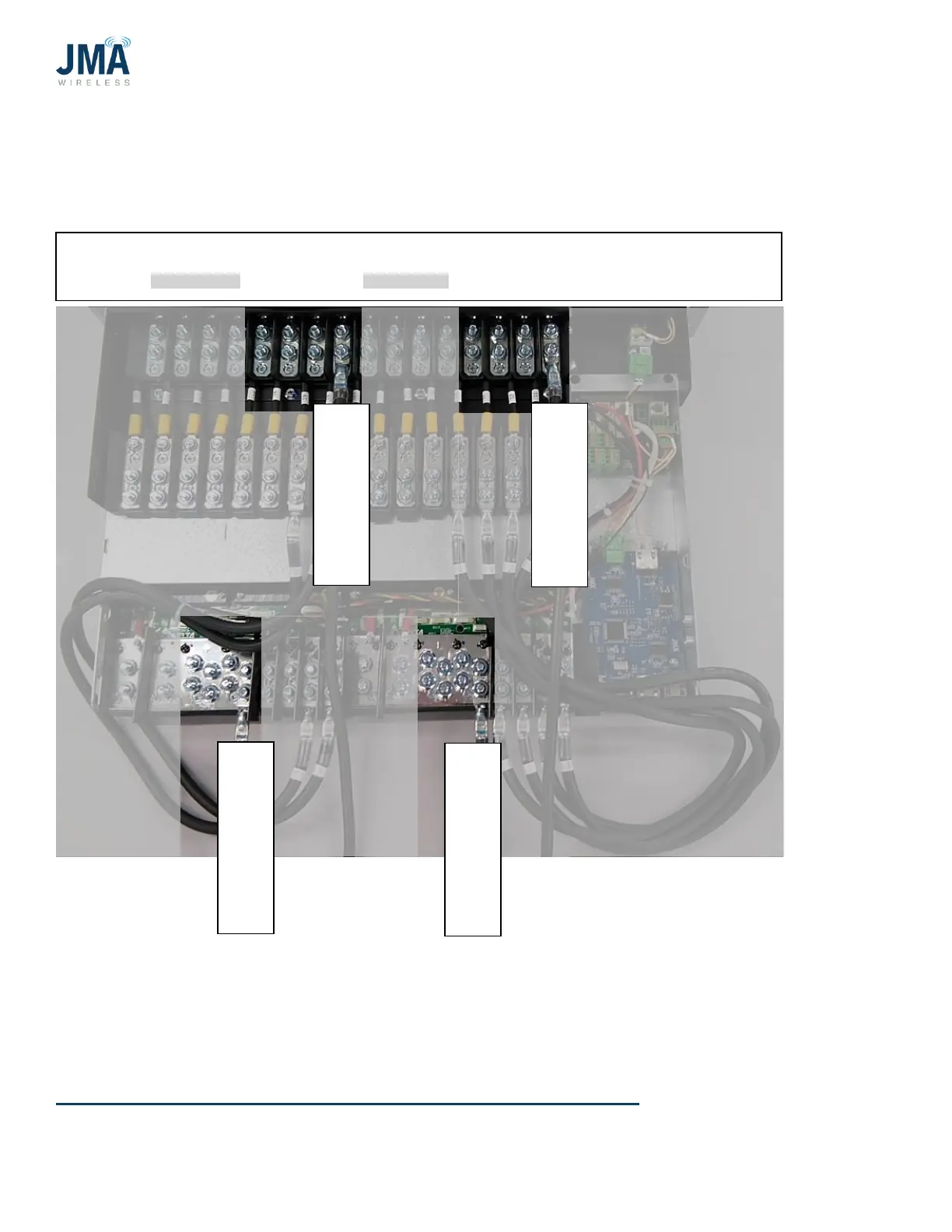

Photo below shows PB-19-SYS-8
• -48V connection is made at upper “OMM” shelf.
• Return connection is made at lower “boost” shelf.
Boost output #5
RETURN to
lower OVP CH5 RETURN
Note that -48V lug channel numbers progress as follows:
8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
Boost output #5
-48V to
lower OVP CH5
-48V input
Boost output #1
-48V to
lower OVP CH1
-48V input
Boost output #1 RETURN to lower OVP CH1 RETURN
