Jntech JNP75KH - Production Dimensions

8
Table2-2 Inverter appearance information table
No.
Name
Introductions
1
LCD display
screen
Man-machine interface, you can check the inverter
operating information through LCD display screen,
also can set some parameters of inverter.
2
Handle
Front door handle
3
Input Wire casing
Including DC input terminals(PV+/PV-)
4
Output wire casing
Including output(U、V、V、PE) terminals, water level
sensor wiring terminal, Pressure sensor terminal,
DC 24V and RS485 communication terminal.
5
Fan
Help machine heat dissipation.
6
Nameplate
Listed inverter parameters
2.2.2 Production Dimensions

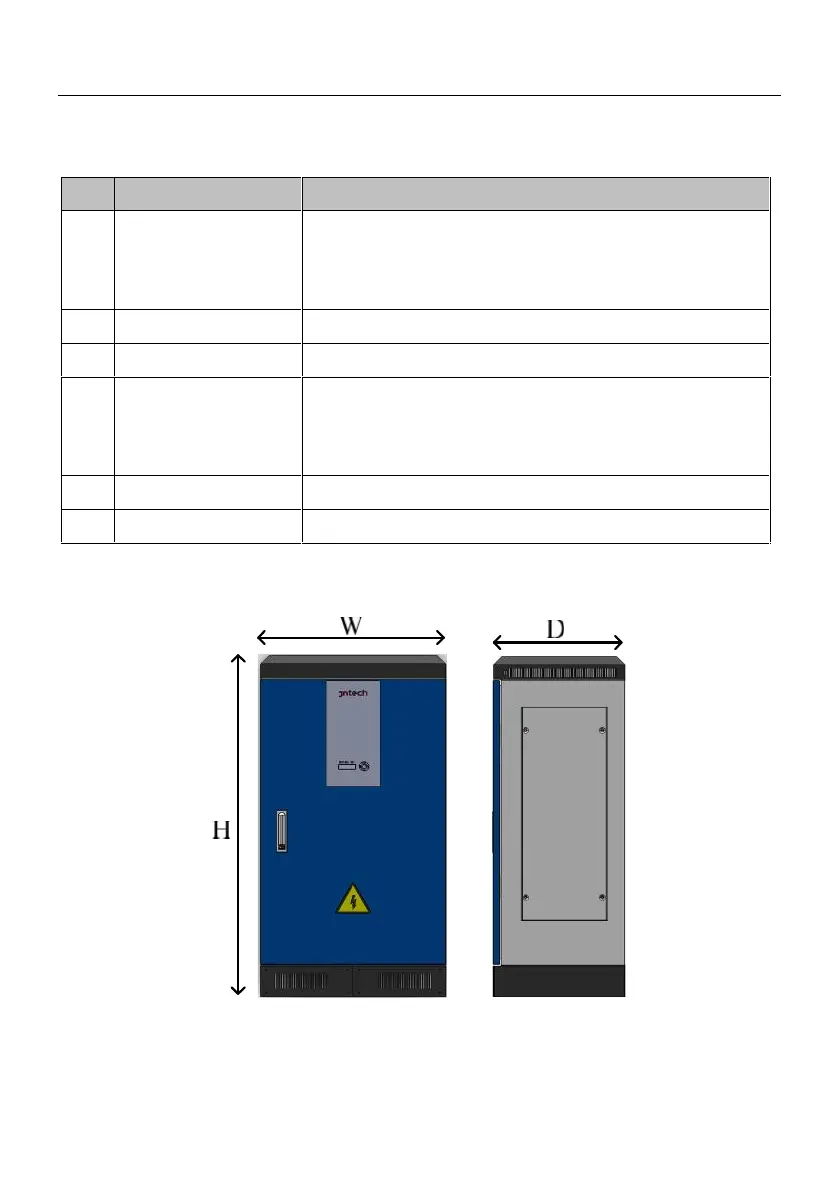

Figure2-3 Dimension drawing of Solar pumping inverter (unit : mm)
