8 LCD Panel Operating Instructions
8.1 Inverter LCD Display

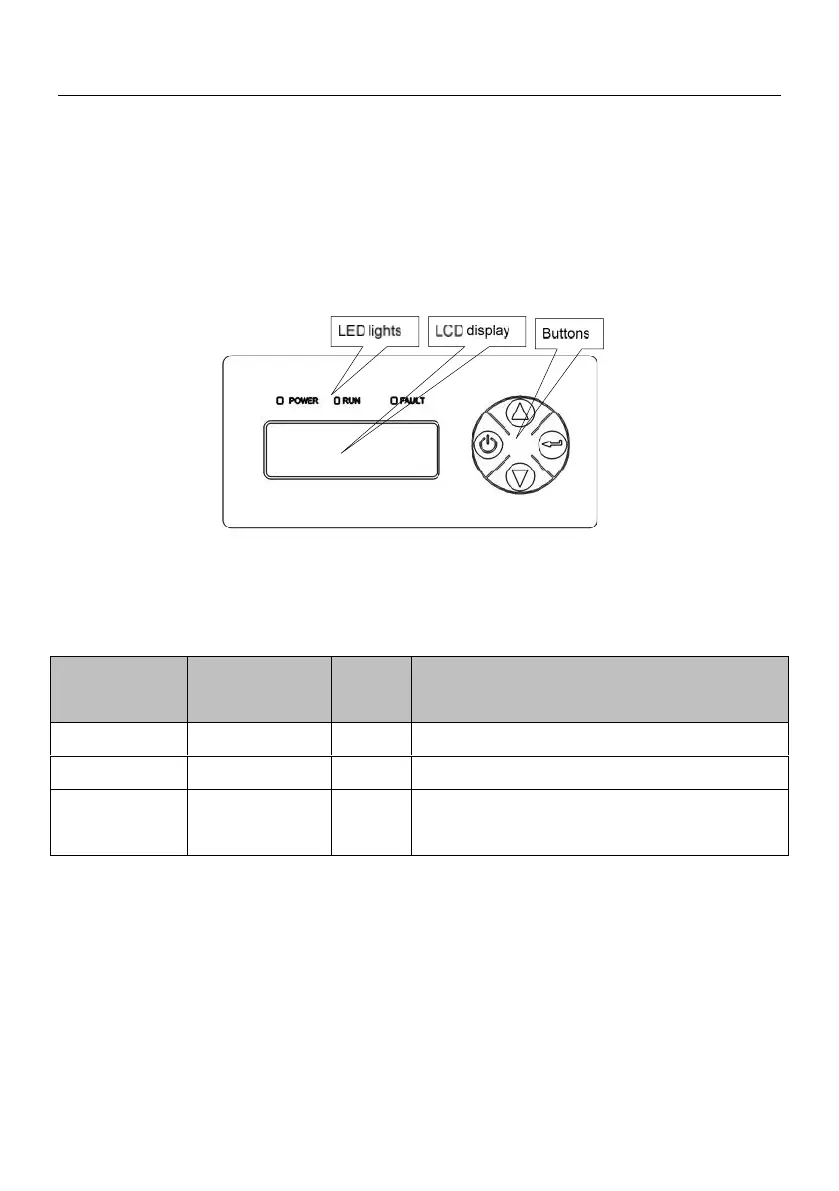

There have three LED lights, four buttons on the LCD Display, shown in figure
8-1.
Figure8-1 LCD Display
8.1.1 LED Indicator Direction
Table8-1 LED Indicator Direction
LED
Indicator
Name
Color
Instructions
POWER
Power light
Green
Light on When power on
RUN
Running light
Green
Light on under normal operation
FAULT
Faulty light
Red
Light on when error occur, off when fault
disappear
Detail Explanation of Indicator
● When inverter is powered up, “POWER” indicator (green) will be lighted.
● Communication fault occurs, “FAULT” indicator flashes rapidly.
● Other outage or shutdown mode occurs, “FAULT” indicator will be lighted,
until fault or status are cleared.
● When invert is running normally, “RUN” indicator will be lighted.
