22
Note！
● make sure PV arrays are same, including the model of PV module, number,
angle, azimuth, and connecting wires being with the same cross-sectional
area.
● Inspect every system carefully before installation.
Step1: Please connect the wire of the DC connector according to the following
Step2: Ensure that the DC-side PV combine box are in off state.
Step3: Ensure that the positive and negative poles of PV array are connected rightly.

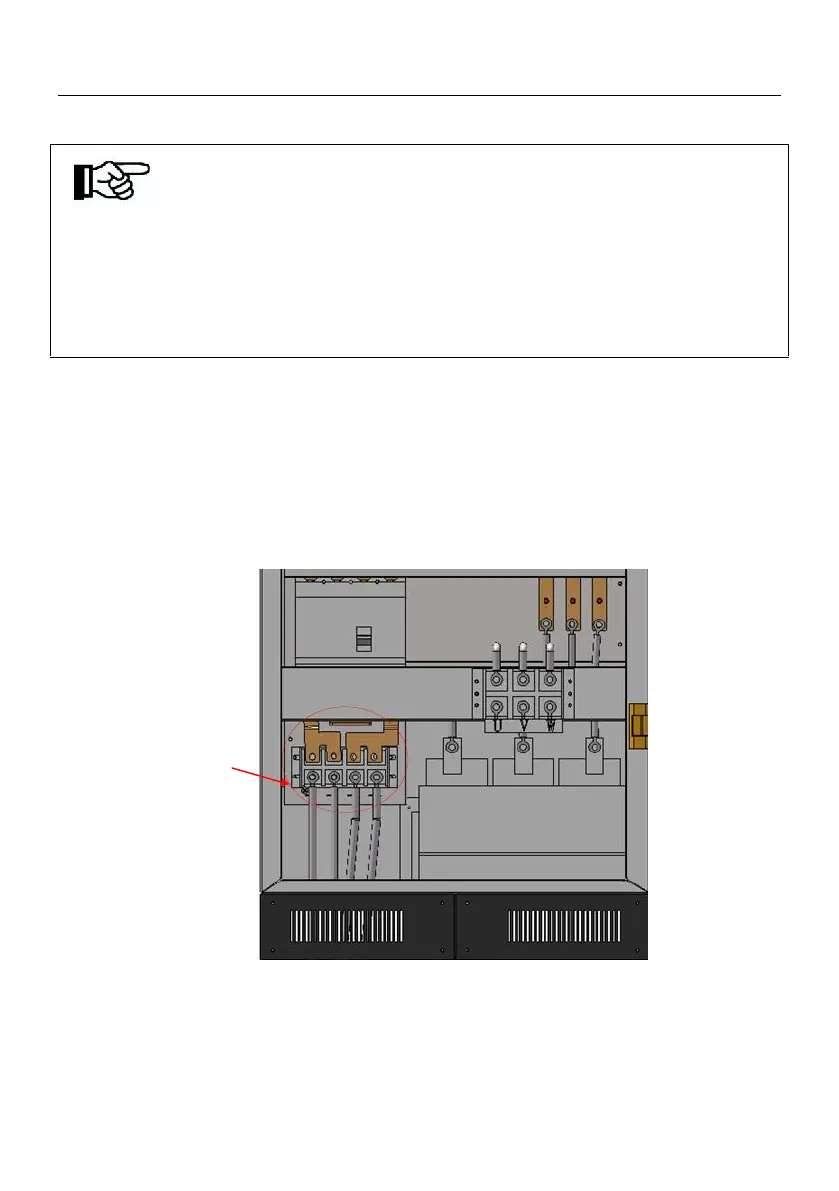

Step4: Plug the positive and negative connector into the corresponding
terminals at the bottom of the inverter respectively.
PV Cable
