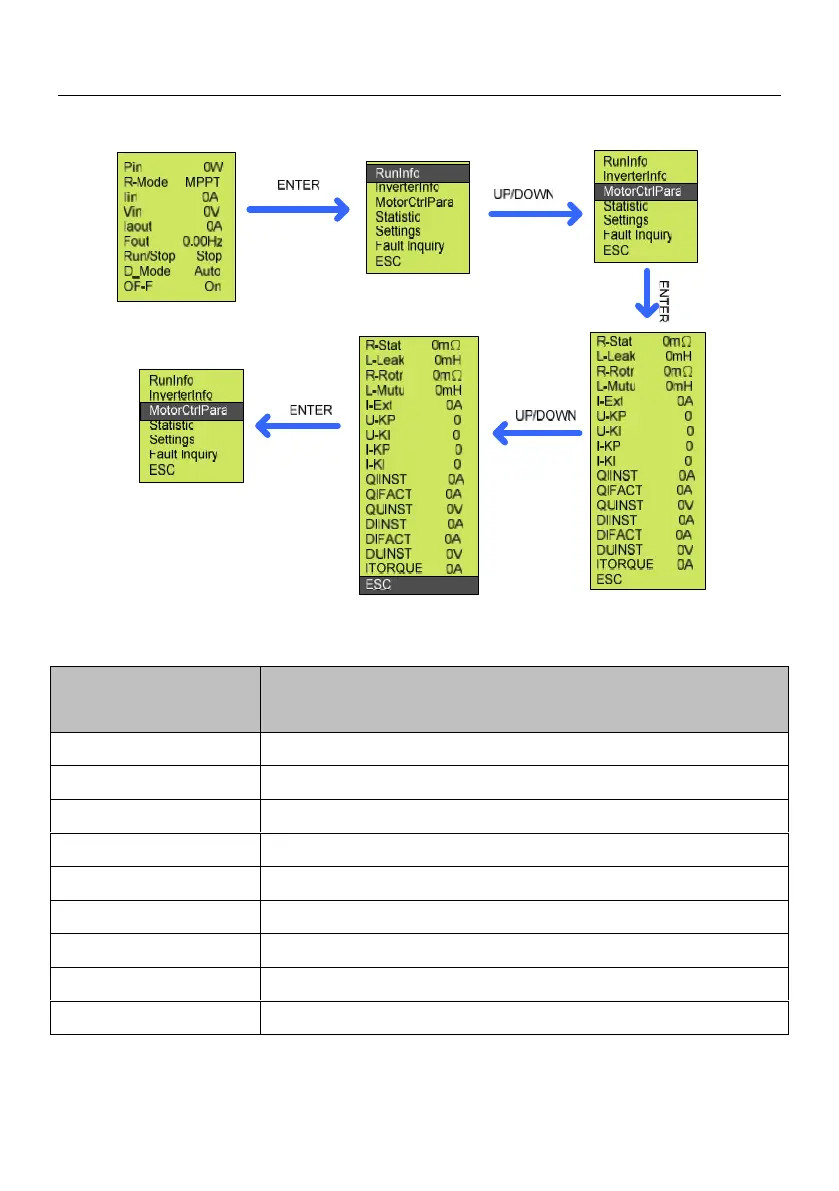

Figure8-8 Motor control parameter query step figure
Table 8-7 Motor control parameter list
Motor control
parameter
Instructions
R-Stat
Detected motor stator resistance
L-Leak
Detected motor leakage
R-Rotr
Detected motor rotor resistance
L-Mutu
Detected motor mutual inductance
I-Ext
Excitation current
U-KP
Proportional coefficient of voltage loop
U-KI
Voltage loop Integral coefficient
I-KP
Proportional coefficient of current loop
I-KI
Current loop Integral coefficient
