Joab Hookmaster User Manual

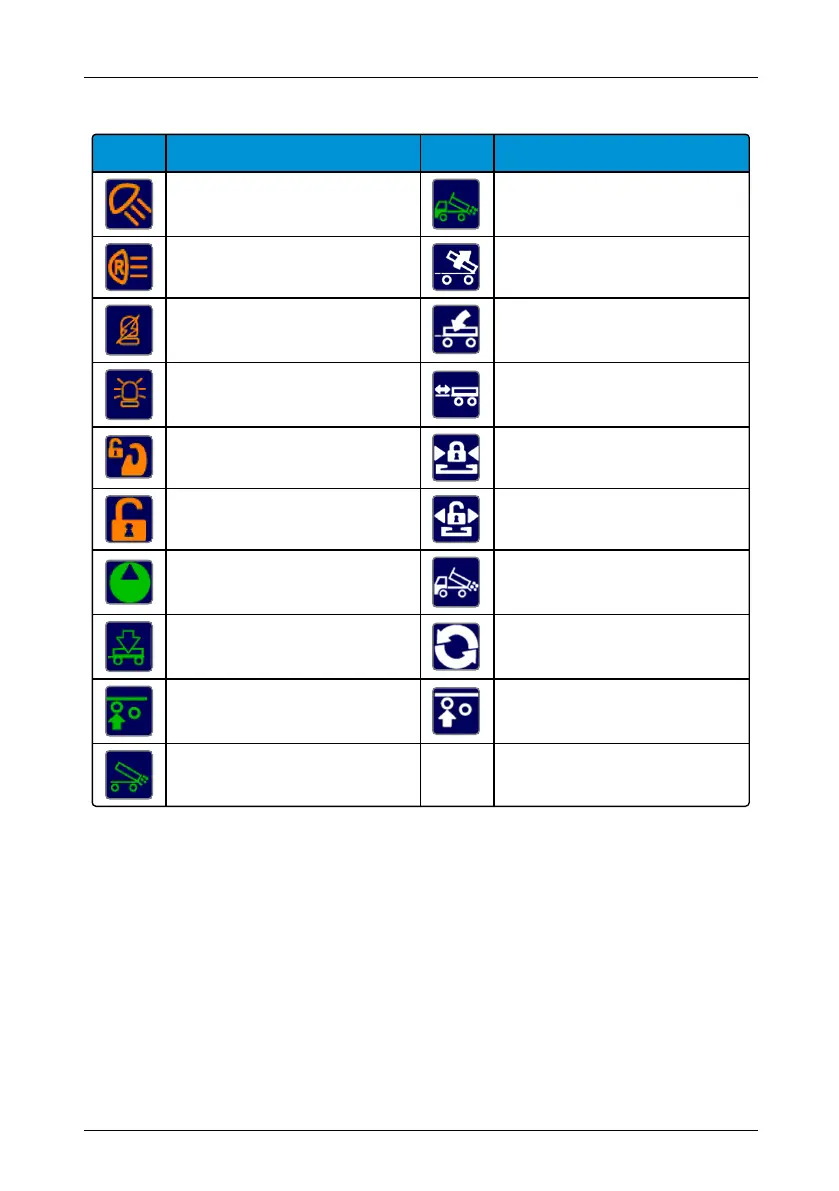

Icon Function Icon Function
Load light – ON Automatic flap – VEHICLE*
Reversing light – ON Tip trailer – UP*
Flashing light – ON Tip trailer – DOWN*
Red light – ON Draw bar*
Safety hook is OPEN* Hydraulic lock – LOCK
Hydraulic lock is OPEN Hydraulic lock – OPEN
Hydraulic pump (start/stop) Automatic flap – VEHICLE*
Skip loader – TRAILER*
Continuous hydraulic supply
(start/stop)*
Axle lift – TRAILER* Axle lift – TRAILER*
Automatic flap – TRAILER* --
Table 1: User interface – icon description (continued)
* Option: Not standard equipment.
Page Set-Ups
The user interface can display four different page set-ups, with different user defined functions.
The page set-ups are described in Table 2 below. Which page set-up is shown is indicated in the
display's lower right hand corner with one of the icons below (see "User Interface", on page 12).
13
Operation – Electrical Systems | CBW controller
Hookmaster manual: 13293 Edition 6 | 2021-02-22
