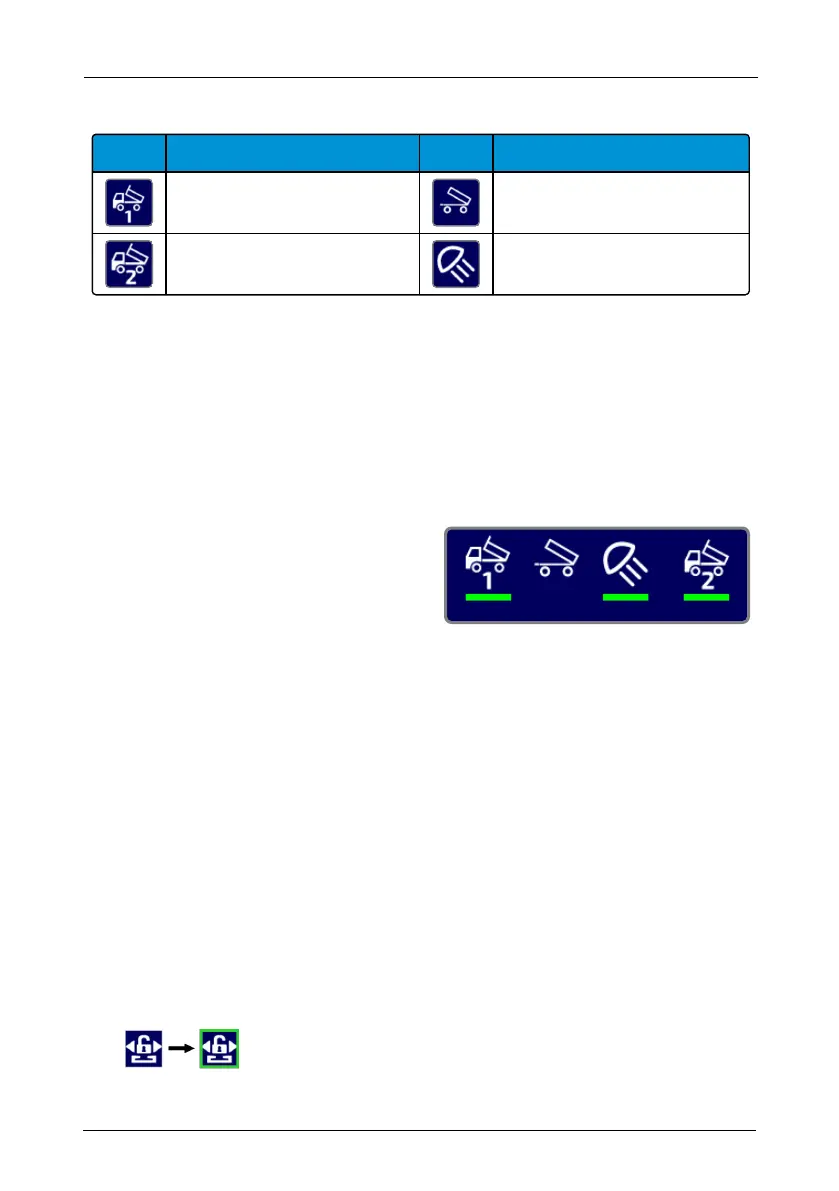

Icon Description Icon Description
Vehicle setup_1 Trailer setup
Vehicle setup_2 Lighting setup
To switch between these page set-ups, simply press either the left or right arrow button below
the display.
The number of page set-ups that are accessible via the left and right arrow buttons can be con-
figured as required (1–4 page set-ups). In the example shown below, three page set-ups are
selected, these are shown with a green rectangle below them. The three active page set-ups
will be visible when the left/right arrow buttons are pressed.
To configure which of the page set-ups are available when the left and right arrow buttons are
pressed, follow the procedure below:
1. Press and hold down the OK button and
press either the left or right arrow button
at the same time for a few seconds.
The screen will then display the menu
page options as shown.
2. Select the desired page set-up from those displayed and then press the OK button to either
activate it or deactivate it (active page set-ups have a green rectangle below them).
3. Press and hold down the OK button for a few second to save the new settings.
Function Buttons
Each of the four page set-ups in the user interface can be configured with six personal functions.
The icons for the selected functions are placed at the bottom of the user interface (shown in
white rectangles, see "User Interface", on page 12). These functions are activated by pressing
the corresponding function buttons below the screen: F1–F4 and the UP/DOWN arrow but-
tons.
To set the desired function associated with the function buttons, follow the procedure below:
1. Pressand hold the OK button while simultaneously pressing the function button that is to
be changed.
2. The current icon set for that function will be displayed with a green rectangle around it, as
shown below.
14
Operation – Electrical Systems | CBW controller
Hookmaster manual: 13293 Edition 6 | 2021-02-22
