Operation – Air Systems

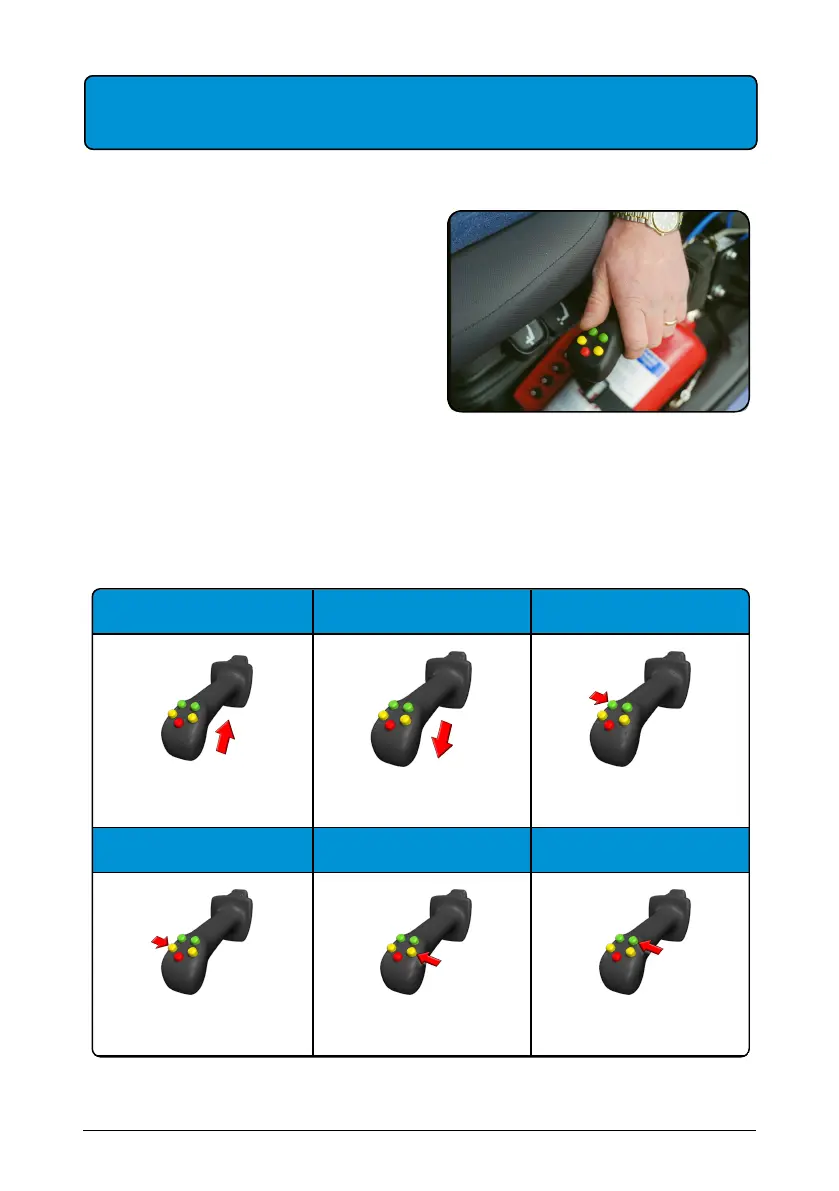

The hook-lift can be operated using a control
unit in the vehicle cab, or using a remote control
unit (radio control). The remote control unit is
an option. For more information, see "Radio
Controllers", on page 23.
The Hookmaster is operated using a controller,
which is located on the left-hand side of the
driver’s seat. A description of the different func-
tions follows.
Cab Mounted Control Unit
The operation of the seven button controller and the functions that its buttons have isdescribed
below. Note, two of the buttons are located on the underside of the controller.
Tip up Tip DOWN Sledge backwards
Pull the control unit upwards Push the control unit down Pressthe inner green button
Sledge forwards Hook-post forwards Hook-post backwards
Pressthe inner yellow button Pressthe outer yellow button Pressthe outer green button
Table 6: Pneumatic systems – control unit with 7 buttons
