John Bean EHP II-E - Machine Layout and Controls; Machine Component Layout

4-1
1
2
3
4
5
6
7
9
10
14
13
11
16
15
12
8
14 - EN
4 Layout

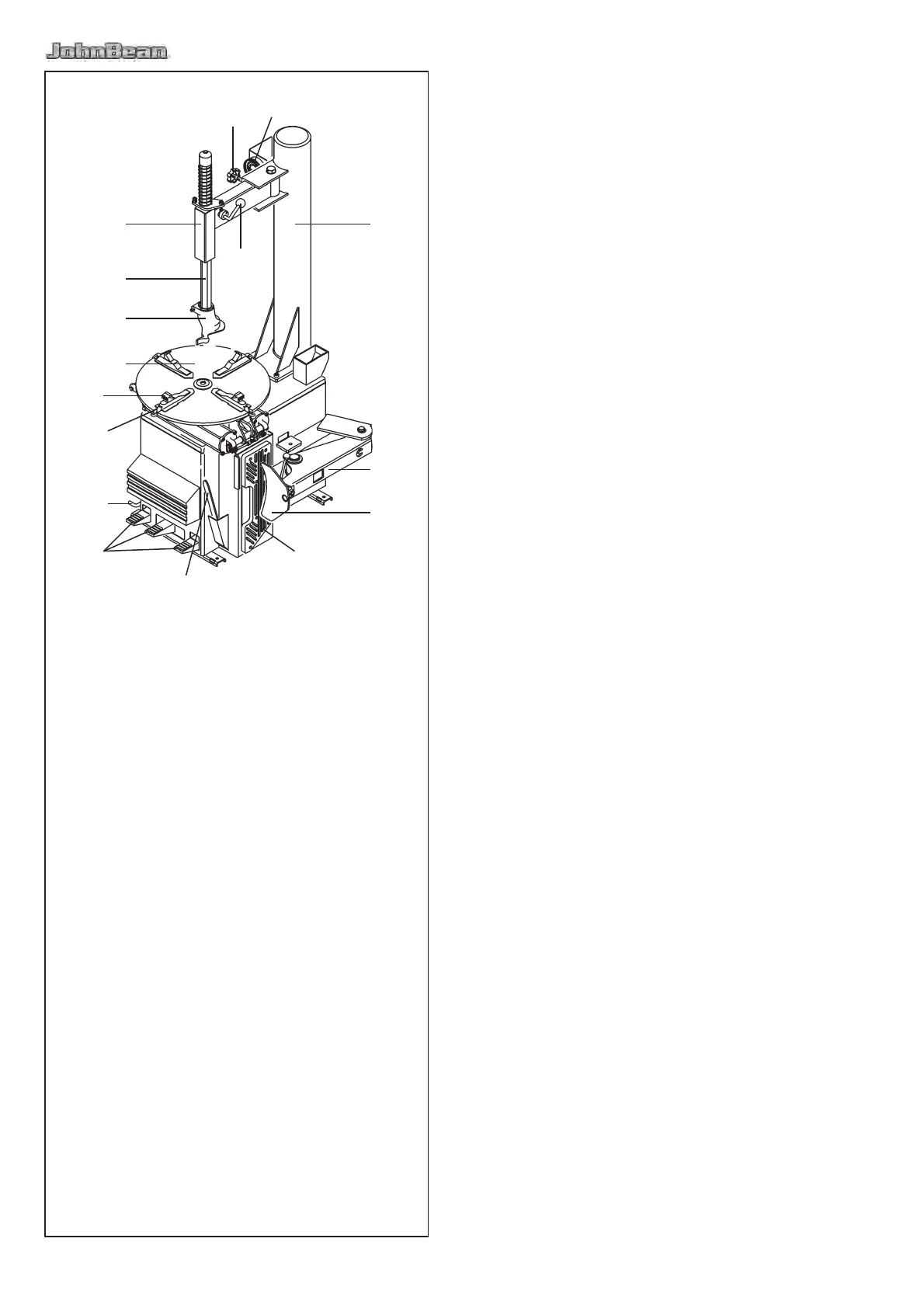

Refer to Figure 4-1.
Functional description of the unit:
1. V
ertical slide
2. Swing arm
3. Adjustment knob
4. Lock lever
5. Mount/demount tool or head
6. Tower or column
7. Turntable
8. Jaw or clamp
9. Bead breaker arm
10. Bead breaker blade
11. Bead breaker pad
12. Bead Lifting Tool
13. Foot pedal controls
14. Bead seater/in! ator pedal
15. In! ation gauge
16. Air Jets
