iii Installation procedures
Electric installation
THE INSTALLATION SHALL BE CARRIED OUT ONLY
BY QUALIFIED PERSONNEL AND WITHIN THE SCOPE
OF THE INSTRUCTIONS PROVIDED IN THIS MANUAL.
Check on the plate of the machine that the electrical
speci! cations of the power source are the same as the
machine.
The machine uses
115 VAC, 60 Hz Single Phase
1 phase motor.

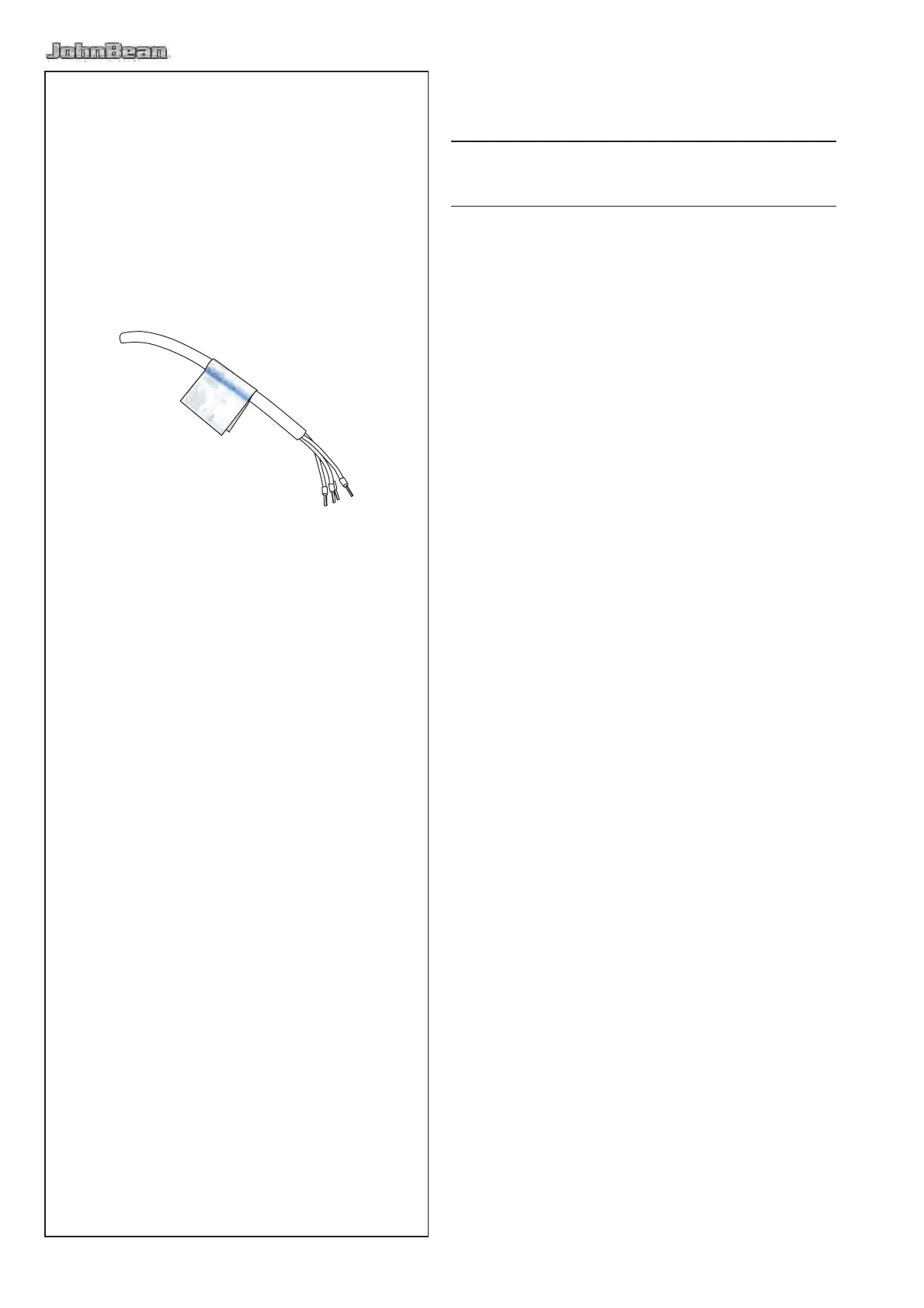

Electrical speci! cations are clearly marked on a label at
the end of the electric cable.
Before connecting the machine to the power source check
that the power supply has an ef! cient earthing system.
Connect the electric cable of the machine with an
approved plug.
Note: The outlet installation must be veri! ed by a
licensed electrician before connecting the tire
changer.
Note: The yellow/green wire in the cable is the earth
wire. Never connect the earth wire to a live
terminal.
Check that the power supply has an automatic circuit
breaker with a differential circuit rated at 30 mA.
The electric motor operates in a wide voltage range (plus
or minus 10%) and frequency range (60 Hz) and has a
class of insulation suitable for hot and moist climates.
