AcuAir Hygienic Air Units
Installation
CAULK
SHIPPING
SPLIT
CAULK
CAULK
CAULK
SHIPPING
SPLIT COVER
SHIPPING SPLIT COVER
CAULK ALONG RECONNECT
HOLE LOCATION
CAULK
SHIPPING SPLIT
DETAIL A
DETAIL B
Acceptable Polyurethane Caulking:
Manus-bond, Gray, P/N 013-02966-001
Manus-bond, Champagne, P/N 013-03317-220
Bostik, Gray, P/N 013-03318-170
Bostik, Champagne, P/N 013-03319-170

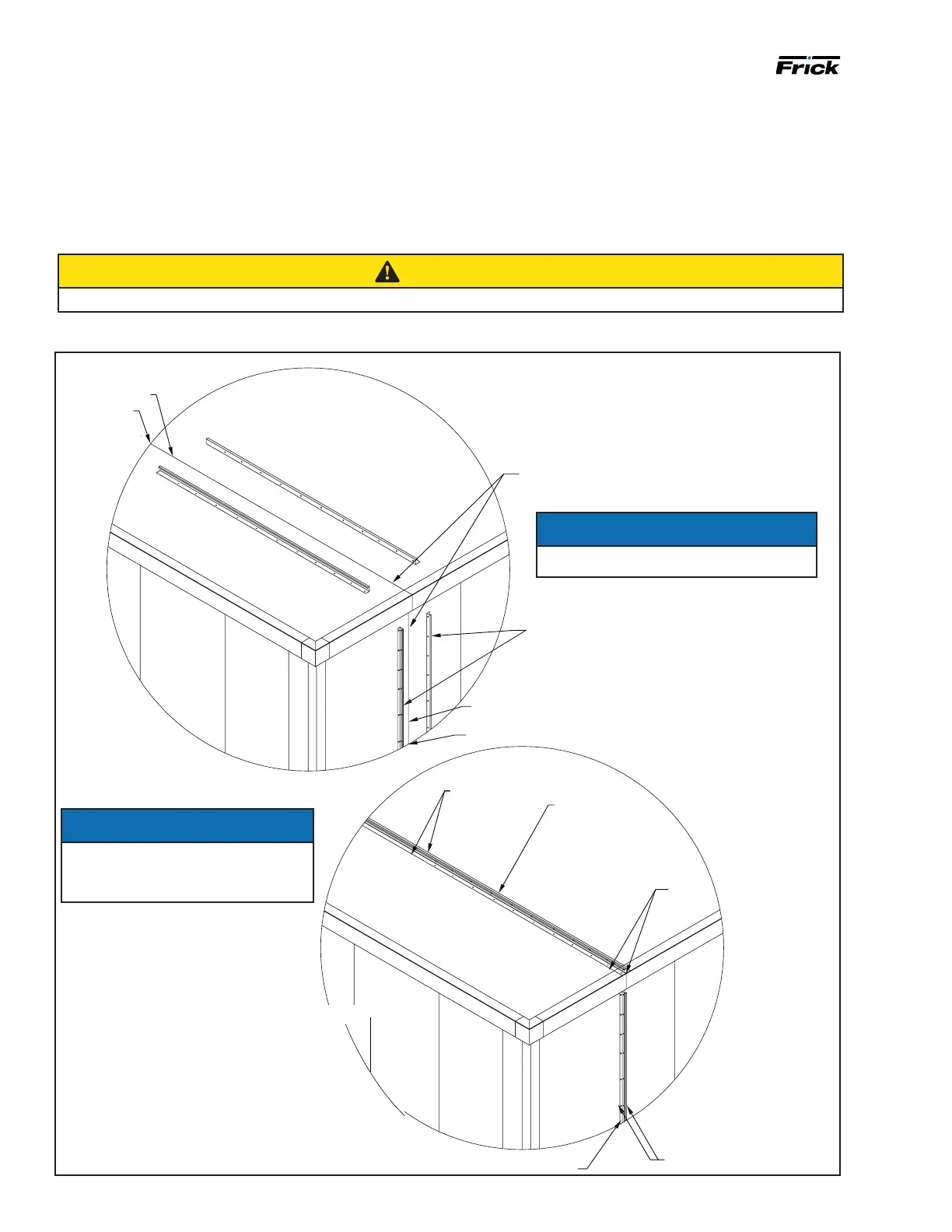

Figure 18: Split reassembly procedure for AcuAir Food Grade and Sanitary Series Units only
Note:
• Do not apply roof coating when inclement weather is
imminent within a 24 hr period.
• Do not apply to wet, ice, or snow covered surfaces.
3. Before applying, clean surface with wire brush or sol-
vent wipe, which are not provided.
4. Apply Acu-Shield roof coating with a good quality syn-
thetic bristle paintbrush (not provided).
5. One quart applied at 45 ml is equal to a 3 in. wide x
33 ft long section.
6. Cure time varies with temperature and humidity. Under
normal conditions, a rubber coating can be expected
within a 24 hr period.
CAUTION
DO NOT use silicone caulking on eld reconnects or on shipping split covers.
NOTICE
Only use caulking shipped with unit.
NOTICE
Shipping split attachment angles
come attached to each side of split.
Reattach with provided hardware.
Acceptable Polyurethane Caulking:
Manus-bond, Gray
Bostik, Gray
