210.100-IOM (JUL 2021)
Page 10
AcuAir Hygienic Air Units
Installation

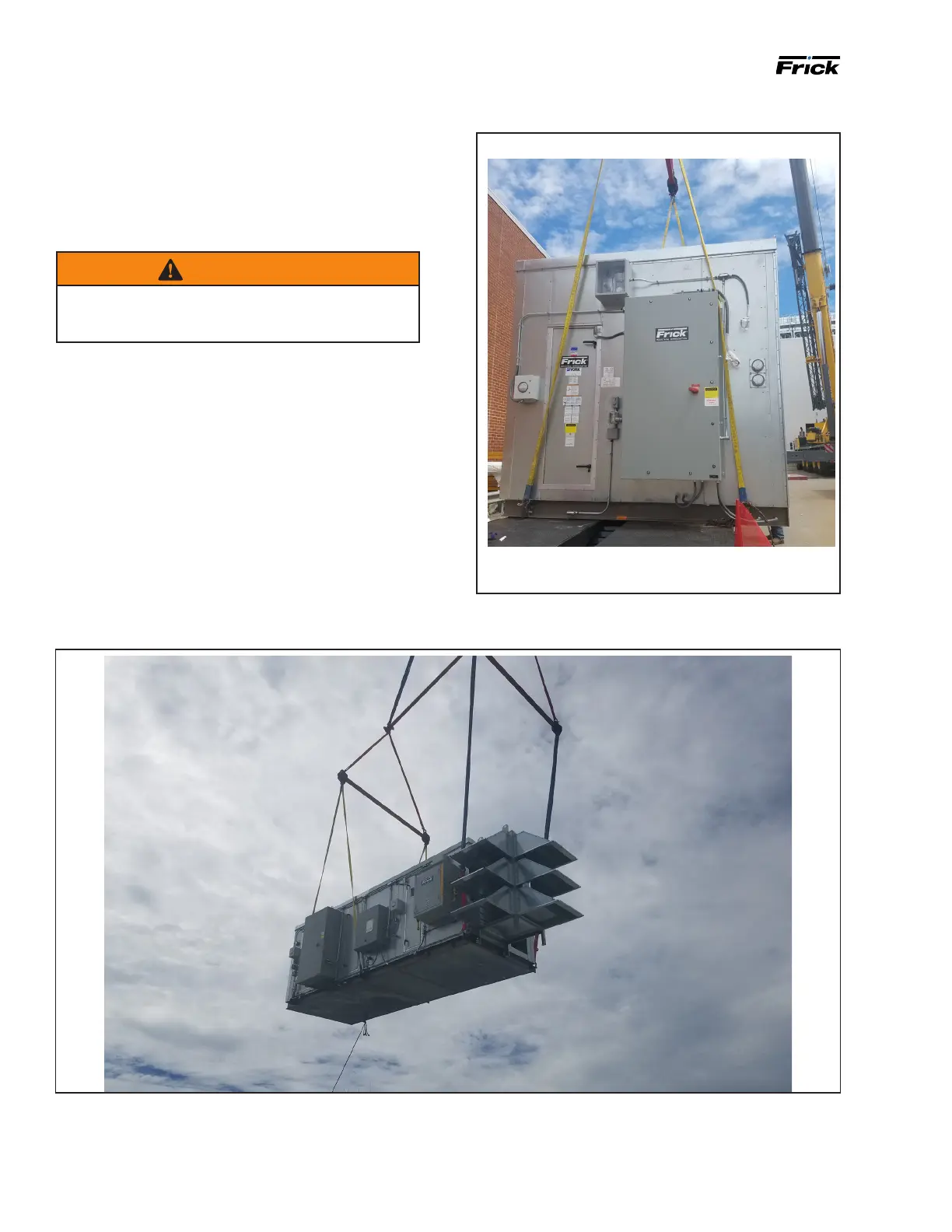

Figure 3: Standard lifting with four lifting points
Figure 4: Standard lifting with multiple points
See forms 210.100-SB1, 210.100-SB2, and 210.100-
SB3 for long-term storage details and the delay of war-
ranty commencement.
Lifting and handling
The unit ships (as specied on unit submittal) either as-
sembled, as a subassembly (collection of parts), or as
individual sections.
WARNING
When lifting individual AcuAir
®
sections, weight may
not be evenly distributed causing the section to be
unbalanced or top heavy.
To prepare for safely lifting the air unit, estimate the ap-
proximate center of gravity. Internal placement of com-
ponents may cause the weight to be unevenly distributed,
with more weight in the coil and fan areas.
Removable lifting lugs are provided to rig the unit/sections
into place. Spreader bars are required to prevent dam-
age to the cabinet and protruding components during a
lift. The lugs are positioned at the face of the sections to
facilitate lifting the sections at the factory for securing on
truck trailers. Lifting lugs can be relocated to sides of the
individual sections to facilitate placement on site supports.
Use all lifting lugs provided. Adjust the tension in each line
for correct load distribution. See Figure 3 and Figure 4 for
suggested lifting.
