Johnson Controls GVB Series User Manual

Johnson Controls
5586996-JSG-A-0120 | Start-Up & Operation Guide
32

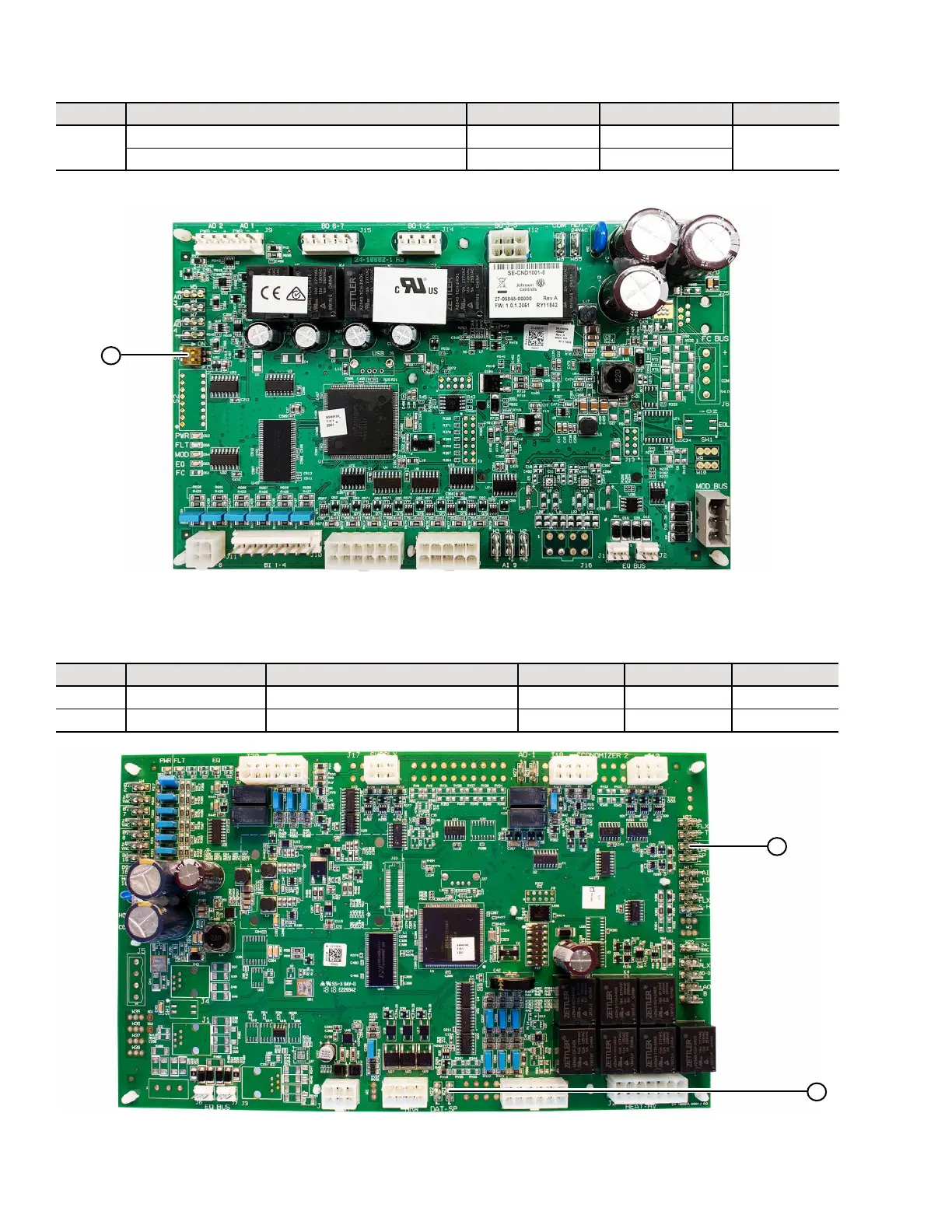

Table 14: Condenser Boards Field Terminal Points
Callout Description 1-bit Position 2-bit Position Pin
1
Condenser Board 1 DIP Switch OFF OFF
S4
Condenser Board 2 DIP Switch ON ON
NOTE: There are two condenser boards installed. On the control board panel, condenser board 1 is above board 2.
1
LD27998
Figure 6: Condenser Boards
Table 15: Options Board Field Terminal Points
Callout Name Description IO Type IO Number Pin
1 DAP-SP Discharge Air Static Pressure Setpoint AI 7 W25
2 DAT-SP Discharge Air Temperature Setpoint AI 8 W21
1
2
LD27996
Figure 7: Options Board
