Johnson Controls YORK YMC2 Installation Manual

JOHNSON CONTROLS
15
SECTION 2 - INSTALLATION
FORM 160.78-N1
ISSUE DATE: 5/30/2012
2
UNIT WEIGHT 15,001 - 29,000 Lbs (6,805 - 13,154 Kgs)
LD12641
UNIT WEIGHT UP TO 5,500 Lbs (2,494 Kgs)
LD12638
UNIT WEIGHT 5,501 - 8,000 Lbs (2,495 - 3,628 Kgs)
LD12639
UNIT WEIGHT 8,001 - 15,000 Lbs (3,629 - 6,804 Kgs)
LD12640

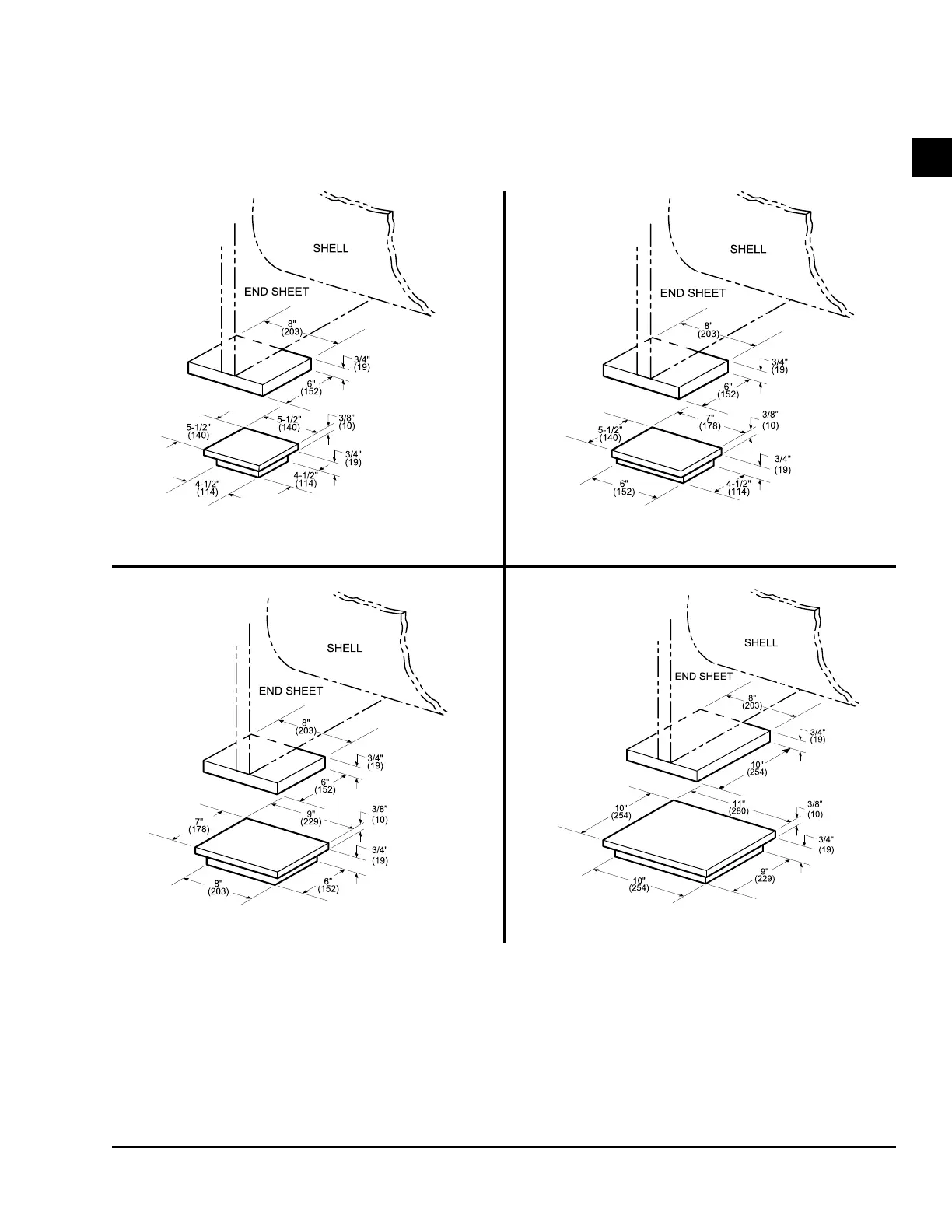

FIGURE 3 - NEOPRENE ISOLATORS
NOTE: Dimensions are shown in Inches (mm)

Johnson Controls YORK YMC2 Specifications

General

Brand	Johnson Controls
Model	YORK YMC2
Category	Chiller
Language	English
