SECTION 3 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
COMPACT WATER BOXES-150 PSI
Condenser
Shell Code
Nozzle Pipe Size In (mm) Condenser Nozzle Dimensions Ft-In (mm)
No. of Passes
C
1-Pass 2-Pass 3-Pass
1 2 3 AA
5
AA
5
BB
5
AA
5
BB
5
CA21 10" (254) 6" (152) 6" (152) 1' - 3-1/2" (394) 1' - 11-1/2" (597) 1' - 5" (432) 2' - 6" (762) 1' - 5" (432) 2' - 6" (762)
CA25 12 (305) 8" (203) 6" (152) 1' - 3-1/2" (394) 2' - 1-1/2" (648) 1' - 5-7/8" (454) 2' - 9-1/8" (841) 1' - 5-7/8" (454) 2' - 9-1/8" (841)
NOTE: Dimensions are shown in Inches (mm)
LD14008
LD14011
LD14010
LD14009

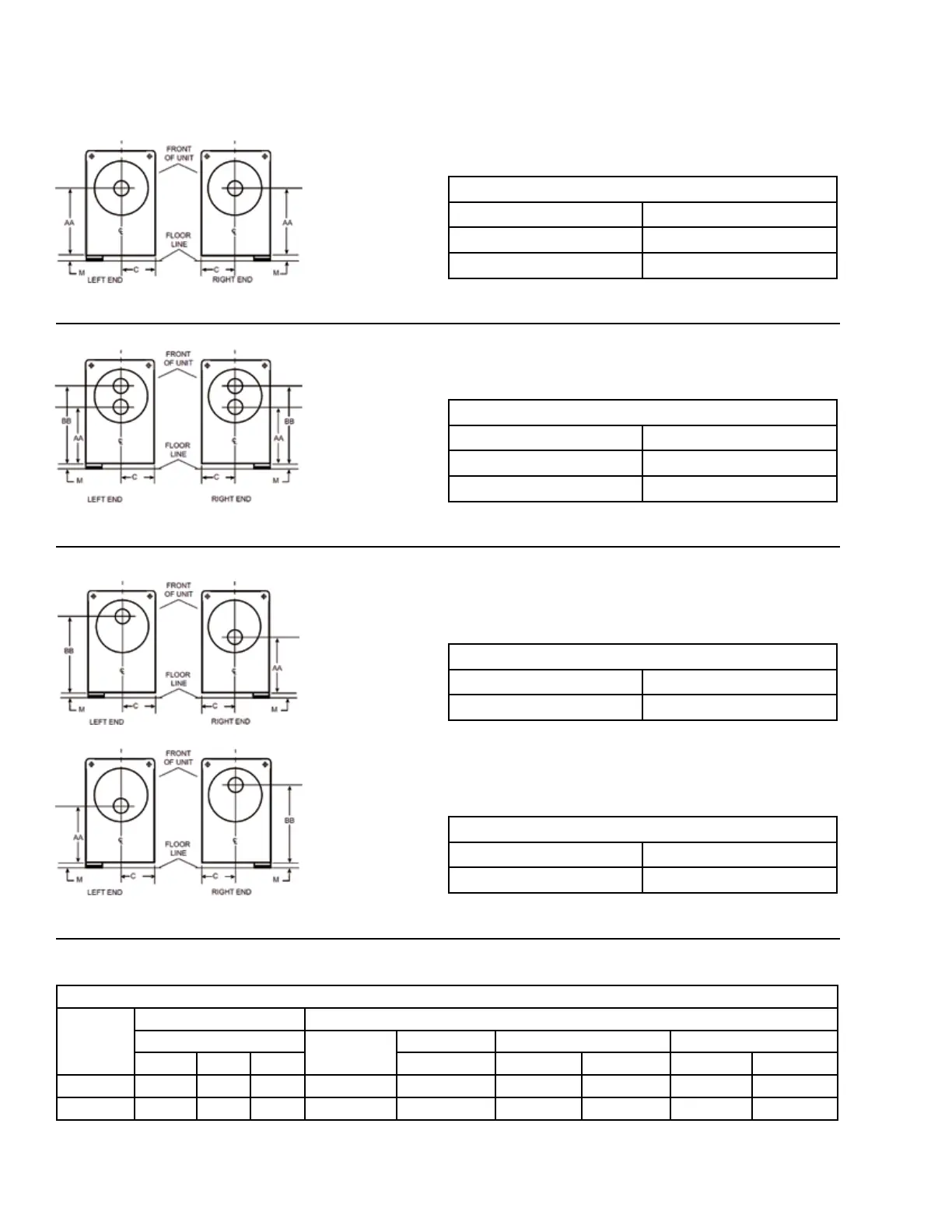

CONDENSER NOZZLE ARRANGEMENTS (150 PSI COMPACT WATER BOXES)
1-Pass Condenser Nozzle Arrangements
In Out
Left End Right End
Right End Left End
FIGURE 16 - CONDENSERS - COMPACT WATER BOXES (1-PASS NOZZLE ARRANGEMENTS)
FIGURE 17 - CONDENSERS - COMPACT WATER BOXES (3-PASS NOZZLE ARRANGEMENTS)
2-Pass Condenser Nozzle Arrangements
In Out
Lower Right End Upper Right End
Lower Left End Upper Left End
3-Pass Condenser Nozzle Arrangements
In Out
Right End Left End
3-Pass Condenser Nozzle Arrangements
In Out
Left End Right End
FIGURE 18 - CONDENSERS - COMPACT WATER BOXES (2-PASS NOZZLE ARRANGEMENTS)
