SECTION 3 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
COMPRESSOR UNIT DIMENSIONS
Additional Operating Height Clearance To Floor Ft - In (mm)
Type Of Chiller Mounting M
Neoprene Pad Isolators 1 - 3/4" (45)
Spring Isolators 1" Deection 1" (25)
Direct Mount 3/4" (19)

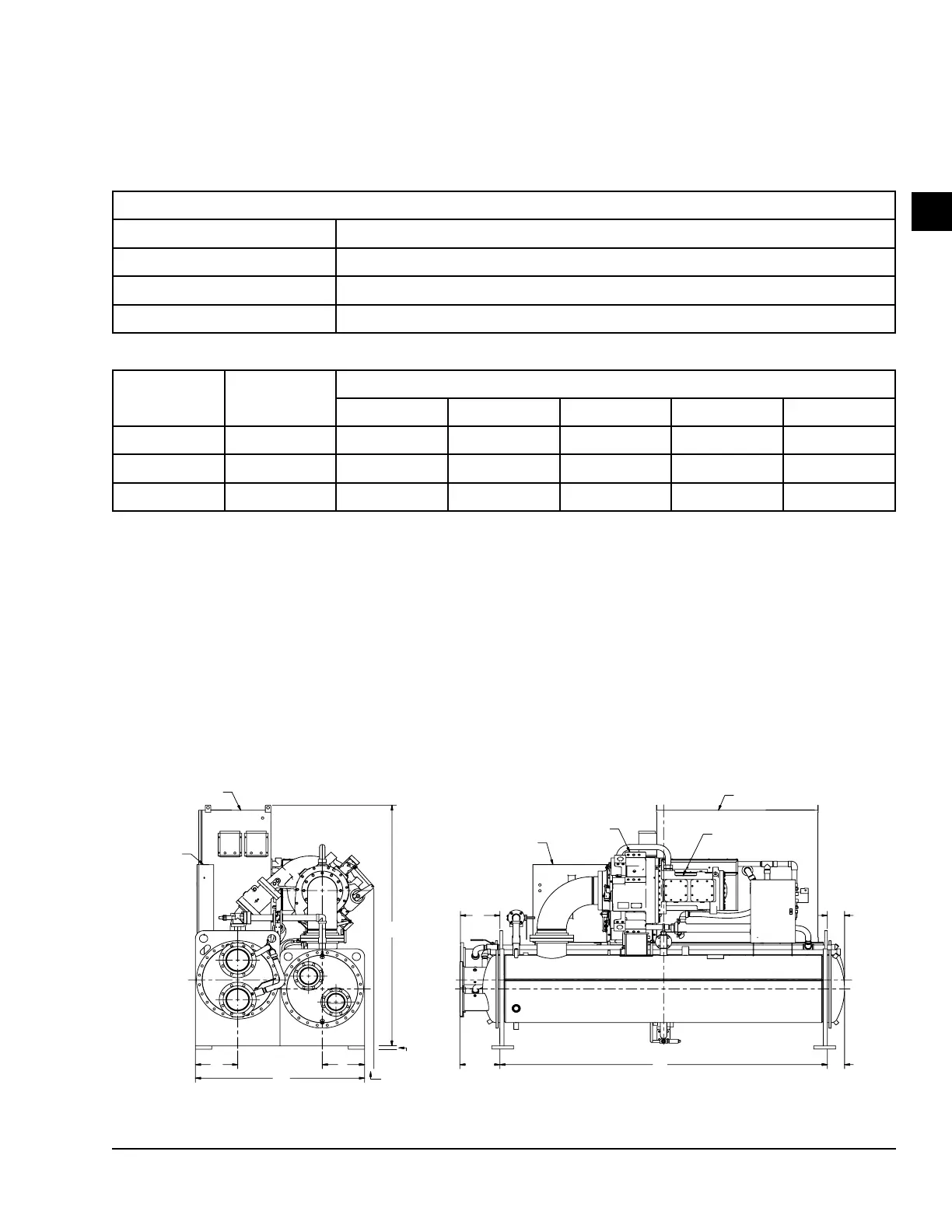

FIGURE 11 - DIMENSIONS – 197 & 205 COMPRESSOR UNITS FT-IN (MM)
A
CD
M
3-3/8”
F
(EVAP. )
(EVAP. )
J
MOTOR
VSD
COMPRESSOR
CONTROL
PANEL
H
B
VSD
CONTROL
PANEL
LD07134
EVAPORATOR
CODE
CONDENSER
CODE
DIMENSIONS - 197 & 205 COMPRESSOR UNITS FT - IN (MM)
A B C D E
EA2510 CA2110 5’ - 5” (1651) 7’ - 4” (2235) 1’ - 3-1/2” (394) 1’ - 3-1/2” (394) 10’ - 0” (3048)
EA2510 CA2510 5’ - 5” (1651) 7’ - 9” (2362) 1’ - 3-1/2” (394) 1’ - 3-1/2” (394) 10’ - 0” (3048)
EA2514 CA2514 5’ - 5” (1651) 7’ - 9” (2362) 1’ - 3-1/2” (394) 1’ - 3-1/2” (394) 14’ - 0” (4267)
NOTES:
1. All dimensions are approximate. Certied dimensions are available on request.
2. Standard water nozzles are Schedule 40 pipe size, furnished as welding stub-outs with ANSI/AWWA C-606 grooves, allowing the option
of welding, anges, or use of ANSI/AWWA C-606 couplings. Factory-installed, class 150 (ANSI B16.5, round slip-on forged carbon steel
with 1/16" raised face), water anged nozzles are optional (add 1/2" to nozzle length). Companion anges, nuts, bolts, and gaskets are
not furnished.
3. One, two, and three-pass nozzle arrangements are available only in pairs shown for all shell codes. Any pair of evaporator nozzles may
be used in combination with any pair of condenser nozzles Compact water boxes on one heat exchanger may be used with Marine Water
Boxes on the other heat exchangers.
4. Condenser water must enter the water box through the bottom connection for proper operation of the sub-cooler to achieve rated perfor-
mance.
5. To determine overall height, add dimension "M" for the appropriate isolator type.
