2. The primary differences between printers involve the formatting control codes required by the
printer. These codes are sent from the Control Center to the printer. For example, Weigh-Tronix
printers require a control code to select 40 column width. This same code is interpreted by the
OKI Data printer as an instruction to print wide characters. In some instances, a printer will
ignore a code it cannot interpret.
3. The Control Center requires a busy signal from the printer when the printer receive buffer is
full. This causes the Control Center to momentarily terminate data transmission until the printer
can accept more data. The busy signal polarity must be asserted low when busy.
OKI Data
Models: OKIPOS 441
• Dimensions: 6.9 in. wide x 9.64 in. deep x 5.98 in. high
• Paper: 3.0 in. wide
• Type: Dot Matrix Impact
• Purchase: 800-OKI Data Spare printer Ribbon Okidata 52119001 Black
• P/N Charcoal P/N 62113901 Beige P/N 62113601

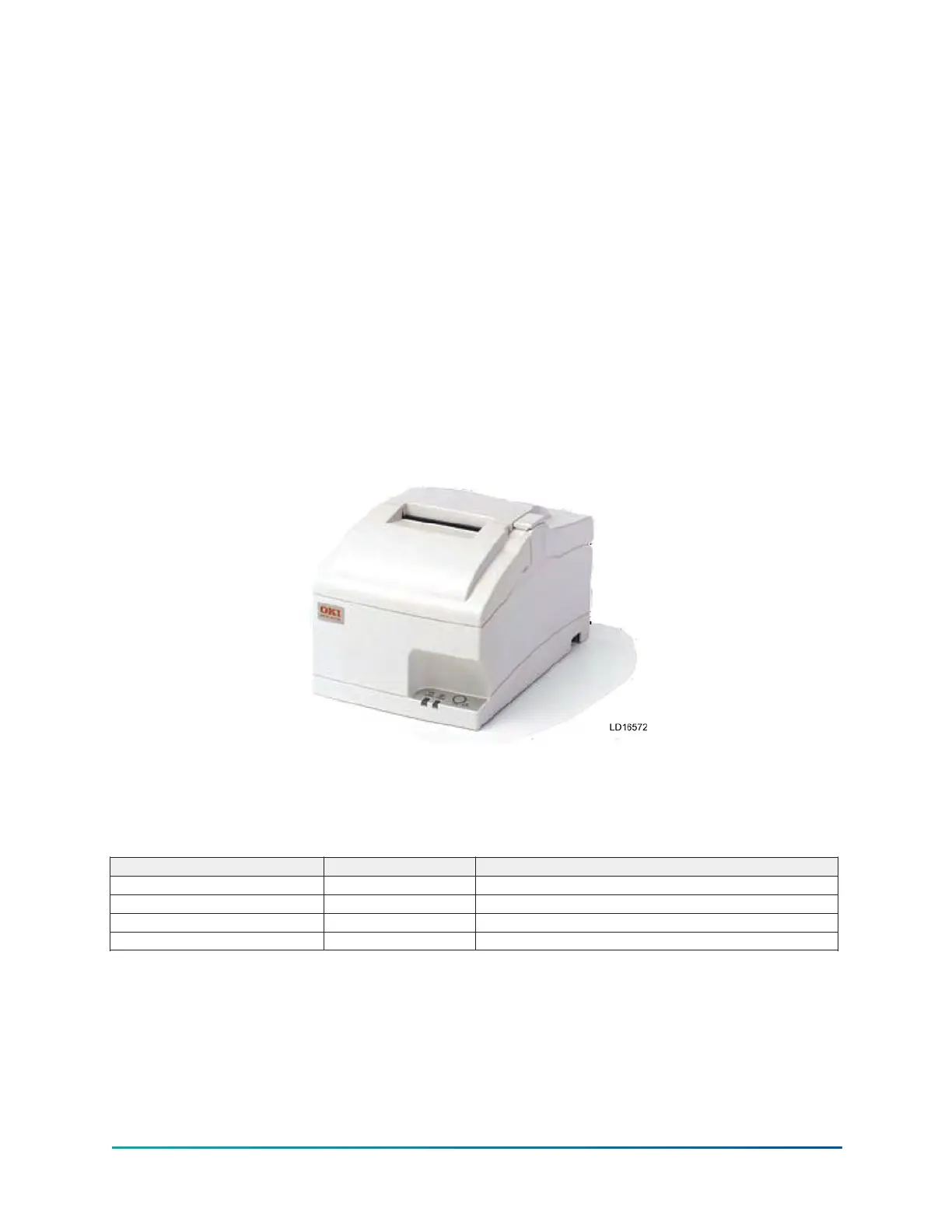

Figure 76: OKIPOS printer
Printer connections
Connect the printer to the Control Center Microboard as follows. Only one printer can be connected
at a time.
Table 106: Okidata OkiPos 441
Microboard Printer Function
J2-4 pin 3 Tx (data to printer)
J2-2 pin 20 DSR (busy signal from printer)
J2-9 pin 7 Gnd
Cabinet Shield
The following hardware is required:
• Cable: #18 AWG stranded 50 ft. maximum length
The following connectors are required:
• Microboard: None. Strip 1/4 in. insulation from wire and insert into screw terminal block.
• Printers: OKI Data - 25 pin plug DB-25P or equivalent; Shell DB-C2-J9 or equivalent.
163
